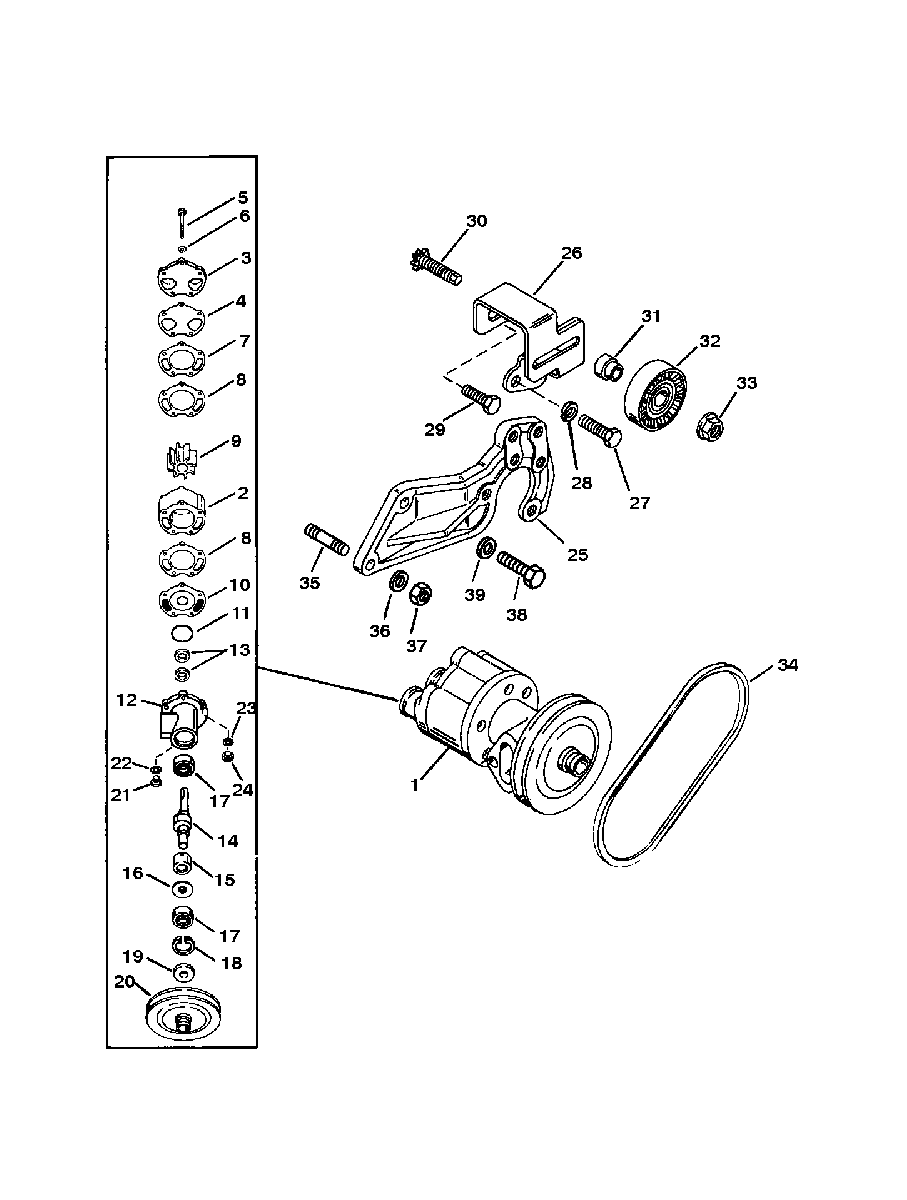

SEA WATER PUMP для Mercruiser - 454 MAG. MPI (SKI) GEN. VI GM 454 V-8 1996-1997 0F820100 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    46-807151A8 PUMP ASSEMBLY-Seawater
    PUMP ASSEMBLY-Seawater
  • 2
    46-72774A40 BODY-Water Pump
    BODY-Water Pump
  • 3
    87631A4 COVER-Water Pump
    COVER-Water Pump
  • 4
    27-8052151 GASKET-Cover to Outer Wear Plate
    GASKET-Cover to Outer Wear Plate
  • 5
    10-99347 SCREW (5/16-18 x 3-3/4 in.)
    SCREW (5/16-18 x 3-3/4 in.)
  • 6
    12-20084 WASHER
    WASHER
  • 7
    94916 WEAR PLATE (Outer)
    WEAR PLATE (Outer)
  • 8
    27-94914 GASKET-Body to Wear Plate
    GASKET-Body to Wear Plate
  • 9
    47-59362T1 IMPELLER
    IMPELLER
  • 10
    94576 WEAR PLATE (Inner)
    WEAR PLATE (Inner)
  • 11
    25-94288 QUAD RING
    QUAD RING
  • 12
    818367A1 HOUSING ASSEMBLY-Water Pump
    HOUSING ASSEMBLY-Water Pump
  • 13
    26-90562 SEAL-Oil
    SEAL-Oil
  • 14
    818366A1 SHAFT ASSEMBLY-Water Pump
    SHAFT ASSEMBLY-Water Pump
  • 15
    818745A1 RING-Slip
    RING-Slip
  • 16
    12-89664 WASHER
    WASHER
  • 17
    30-72961 BEARING-Ball (Water Pump Shaft)
    BEARING-Ball (Water Pump Shaft)
  • 18
    53-23720 RING-Retaining
    RING-Retaining
  • 19
    26-806930 SEAL-Oil
    SEAL-Oil
  • 20
    818365T PULLEY
    PULLEY
  • 21
    10-79953Q04 SCREW KIT-Drain
    SCREW KIT-Drain
  • 22
    12-191833 WASHER-Seal
    WASHER-Seal
  • 23
    13-39107 LOCKWASHER (5/16 in.)
    LOCKWASHER (5/16 in.)
  • 24
    11-21908 NUT (5/16-18)
    NUT (5/16-18)
  • 25
    818368T1 BRACKET-Seawater Pump
    BRACKET-Seawater Pump
  • 26
    818379T BRACKET-Idler
    BRACKET-Idler
  • 27
    10-76926 SCREW (3/8-16 x 7/8 in.)
    SCREW (3/8-16 x 7/8 in.)
  • 28
    13-35048 LOCKWASHER (3/8 in.)
    LOCKWASHER (3/8 in.)
  • 29
    10-17965 SCREW (7/16-14 x 11/16 in.)
    SCREW (7/16-14 x 11/16 in.)
  • 30
    43-8M0113182 STUD-Pinion
    STUD-Pinion
  • 31
    865193 BUSHING-Idler Pulley
    BUSHING-Idler Pulley
  • 32
    8M6500024 PULLEY-Idler
    PULLEY-Idler
  • 33
    11-859135 NUT (7/16-20)
    NUT (7/16-20)
  • 34
    57-69143Q V-BELT
    V-BELT
  • 35
    16-806591 STUD
    STUD
  • 36
    13-32993 LOCKWASHER (7/16 in.)
    LOCKWASHER (7/16 in.)
  • 37
    11-22024 NUT (7/16-14)
    NUT (7/16-14)
  • 38
    10-47462 SCREW (7/16-14 x 1-1/4 in.)
    SCREW (7/16-14 x 1-1/4 in.)
  • 39
    13-32993 LOCKWASHER (7/16 in.)
    LOCKWASHER (7/16 in.)
