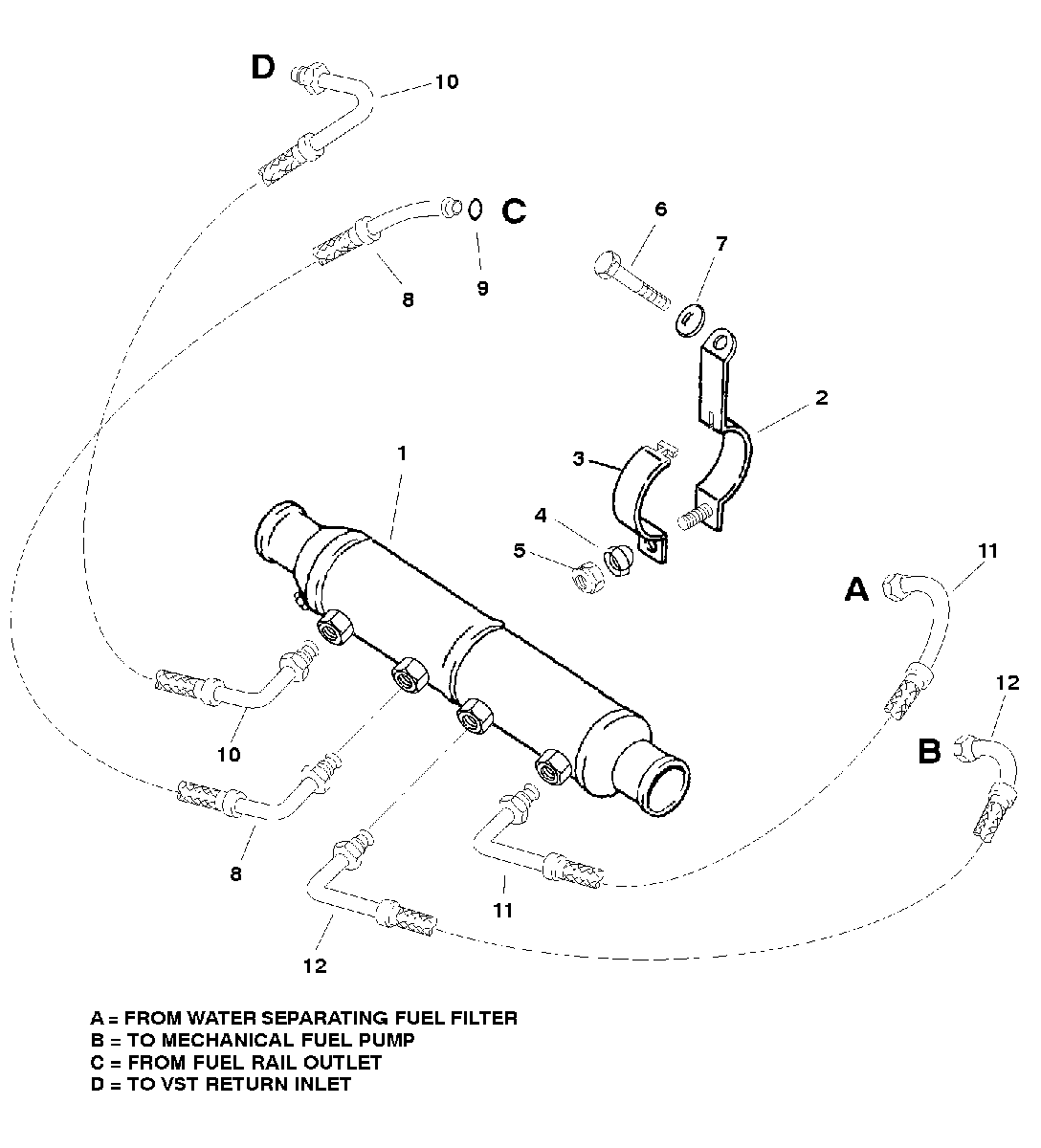

FUEL COOLER для Mercruiser - 454 MAG. MPI (SKI) GEN. VI GM 454 V-8 1996-1997 0F820100 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    807716T FUEL COOLER
    FUEL COOLER
  • 2
    807402T1 BRACKET
    BRACKET
  • 3
    807445T CLAMP
    CLAMP
  • 4
    12-35462 WASHER
    WASHER
  • 5
    11-8267088 NUT (1/4-20)
    NUT (1/4-20)
  • 6
    10-34354 SCREW (3/8-20 x 1-1/2 in.)
    SCREW (3/8-20 x 1-1/2 in.)
  • 7
    12-20572 WASHER
    WASHER
  • 8
    32-807732A1 FUEL LINE-Fuel Rail to Fuel Cooler
    FUEL LINE-Fuel Rail to Fuel Cooler
  • 9
    25-805970 O-RING
    O-RING
  • 10
    32-807732T2 FUEL LINE-Fuel Cooler to VST
    FUEL LINE-Fuel Cooler to VST
  • 11
    32-807732T5 FUEL LINE-Water Separating Fuel Filter to Fuel Cooler
    FUEL LINE-Water Separating Fuel Filter to Fuel Cooler
  • 12
    32-806814T FUEL LINE-Fuel Cooler to Mechanical Fuel Pump
    FUEL LINE-Fuel Cooler to Mechanical Fuel Pump
