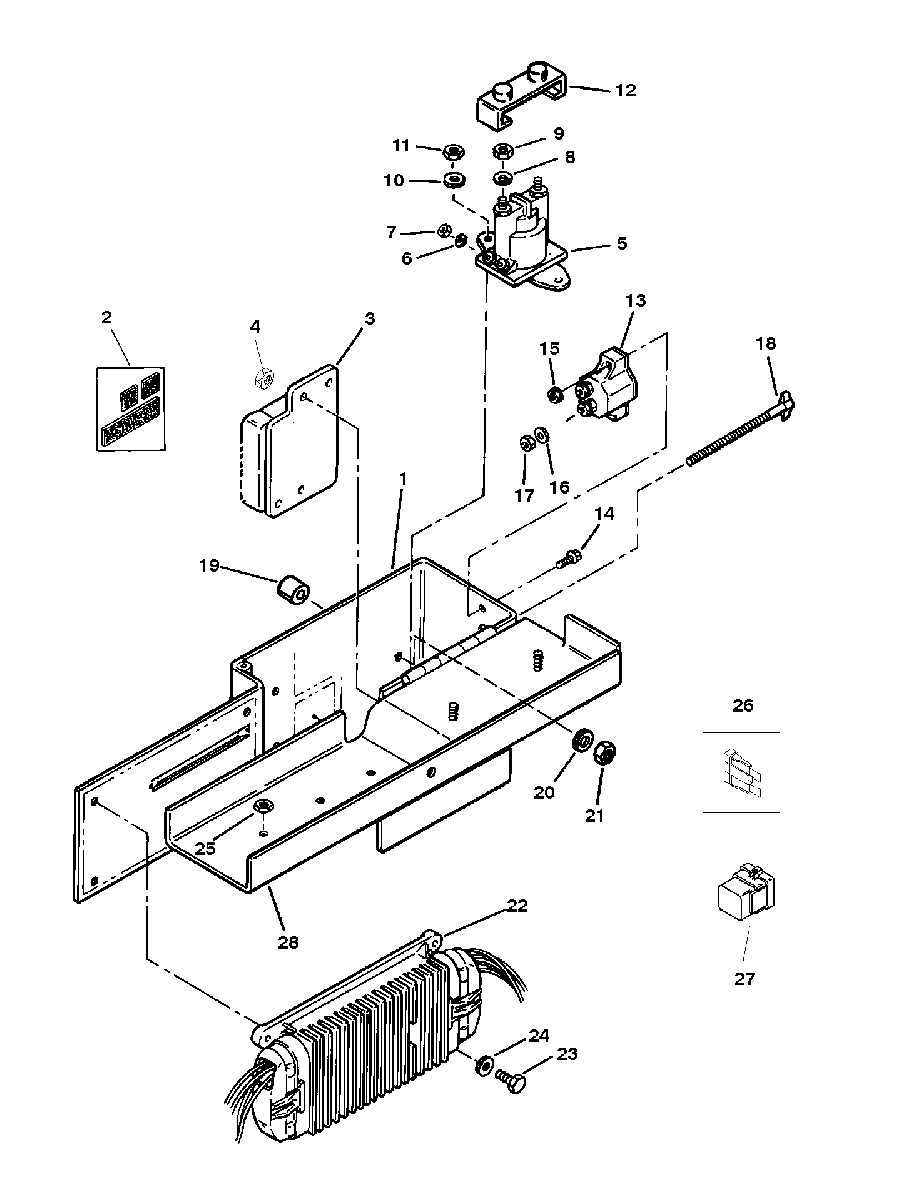

ELECTRICAL BOX AND COMPONENTS для Mercruiser - 454 MAG. MPI (SKI) GEN. VI GM 454 V-8 1996-1997 0F820100 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    807323A5 BOX-Electrical Components
    BOX-Electrical Components
  • 2
    806762A1 VELCRO KIT
    VELCRO KIT
  • 3
    805443 MODULE ASSEMBLY-Spark Control
    MODULE ASSEMBLY-Spark Control
  • 4
    11-64015 NUT (1/4-20)
    NUT (1/4-20)
  • 5
    89-96054T SOLENOID ASSEMBLY-Starter
    SOLENOID ASSEMBLY-Starter
  • 6
    13-26995 LOCKWASHER (#8)
    LOCKWASHER (#8)
  • 7
    11-26419 NUT (#8-32)
    NUT (#8-32)
  • 8
    13-26992 LOCKWASHER (1/4 in.)
    LOCKWASHER (1/4 in.)
  • 9
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
  • 10
    12-35462 WASHER
    WASHER
  • 11
    11-64015 NUT (1/4-20)
    NUT (1/4-20)
  • 12
    85-97861 INSULATOR-Starter Solenoid
    INSULATOR-Starter Solenoid
  • 13
    88-11178A01 BREAKER-Circuit (50 amp)
    BREAKER-Circuit (50 amp)
  • 14
    10-45862 SCREW (#10-32 x 7/8 in.)
    SCREW (#10-32 x 7/8 in.)
  • 15
    11-61356 NUT (#10-32)
    NUT (#10-32)
  • 16
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 17
    11-68219 NUT (#10-32)
    NUT (#10-32)
  • 18
    805615A2 SCREW ASSEMBLY-Thumb
    SCREW ASSEMBLY-Thumb
  • 19
    23-92152T SPACER
    SPACER
  • 20
    12-35462 WASHER
    WASHER
  • 21
    11-64015 NUT (1/4-20)
    NUT (1/4-20)
  • 22
    807270T2 MODULE ASSEMBLY-ECM
    MODULE ASSEMBLY-ECM
  • 23
    10-76596 SCREW (1/4-20 x 1-1/4 in.)
    SCREW (1/4-20 x 1-1/4 in.)
  • 24
    12-20533 WASHER
    WASHER
  • 25
    11-805562 NUT (#10-24)
    NUT (#10-24)
  • 26
    88-804642 FUSE
    (15 AMP)
    FUSE
    (15 AMP)
  • 26
    862647 FUSE
    (10 AMP)
    FUSE
    (10 AMP)
  • 27
    86-865202T RELAY-Fuel Pump
    RELAY-Fuel Pump
  • 27
    86-865202T RELAY-Ignition System
    RELAY-Ignition System
  • 28
    805439T3 LID-Electrical Box
    LID-Electrical Box
