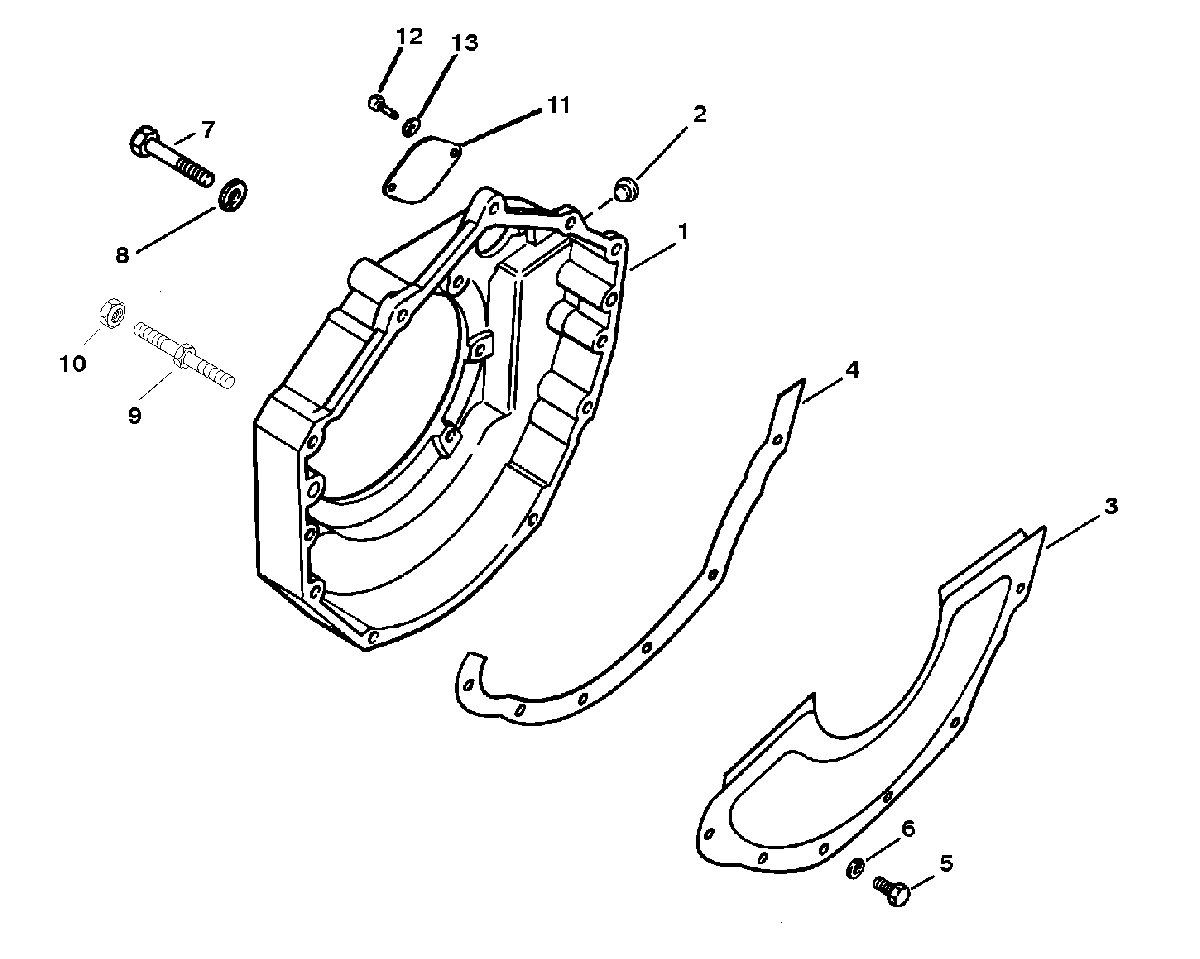

FLYWHEEL HOUSING для Mercruiser - 454 MAG. MPI (SKI) GEN. VI GM 454 V-8 1996-1997 0F820100 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING-Flywheel
    HOUSING-Flywheel
  • 2
    19-12304 PLUG
    PLUG
  • 3
    818718A3 COVER ASSEMBLY-Flywheel
    COVER ASSEMBLY-Flywheel
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-98253 SCREW (1/4-20 x 1/2 in.)
    SCREW (1/4-20 x 1/2 in.)
  • 6
    13-26992 LOCKWASHER (1/4 in.)
    LOCKWASHER (1/4 in.)
  • 7
    10-47277 SCREW (5/16-24 x 3/4 in.)
    SCREW (5/16-24 x 3/4 in.)
  • 7
    10-34353 SCREW (3/8-16 x 1 in.)
    SCREW (3/8-16 x 1 in.)
  • 7
    10-37612 SCREW (3/8-16 x 1-1/4 in.)
    SCREW (3/8-16 x 1-1/4 in.)
  • 7
    10-47688 SCREW (3/8-16 x 2-3/4 in.)
    SCREW (3/8-16 x 2-3/4 in.)
  • 8
    13-39107 LOCKWASHER (5/16 in.)
    LOCKWASHER (5/16 in.)
  • 8
    13-35048 LOCKWASHER (3/8 in.)
    LOCKWASHER (3/8 in.)
  • 9
    16-8M2004610 STUD-Grounding
    STUD-Grounding
  • 10
    11-32219 NUT (3/8-16)
    NUT (3/8-16)
  • 11
    939201 PLATE-Starter Hole Block-off
    PLATE-Starter Hole Block-off
  • 12
    10-92913 SCREW (7/16-14 x 3/4 in.)
    SCREW (7/16-14 x 3/4 in.)
  • 13
    13-32993 LOCKWASHER (7/16 in.)
    LOCKWASHER (7/16 in.)
