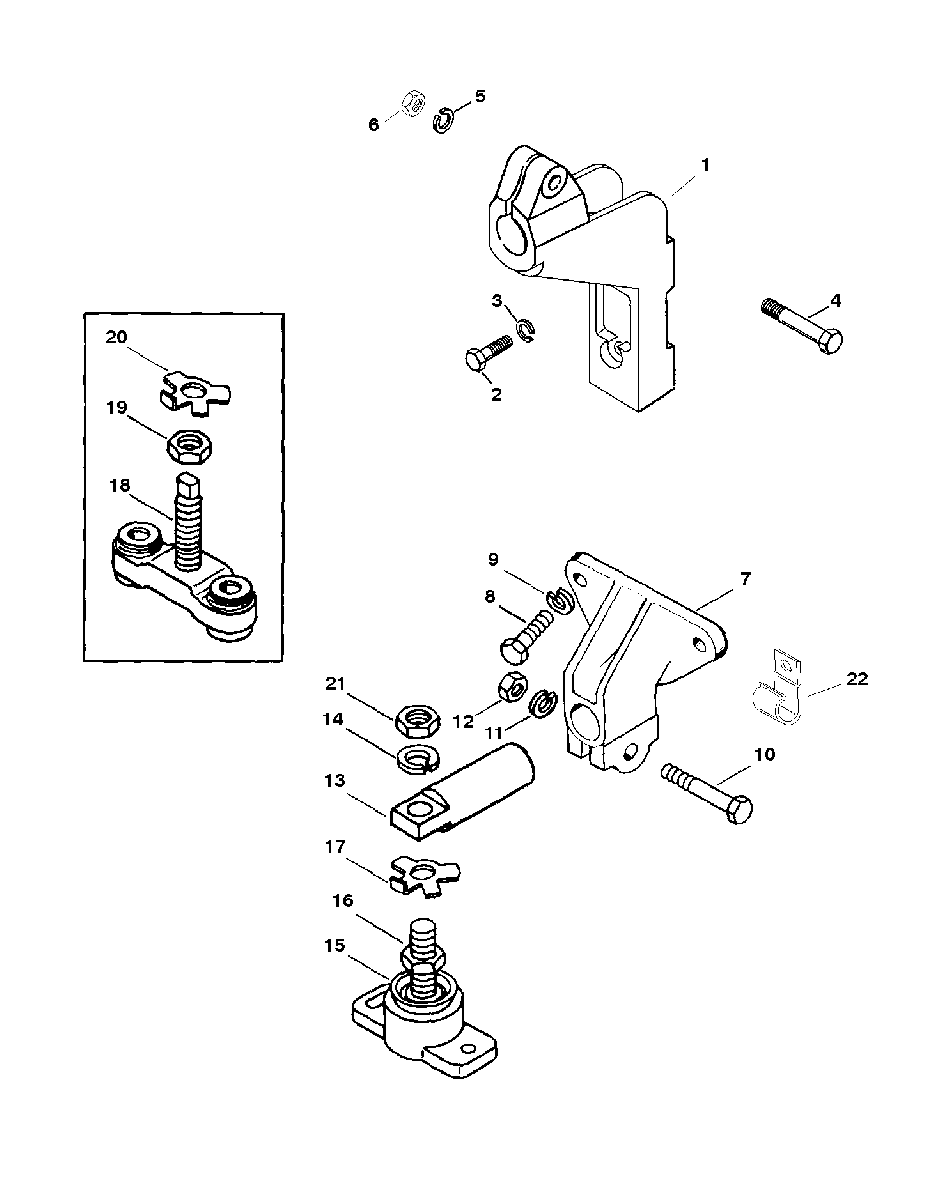

TRANSMISSION AND ENGINE MOUNTING (BORG WARNER 72) для Mercruiser - 454 MAG. MPI (SKI) GEN. VI GM 454 V-8 1996-1997 0F820100 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    805597A1 BRACKET
    (REAR)
    BRACKET
    (REAR)
  • 2
    10-37269 SCREW (7/16-14 x 2 in.)
    SCREW (7/16-14 x 2 in.)
  • 3
    13-32993 LOCKWASHER (7/16 in.)
    LOCKWASHER (7/16 in.)
  • 4
    10-57357 SCREW (7/16-14 x 2-1/4 in.)
    SCREW (7/16-14 x 2-1/4 in.)
  • 5
    13-32993 LOCKWASHER (7/16 in.)
    LOCKWASHER (7/16 in.)
  • 6
    11-82670814 NUT (7/16-14)
    NUT (7/16-14)
  • 7
    71128A2 BRACKET
    (FRONT)
    BRACKET
    (FRONT)
  • 8
    10-68101 SCREW (3/8-16 x 1-3/8 in.)
    SCREW (3/8-16 x 1-3/8 in.)
  • 9
    13-35048 LOCKWASHER (3/8 in.)
    LOCKWASHER (3/8 in.)
  • 10
    10-57357 SCREW (7/16-14 x 2-1/4 in.)
    SCREW (7/16-14 x 2-1/4 in.)
  • 11
    13-32993 LOCKWASHER (7/16 in.)
    LOCKWASHER (7/16 in.)
  • 12
    11-82670814 NUT (7/16-14)
    NUT (7/16-14)
  • 13
    66166A4 TRUNNION
    TRUNNION
  • 14
    13-68102 LOCKWASHER (3/4 in.)
    LOCKWASHER (3/4 in.)
  • 15
    66284A2 BASE-Engine End
    FRONT)
    BASE-Engine End
    FRONT)
  • 16
    11-20739 NUT-Jam (3/4-16)
    NUT-Jam (3/4-16)
  • 17
    14-66658 WASHER-Tab
    WASHER-Tab
  • 18
    816326A2 BASE-Transmission End
    (REAR)
    BASE-Transmission End
    (REAR)
  • 19
    11-816331 NUT-Jam (3/4-16)
    NUT-Jam (3/4-16)
  • 20
    14-66658 WASHER-Tab
    WASHER-Tab
  • 21
    11-20739 NUT-Jam (3/4-16)
    NUT-Jam (3/4-16)
  • 22
    54-78945 J-CLAMP
    J-CLAMP
