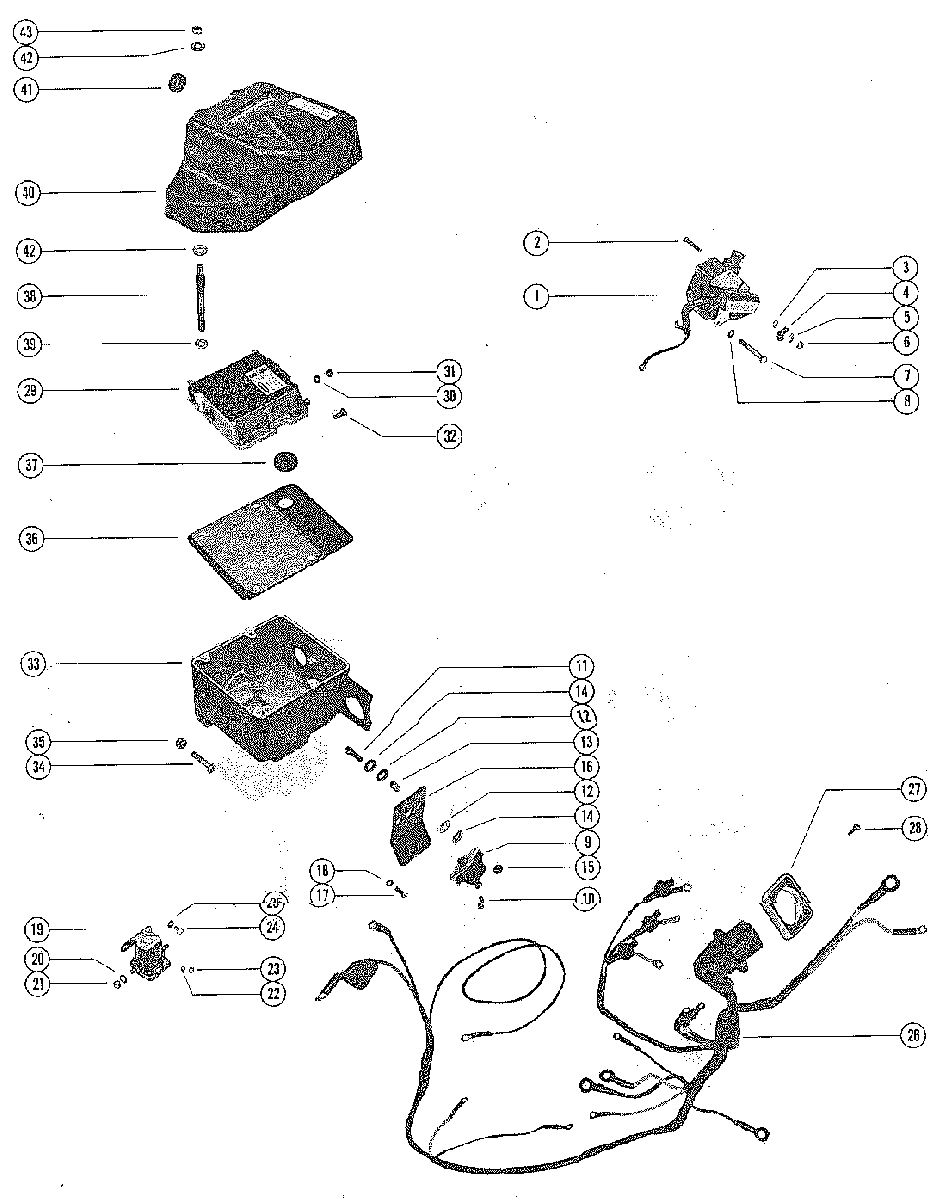

WIRING HARNESS, SWITCH BOX AND IGNITION COIL для Mercruiser - 325 MIE GM 427 V-8 1968-1974 2278747 THRU 3780449

  • №
    Артикул
    Название
  • 1
    332-4895A8 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 2
    10-45102 SCREW, IGNITION COIL CLAMPING (2 3/8")
    SCREW, IGNITION COIL CLAMPING (2 3/8")
  • 2
    10-45103 SCREW, IGNITION COIL CLAMPING (2")
    SCREW, IGNITION COIL CLAMPING (2")
  • 3
    12-56681 WASHER, IGNITION COIL SCREW
    WASHER, IGNITION COIL SCREW
  • 4
    54-22740 CLIP, IGNITION COIL LEAD
    CLIP, IGNITION COIL LEAD
  • 5
    8M0084613 "D" WASHER, IGNITION COIL SCREW
    "D" WASHER, IGNITION COIL SCREW
  • 6
    11-68219 NUT, IGNITION COIL SCREW
    NUT, IGNITION COIL SCREW
  • 7
    10-98255 SCREW, IGNITION COIL TO ELECTRICAL COMPARTMENT
    SCREW, IGNITION COIL TO ELECTRICAL COMPARTMENT
  • 8
    13-26992 LOCKWASHER, IGNITION COIL SCREW
    LOCKWASHER, IGNITION COIL SCREW
  • 9
    59816 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • 10
    10-36046 SCREW, CIRCUIT BREAKER (1/4")
    SCREW, CIRCUIT BREAKER (1/4")
  • 11
    10-47618 SCREW, CIRCUIT GREAKER TO BRACKET (1")
    SCREW, CIRCUIT GREAKER TO BRACKET (1")
  • 12
    25-61999 GROMMET, CIRCUIT BREAKER SCREW
    GROMMET, CIRCUIT BREAKER SCREW
  • 13
    23-61998 SPACER, CIRCUIT GREAKER SCREW
    SPACER, CIRCUIT GREAKER SCREW
  • 14
    12-47960 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 15
    11-46438 NUT, CIRCUIT BREAKER SCREW
    NUT, CIRCUIT BREAKER SCREW
  • 16
    65940 BRACKET, CIRCUIT BREAKER
    BRACKET, CIRCUIT BREAKER
  • 17
    10-53787 SCREW, BRACKET TO ELECTRICAL COMPARTMENT (3/8")
    SCREW, BRACKET TO ELECTRICAL COMPARTMENT (3/8")
  • 18
    13-26996 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
  • 19
    25661T1 STARTER SOLENOID
    STARTER SOLENOID
  • 20
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 21
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16-24)
    NUT, STARTER SOLENOID TERMINAL (5/16-24)
  • 22
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 23
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-23)
    NUT, STARTER SOLENOID TERMINAL (10-23)
  • 24
    10-98253 SCREW, STARTER SOLENOID TO ELECTRICAL COMPARTMENT (1/2")
    SCREW, STARTER SOLENOID TO ELECTRICAL COMPARTMENT (1/2")
  • 25
    13-26992 LOCKWASHER, STATER SOLENOID SCREW
    LOCKWASHER, STATER SOLENOID SCREW
  • 26
    84-64408A3 WIRING HARNESS
    WIRING HARNESS
  • 27
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 28
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
  • 29
    332-2986A27 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 30
    13-26996 LOCKWASHER, SWITCH BOX TERMINAL
    LOCKWASHER, SWITCH BOX TERMINAL
  • 31
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 32
    10-45218 SCREW, GROUND WIRE TO SWITCH BOX (3/8")
    SCREW, GROUND WIRE TO SWITCH BOX (3/8")
  • 33
    63878 COMPARTMENT, ELECTRICAL
    COMPARTMENT, ELECTRICAL
  • 34
    10-805159 SCREW, ELECTRICAL COMPARTMENT TO ENGINE (1 1/2")
    SCREW, ELECTRICAL COMPARTMENT TO ENGINE (1 1/2")
  • 35
    11-20696 NUT, ELECTRICAL COMPARTMENT SCREW
    NUT, ELECTRICAL COMPARTMENT SCREW
  • 36
    63879 PLATE, SWITCH BOX
    PLATE, SWITCH BOX
  • 37
    25-57009001 GROMMET, SWITCH BOX PLATE
    GROMMET, SWITCH BOX PLATE
  • 38
    16-65941 STUD, SWITCH BOX AND COVER ATTACHING
    STUD, SWITCH BOX AND COVER ATTACHING
  • 39
    13-22773 LOCKWASHER, SWITCH BOX AND COVER STUD
    LOCKWASHER, SWITCH BOX AND COVER STUD
  • 40
    65939A1 COVER ASSEMBLY, ELECTRICAL COMPARTMENT
    COVER ASSEMBLY, ELECTRICAL COMPARTMENT
  • 41
    25-21099 GROMMET, ELCTRICAL COMPARTMENT COVER
    GROMMET, ELCTRICAL COMPARTMENT COVER
  • 42
    12-21249 WASHER, COVER STUD
    WASHER, COVER STUD
  • 43
    11-826709109 NUT, COVER STUD
    NUT, COVER STUD
