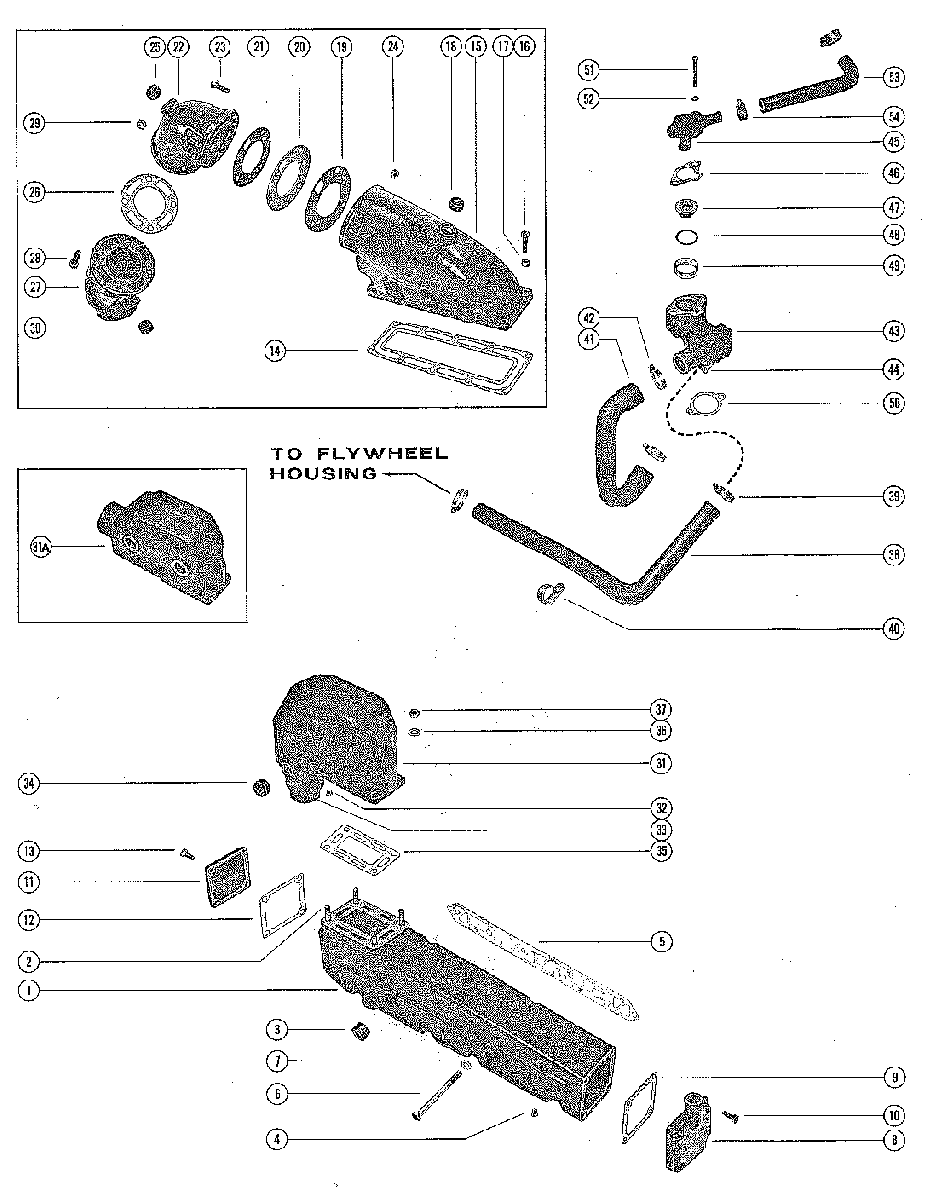

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 325 MIE GM 427 V-8 1968-1974 2278747 THRU 3780449
-
№АртикулНазвание
-
147735A17 EXHAUST MANIFOLD ASSEMBLY, PORT
SEE NOTE SERIAL 02313965-09999999EXHAUST MANIFOLD ASSEMBLY, PORT
SEE NOTE SERIAL 02313965-09999999 -
147736A17 EXHAUST MANIFOLD ASSEMBLY, STARBOARD
SEE NOTE SERIAL 02313965-09999999EXHAUST MANIFOLD ASSEMBLY, STARBOARD
SEE NOTE SERIAL 02313965-09999999 -
216-49545 STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
SEE NOTE SERIAL 02313965-09999999STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
SEE NOTE SERIAL 02313965-09999999 -
322-48118 PLUG, EXHAUST MANIFOLD
SEE NOTE SERIAL 02313965-09999999PLUG, EXHAUST MANIFOLD
SEE NOTE SERIAL 02313965-09999999 -
422-328022 PLUG, PIPE - EXHAUST MANIFOLD
SEE NOTE SERIAL 02313965-09999999PLUG, PIPE - EXHAUST MANIFOLD
SEE NOTE SERIAL 02313965-09999999 -
527-46820 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
SEE NOTE SERIAL 02313965-09999999GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
SEE NOTE SERIAL 02313965-09999999 -
610-37612 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/4")
SERIAL 00000000-02313964SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/4")
SERIAL 00000000-02313964 -
610-68299 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (3")
SERIAL 00000000-02313964SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (3")
SERIAL 00000000-02313964 -
712-20553 WASHER, EXHAUST MANIFOLD SCREW
SERIAL 00000000-02313964WASHER, EXHAUST MANIFOLD SCREW
SERIAL 00000000-02313964 -
838731 END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
SERIAL 00000000-02313964END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
SERIAL 00000000-02313964 -
927-34345 GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
SERIAL 00000000-02313964GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
SERIAL 00000000-02313964 -
1010-35386 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
SERIAL 00000000-02313964SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
SERIAL 00000000-02313964 -
1010-25299 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (3/4")
SERIAL 00000000-02313964SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (3/4")
SERIAL 00000000-02313964 -
1134251 END CAP, EXHAUST MANIFOLD (REAR)
SERIAL 00000000-02313964END CAP, EXHAUST MANIFOLD (REAR)
SERIAL 00000000-02313964 -
1227-34345 GASKET, END CAP TO EXHAUST MANIFOLD
SERIAL 00000000-02313964GASKET, END CAP TO EXHAUST MANIFOLD
SERIAL 00000000-02313964 -
1310-35386 SCREW, END CAP TO EXHAUST MANIFOLD (1")
SERIAL 00000000-02313964SCREW, END CAP TO EXHAUST MANIFOLD (1")
SERIAL 00000000-02313964 -
1427-37296 GASKET, EXHAUST ELBOW
SERIAL 00000000-02313964GASKET, EXHAUST ELBOW
SERIAL 00000000-02313964 -
1537298 ELBOW, EXHAUST
SERIAL 00000000-02313964ELBOW, EXHAUST
SERIAL 00000000-02313964 -
1610-37258 SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD (1 1/4")
SERIAL 00000000-02313964SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD (1 1/4")
SERIAL 00000000-02313964 -
1711-28770 NUT, EXHAUST ELBOW SCREW
SERIAL 00000000-02313964NUT, EXHAUST ELBOW SCREW
SERIAL 00000000-02313964 -
1822-416223 PLUG, PIPE - EXHAUST ELBOW
SERIAL 00000000-02313964PLUG, PIPE - EXHAUST ELBOW
SERIAL 00000000-02313964 -
1927-35671 GASKET, EXHAUST ELBOW TO FACE PLATE
SERIAL 00000000-02313964GASKET, EXHAUST ELBOW TO FACE PLATE
SERIAL 00000000-02313964 -
2035672 PLATE, FACE - EXHAUST ELBOW TO UPPER EXHAUST ELBOW
SERIAL 00000000-02313964PLATE, FACE - EXHAUST ELBOW TO UPPER EXHAUST ELBOW
SERIAL 00000000-02313964 -
2127-35671 GASKET, UPPER EXHAUS ELBOW TO FACE PLATE
SERIAL 00000000-02313964GASKET, UPPER EXHAUS ELBOW TO FACE PLATE
SERIAL 00000000-02313964 -
2235674 ELBOW, EXHAUST - UPPER
SERIAL 00000000-02313964ELBOW, EXHAUST - UPPER
SERIAL 00000000-02313964 -
2310-21951 SCREW, UPPER EXHAUST ELBOW TO EXHAUST ELBOW
SERIAL 00000000-02313964SCREW, UPPER EXHAUST ELBOW TO EXHAUST ELBOW
SERIAL 00000000-02313964 -
2411-25269 NUT, UPPER EXHAUST ELBOW SCREW
SERIAL 00000000-02313964NUT, UPPER EXHAUST ELBOW SCREW
SERIAL 00000000-02313964 -
2522-416223 PLUG, PIPE - UPPER EXHAUST ELBOW
SERIAL 00000000-02313964PLUG, PIPE - UPPER EXHAUST ELBOW
SERIAL 00000000-02313964 -
2627-35673 GASKET, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW
SERIAL 00000000-02313964GASKET, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW
SERIAL 00000000-02313964 -
2735675 ELBOW, EXHAUST - LOWER
SERIAL 00000000-02313964ELBOW, EXHAUST - LOWER
SERIAL 00000000-02313964 -
2810-21951 SCREW, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW (1 1/4")
SERIAL 00000000-02313964SCREW, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW (1 1/4")
SERIAL 00000000-02313964 -
2911-25269 NUT, LOWER EXHAUST ELBOW SCREW
SERIAL 00000000-02313964NUT, LOWER EXHAUST ELBOW SCREW
SERIAL 00000000-02313964 -
3022-416223 PLUG, PIPE - LOWER EXHAUST ELBOW
SERIAL 00000000-02313964PLUG, PIPE - LOWER EXHAUST ELBOW
SERIAL 00000000-02313964 -
610-37612 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/4")
SERIAL 02313965-09999999SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/4")
SERIAL 02313965-09999999 -
610-26486 SCREW, EXHAUST MANIFOLD TO CLINDER HEAD (2 3/8")
SERIAL 02313965-09999999SCREW, EXHAUST MANIFOLD TO CLINDER HEAD (2 3/8")
SERIAL 02313965-09999999 -
848044 END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
SERIAL 00000000-02508318END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
SERIAL 00000000-02508318 -
860252A2 END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
SERIAL 02313965-09999999END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
SERIAL 02313965-09999999 -
927-480431 GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
SERIAL 02313965-09999999GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
SERIAL 02313965-09999999 -
1010-23703 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (7/8")
SERIAL 00000000-02508318SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (7/8")
SERIAL 00000000-02508318 -
1010-35386 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
SERIAL 02313965-09999999SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
SERIAL 02313965-09999999 -
1010-74824 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1 1/4")
SERIAL 02313965-09999999SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1 1/4")
SERIAL 02313965-09999999 -
1173813A1 END CAP, EXHAUST MANIFOLD (REAR)
SERIAL 00000000-02760341END CAP, EXHAUST MANIFOLD (REAR)
SERIAL 00000000-02760341 -
1173813A1 END CAP, EXHAUST MANIFOLD (REAR)
SERIAL 02313965-09999999END CAP, EXHAUST MANIFOLD (REAR)
SERIAL 02313965-09999999 -
1227-480431 GASKET, END CAP TO EXHAUST MANIFOLD
SERIAL 02313965-09999999GASKET, END CAP TO EXHAUST MANIFOLD
SERIAL 02313965-09999999 -
1310-23703 SCREW, END CAP TO EXHAUST MANIFOLD (7/8")
SERIAL 02313965-09999999SCREW, END CAP TO EXHAUST MANIFOLD (7/8")
SERIAL 02313965-09999999 -
3176668A3 EXHAUST ELBOW ASSEMBLY (STERN DRIVE)
SERIAL 02313965-09999999EXHAUST ELBOW ASSEMBLY (STERN DRIVE)
SERIAL 02313965-09999999 -
31A72963A9 EXHAUST ELBOW ASSEMBLY (INBOARD)
SERIAL 02313965-09999999EXHAUST ELBOW ASSEMBLY (INBOARD)
SERIAL 02313965-09999999 -
3222-328022 PLUG, PIPE - EXHAUST ELBOW
SERIAL 02313965-09999999PLUG, PIPE - EXHAUST ELBOW
SERIAL 02313965-09999999 -
3332-58616A2 TUBE, WATER SEPARATION - EXHAUST ELBOW
SERIAL 02313965-09999999TUBE, WATER SEPARATION - EXHAUST ELBOW
SERIAL 02313965-09999999 -
3422-48118 PLUG, EXHAUST ELBOW
SERIAL 02313965-09999999PLUG, EXHAUST ELBOW
SERIAL 02313965-09999999 -
3527-48042 GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
SERIAL 02313965-09999999GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
SERIAL 02313965-09999999 -
3613-35048 LOCKWASHER, EXHAUST.ELGOW TO EXHAUST MANIFOLD STUD
SERIAL 02313965-09999999LOCKWASHER, EXHAUST.ELGOW TO EXHAUST MANIFOLD STUD
SERIAL 02313965-09999999 -
3711-49838 NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
SERIAL 02313965-09999999NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
SERIAL 02313965-09999999 -
3832-47650 HOSE, OIL COOLER TO THEMOSTAT HOUSINGHOSE, OIL COOLER TO THEMOSTAT HOUSING
-
3954-815504220 CLAMP, HOSE TO OIL COOLER AND THERMOSTAT HOUSINGCLAMP, HOSE TO OIL COOLER AND THERMOSTAT HOUSING
-
4054-47715 CLIP, HOSE TO CYLINDER BLOCKCLIP, HOSE TO CYLINDER BLOCK
-
4132-897181 HOSE, THERMOSTAT HOUSING TO WATER PUMPHOSE, THERMOSTAT HOUSING TO WATER PUMP
-
4254-815504228 CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMPCLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
-
4347479A3 THERMOSTAT HOUSING ASSEMBLY
SERIAL 00000000-02313964THERMOSTAT HOUSING ASSEMBLY
SERIAL 00000000-02313964 -
4423-47511 SLEEVE, THERMOSTAT HOUSING
SERIAL 00000000-02313964SLEEVE, THERMOSTAT HOUSING
SERIAL 00000000-02313964 -
4547479A3 COVER, THEMOSTAT HOUSING
SERIAL 00000000-02313964COVER, THEMOSTAT HOUSING
SERIAL 00000000-02313964 -
4627-47509 GASKET, THERMOSTAT HOUSING (UPPER)
SERIAL 00000000-02313964GASKET, THERMOSTAT HOUSING (UPPER)
SERIAL 00000000-02313964 -
4349966A1 THERMOSTAT HOUSING ASSEMBLY - AUTOMATIC CHOKE SERIAL #
SERIAL 02313965-09999999THERMOSTAT HOUSING ASSEMBLY - AUTOMATIC CHOKE SERIAL #
SERIAL 02313965-09999999 -
4352852A1 THERMOSTAT HOUSING ASSEMBLY - ELECTRIC CHOKE
SERIAL 02313965-09999999THERMOSTAT HOUSING ASSEMBLY - ELECTRIC CHOKE
SERIAL 02313965-09999999 -
4423-47511 SLEEVE, THERMOSTAT HOUSING
SERIAL 02313965-09999999SLEEVE, THERMOSTAT HOUSING
SERIAL 02313965-09999999 -
458M0061068 COVER, THEMOSTAT HOUSING
SERIAL 02313965-09999999COVER, THEMOSTAT HOUSING
SERIAL 02313965-09999999 -
4627-488181 GASKET, THERMOSTAT HOUSING (UPPER)
SERIAL 02313965-09999999GASKET, THERMOSTAT HOUSING (UPPER)
SERIAL 02313965-09999999 -
478M0089715 THERMOSTATTHERMOSTAT
-
4827-47510 GASKET, THEROSTAT (MIDDLE)GASKET, THEROSTAT (MIDDLE)
-
4923-47508T SLEEVE, THERMOSTAT HOUSINGSLEEVE, THERMOSTAT HOUSING
-
5027-530451 GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)
-
5110-35785 SCREW, THERMOSTAT HOUSING TO WATER METERING HOUSING (3 1/4")
SERIAL 00000000-02313964SCREW, THERMOSTAT HOUSING TO WATER METERING HOUSING (3 1/4")
SERIAL 00000000-02313964 -
5110-48115 SCREW, THERMOSTAT HOUSING TO WATER METERING HOUSING (3 1/2")
SERIAL 02313965-09999999SCREW, THERMOSTAT HOUSING TO WATER METERING HOUSING (3 1/2")
SERIAL 02313965-09999999 -
5213-35048 LOCKWASHER, THERMOSTAT HOUSING SCREWLOCKWASHER, THERMOSTAT HOUSING SCREW
-
5332-8M0062614 HOSE, THERMOSTAT HOUSING TO EXHAUST MANIFOLD (PORT)
SERIAL 00000000-02313964HOSE, THERMOSTAT HOUSING TO EXHAUST MANIFOLD (PORT)
SERIAL 00000000-02313964 -
5332-8M0062614 HOSE, THEMOSTAT HOUSING TO EXHAUST MANIFOLD (STARBOARD)
SERIAL 00000000-02313964HOSE, THEMOSTAT HOUSING TO EXHAUST MANIFOLD (STARBOARD)
SERIAL 00000000-02313964 -
5454-815504220 CLAMP, HOSE TO THERMOSTAT HOUSING AND EXHAUST MANIFOLD
SERIAL 00000000-02313964CLAMP, HOSE TO THERMOSTAT HOUSING AND EXHAUST MANIFOLD
SERIAL 00000000-02313964 -
5332-48132 HOSE, THERMOSTAT HOUSING TO EXHAUST MANIFOLD
SERIAL 02313965-09999999HOSE, THERMOSTAT HOUSING TO EXHAUST MANIFOLD
SERIAL 02313965-09999999 -
5454-815504220 CLAMP, HOSE TO THERMOSTAT HOUSING AND EXHAUST MANIFOLD
SERIAL 02313965-09999999CLAMP, HOSE TO THERMOSTAT HOUSING AND EXHAUST MANIFOLD
SERIAL 02313965-09999999
Все узлы модели:
- CARBURETOR ASSEMBLY, COMPLETE
- CYLINDER BLOCK, PISTONS AND CRANKSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR ASSEMBLY, COMPLETE
- ENGINE MOUNTING
- EXHAUST KIT
- • EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- FLYWHEEL HOUSING
- FLYWHEEL HOUSING AND OIL COOLER
- FUEL PUMP, FUEL FILTER AND CARBURETOR
- FUEL PUMP, FUEL FILTER AND CARBURETOR
- FUEL PUMP, FUEL FILTER AND CARBURETOR
- FUEL PUMP, FUEL FILTER AND CARBURETOR
- INTAKE MANIFOLD AND WATER PUMP
- MOUNTING BRACKETS
- OIL COOLER, OIL FILTER AND HOSES
- OIL PUMP AND OIL PAN
- REMOTE OIL FILTER
- REVERSE LOCK VALVE ASSEMBLY AND SHIFT LEVER
- STARTER MOTOR AND ALTERNATOR
- STARTER SOLENOID, REGULATOR, SWITCH BOX AND COIL ASSEMBLY
- TRANSMISSION ASSEMBLY (INBOARD)
- TRANSMISSION ASSEMBLY (STERN DRIVE)
- TRANSMISSION ASSEMBLY (V-DRIVE)
- WATER DISTRIBUTION HOSES
- WATER PUMP ASSEMBLY, COMPLETE
- WATER PUMP ASSEMBLY, COMPLETE
- WIRING HARNESS AND ELECTRIC PANEL
- WIRING HARNESS, SWITCH BOX AND IGNITION COIL
