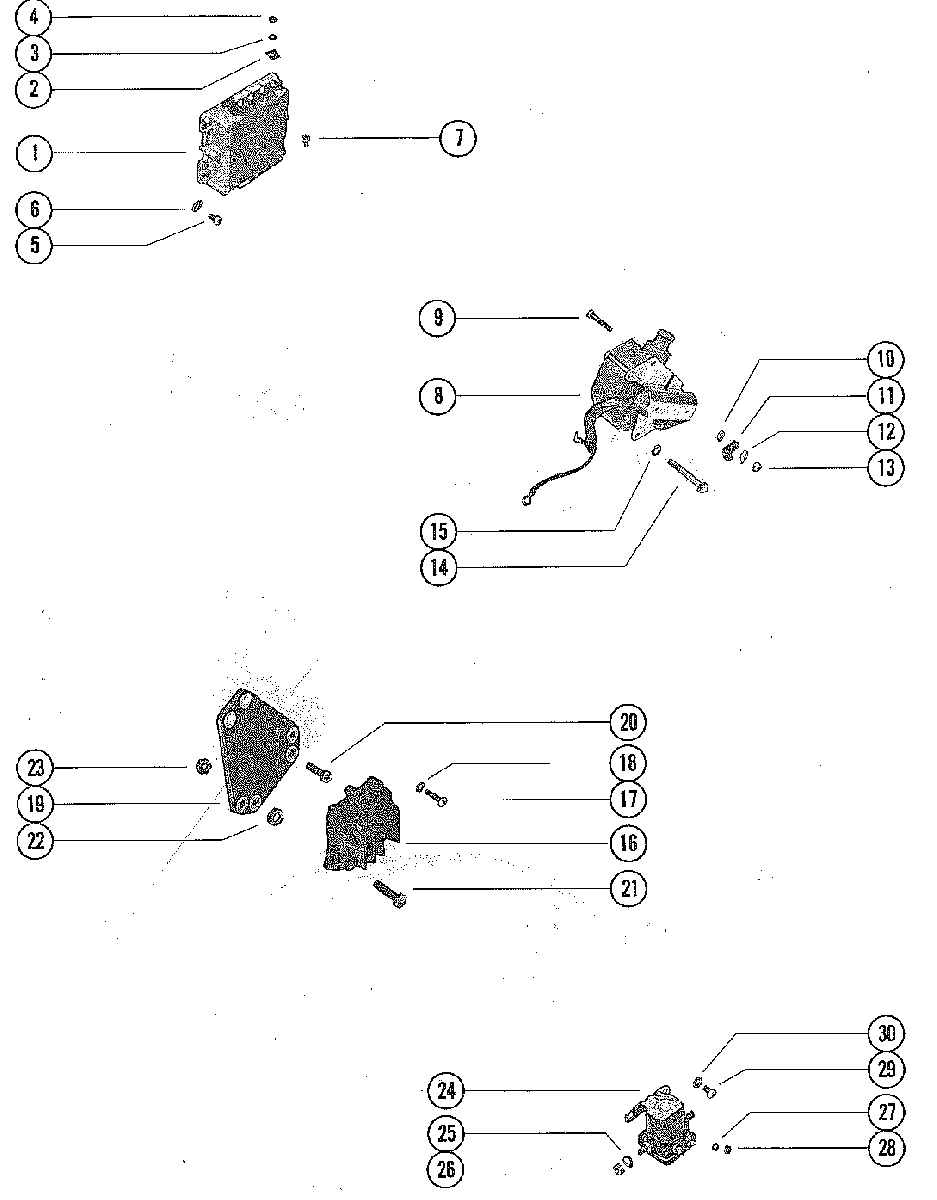

STARTER SOLENOID, REGULATOR, SWITCH BOX AND COIL ASSEMBLY для Mercruiser - 325 MIE GM 427 V-8 1968-1974 2278747 THRU 3780449

  • №
    Артикул
    Название
  • 1
    332-2986A27 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 2
    12-45075 WASHER, SWITCH BOX TERMINAL
    WASHER, SWITCH BOX TERMINAL
  • 3
    13-26996 LOCKWASHER, SWITCH BOX TERMINAL
    LOCKWASHER, SWITCH BOX TERMINAL
  • 4
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 5
    10-26184 SCREW, SWITCH BOX TO ELECTRIC PANEL (9/6")
    SCREW, SWITCH BOX TO ELECTRIC PANEL (9/6")
  • 6
    13-21547 LOCKWASHER, SWITCH BOX SCREW
    LOCKWASHER, SWITCH BOX SCREW
  • 7
    10-45218 SCREW, GROUND WIRE TO SWITCH BOX (3/8")
    SCREW, GROUND WIRE TO SWITCH BOX (3/8")
  • 8
    332-4895A8 IGINITION COIL ASSEMBLY
    IGINITION COIL ASSEMBLY
  • 9
    749-5102 SCREW, IGNITION COIL CLAMPING (2 3/8")
    SCREW, IGNITION COIL CLAMPING (2 3/8")
  • 9
    10-45103 SCREW, IGINITION COIL CLAMPING (2")
    SCREW, IGINITION COIL CLAMPING (2")
  • 10
    12-56681 WASHER, IGINITION COIL SCREW
    WASHER, IGINITION COIL SCREW
  • 11
    54-22740 CLIP, IGNITION COIL LEAD
    CLIP, IGNITION COIL LEAD
  • 12
    8M0084613 "D" WASHER, IGNITION COIL SCREW
    "D" WASHER, IGNITION COIL SCREW
  • 13
    11-68219 NUT, IGNITION COIL SCREW
    NUT, IGNITION COIL SCREW
  • 14
    10-26889 SCREW, IGNITION COIL TO ELECTRIC PANEL (2 1/4")
    SCREW, IGNITION COIL TO ELECTRIC PANEL (2 1/4")
  • 15
    13-26992 LOCKWASHER, IGNITION COIL SCREW
    LOCKWASHER, IGNITION COIL SCREW
  • 16
    37707 VOLTAGE REGULATOR SERIAL # AND BELOW
    SERIAL 00000000-02761141
    VOLTAGE REGULATOR SERIAL # AND BELOW
    SERIAL 00000000-02761141
  • 17
    10-52102 SCREW, REGULATOR TO PANEL (1") EARLY MODELS
    SERIAL 00000000-02761141
    SCREW, REGULATOR TO PANEL (1") EARLY MODELS
    SERIAL 00000000-02761141
  • 18
    13-26992 LOCKWASHER, REGULATOR SCREW EARLY MODELS
    SERIAL 00000000-02761141
    LOCKWASHER, REGULATOR SCREW EARLY MODELS
    SERIAL 00000000-02761141
  • 19
    53009A1 MOUNT ASSEMBLY, REGULATOR LATE MODELS
    SERIAL 00000000-02761141
    MOUNT ASSEMBLY, REGULATOR LATE MODELS
    SERIAL 00000000-02761141
  • 20
    10-64074 SCREW, MOUNT TO PANEL (5/8") LATE MODELS
    SERIAL 00000000-02761141
    SCREW, MOUNT TO PANEL (5/8") LATE MODELS
    SERIAL 00000000-02761141
  • 21
    10-56500 SCREW, REGULATOR TO MOUNT LATE MODELS
    SERIAL 00000000-02761141
    SCREW, REGULATOR TO MOUNT LATE MODELS
    SERIAL 00000000-02761141
  • 22
    23-27958 SPACER, REGULATOR SCREW LATE MODELS
    SERIAL 00000000-02761141
    SPACER, REGULATOR SCREW LATE MODELS
    SERIAL 00000000-02761141
  • 23
    11-826709109 NUT, REGULATOR SCREW LATE MODELS
    SERIAL 00000000-02761141
    NUT, REGULATOR SCREW LATE MODELS
    SERIAL 00000000-02761141
  • 24
    25661T1 STARTER SOLEMOID
    STARTER SOLEMOID
  • 25
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 26
    11-22053 NUT,STARTER SOLENOID TERMINAL (5/16-24)
    NUT,STARTER SOLENOID TERMINAL (5/16-24)
  • 27
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 28
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 29
    10-96138 SCREW, STARTER SOLEOID TO ELECTRIC PANEL (1/2")
    SCREW, STARTER SOLEOID TO ELECTRIC PANEL (1/2")
  • 30
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
