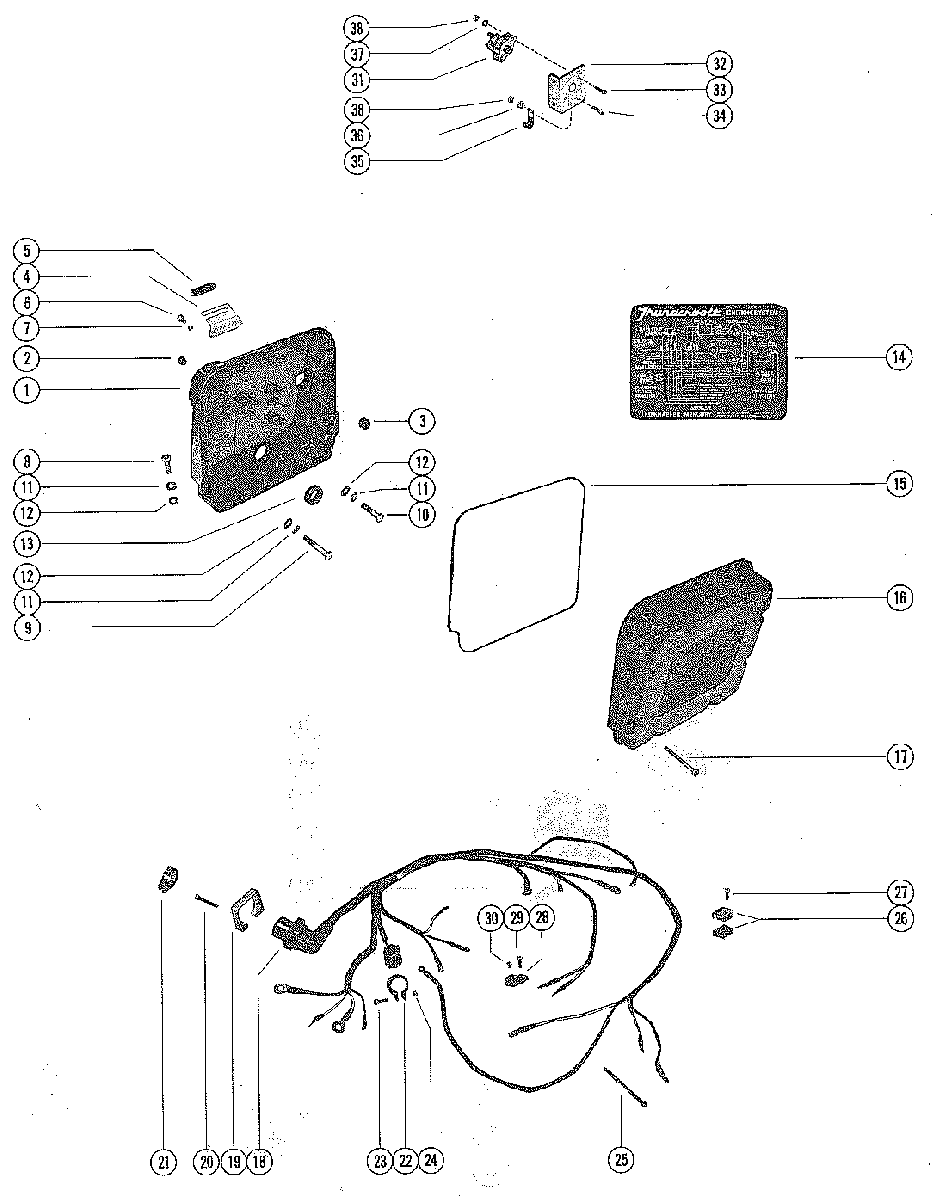

WIRING HARNESS AND ELECTRIC PANEL для Mercruiser - 325 MIE GM 427 V-8 1968-1974 2278747 THRU 3780449

  • №
    Артикул
    Название
  • 1
    56717 PANEL, ELECTRIC
    PANEL, ELECTRIC
  • 2
    22-328022 PLUG, PIPE - ELECTRIC PANEL (1/8-27) EARLY MODELS
    PLUG, PIPE - ELECTRIC PANEL (1/8-27) EARLY MODELS
  • 2
    22-36373 PLUG, PIPE - ELECTRIC PANEL (3/8-18) EARLY MODELS
    PLUG, PIPE - ELECTRIC PANEL (3/8-18) EARLY MODELS
  • 2
    19-32298 PLUG, HOLE - ELECTRIC PANEL (LATE MODELS)
    PLUG, HOLE - ELECTRIC PANEL (LATE MODELS)
  • 3
    25-57009001 GROMMET, POWER TRIM LEADS - ELECTRIC PANEL
    GROMMET, POWER TRIM LEADS - ELECTRIC PANEL
  • 4
    47763 BRACKET, RETAINER - HIGH TENSION LEADS
    BRACKET, RETAINER - HIGH TENSION LEADS
  • 5
    25-38930 GROMMET, HIGH TENSION LEADS (RETAINER BRACKET)
    GROMMET, HIGH TENSION LEADS (RETAINER BRACKET)
  • 6
    10-98256 SCREW, RETAINER BRACKET TO ELECTRIC PANEL (1/4-28X1/2")
    SCREW, RETAINER BRACKET TO ELECTRIC PANEL (1/4-28X1/2")
  • 7
    13-26992 LOCKWASHER, RETAINER BRACKET SCREW
    LOCKWASHER, RETAINER BRACKET SCREW
  • 6
    10-98261 SCREW, RETAINER BRACKET TO CYLINDER HEAD (3/8-16X3/4")
    SCREW, RETAINER BRACKET TO CYLINDER HEAD (3/8-16X3/4")
  • 7
    13-35048 LOCKWASHER, RETAINER BRACKET SCREW
    LOCKWASHER, RETAINER BRACKET SCREW
  • 6
    10-92913 SCREW, RETAINER BRACKET TO CYLINDER HEAD (7/16-14X3/4")
    SCREW, RETAINER BRACKET TO CYLINDER HEAD (7/16-14X3/4")
  • 7
    13-32993 LOCKWASHER, RETAINER BRACKET SCREW
    LOCKWASHER, RETAINER BRACKET SCREW
  • 8
    10-37612 SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (1 1/4")
    SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (1 1/4")
  • 9
    10-35787 SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (2 1/4")
    SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (2 1/4")
  • 10
    10-47954 SCREW ELECTRIC PANEL TO FLYWHEEL HOUSING (1 5/8")
    SCREW ELECTRIC PANEL TO FLYWHEEL HOUSING (1 5/8")
  • 11
    13-35048 LOCKWASHER, ELECTRIC PANEL SCREW
    LOCKWASHER, ELECTRIC PANEL SCREW
  • 12
    12-20553 WASHER, ELECTRIC PANEL SCREW
    WASHER, ELECTRIC PANEL SCREW
  • 13
    25-47624 GROMMET, ELECTRIC PANEL
    GROMMET, ELECTRIC PANEL
  • 14
    37-49606 DECAL, WIRING (STERN DRIVE-AUTOMATIC CHOKE)
    SERIAL 00000000-03042730
    DECAL, WIRING (STERN DRIVE-AUTOMATIC CHOKE)
    SERIAL 00000000-03042730
  • 14
    37-47239 DECAL, WIRING (INBOARD-AUTOMATIC CHOKE)
    SERIAL 00000000-03042730
    DECAL, WIRING (INBOARD-AUTOMATIC CHOKE)
    SERIAL 00000000-03042730
  • 14
    37-52808 DECAL, WIRING (STERN DRIVE AND INBOARD-ELECTRIC CHOKE)-
    SERIAL 00000000-02760341
    DECAL, WIRING (STERN DRIVE AND INBOARD-ELECTRIC CHOKE)-
    SERIAL 00000000-02760341
  • 14
    37-56528 DECAL, WIRING (STERN DRIVE-ELECTRIC CHOKE)
    SERIAL 02760342-09999999
    DECAL, WIRING (STERN DRIVE-ELECTRIC CHOKE)
    SERIAL 02760342-09999999
  • 14
    37-56428 DECAL, WIRING (INBOARD-ELECTRIC CHOKE)
    SERIAL 02760342-09999999
    DECAL, WIRING (INBOARD-ELECTRIC CHOKE)
    SERIAL 02760342-09999999
  • 14
    37-60321 DECAL, WIRING (INBOARD-AUTOMATIC CHOKE)
    SERIAL 03042731-09999999
    DECAL, WIRING (INBOARD-AUTOMATIC CHOKE)
    SERIAL 03042731-09999999
  • 15
    38371 SEAL, COVER TO ELECTRIC PANEL
    SEAL, COVER TO ELECTRIC PANEL
  • 16
    47550 COVER, ELECTRIC PANEL
    COVER, ELECTRIC PANEL
  • 17
    10-47674 SCREW, COVER TO ELECTRIC PANEL (2 3/4")
    SCREW, COVER TO ELECTRIC PANEL (2 3/4")
  • 18
    47682 WIRING HARNESS, INTERNAL (AUTOMATIC CHOKE)
    SERIAL 00000000-03042730
    WIRING HARNESS, INTERNAL (AUTOMATIC CHOKE)
    SERIAL 00000000-03042730
  • 18
    52768 WIRING HARNESS, INTERNAL (ELECTRIC CHOKE)
    SERIAL 00000000-02760341
    WIRING HARNESS, INTERNAL (ELECTRIC CHOKE)
    SERIAL 00000000-02760341
  • 18
    56545 WIRING HARNESS, INTERNAL (STERN DRIVE-ELECTRIC CHOKE)
    SERIAL 02760342-09999999
    WIRING HARNESS, INTERNAL (STERN DRIVE-ELECTRIC CHOKE)
    SERIAL 02760342-09999999
  • 18
    56387 WIRING HARNESS, INTERNAL (INBOARD-ELECTRIC CHOKE)
    SERIAL 02760342-09999999
    WIRING HARNESS, INTERNAL (INBOARD-ELECTRIC CHOKE)
    SERIAL 02760342-09999999
  • 18
    59870 WIRING HARNESS, INTERNAL (INBOARD-AUTOMATIC CHOKE)
    SERIAL 03042731-09999999
    WIRING HARNESS, INTERNAL (INBOARD-AUTOMATIC CHOKE)
    SERIAL 03042731-09999999
  • 19
    48459 PLATE, BACKUP-WIRING HARNESS
    PLATE, BACKUP-WIRING HARNESS
  • 20
    10-46718 SCREW, BACKUP PLATE FASTENING (3/4")
    SCREW, BACKUP PLATE FASTENING (3/4")
  • 21
    54-815504220 CLAMP, WIRING HARNESS ATTACHING
    CLAMP, WIRING HARNESS ATTACHING
  • 22
    95814 CLAMP, VOLTAGE REGULATOR PLUG
    SERIAL 00000000-02761141
    CLAMP, VOLTAGE REGULATOR PLUG
    SERIAL 00000000-02761141
  • 23
    10-29227 SCREW, VOLTAGE REGULATOR CLAMP (1/2")
    SERIAL 00000000-02761141
    SCREW, VOLTAGE REGULATOR CLAMP (1/2")
    SERIAL 00000000-02761141
  • 24
    11-26768 NUT, VOLTAGE REGULATOR CLAMP SCREW
    SERIAL 00000000-02761141
    NUT, VOLTAGE REGULATOR CLAMP SCREW
    SERIAL 00000000-02761141
  • 25
    61990 STA-STRAP, WIRING HARNESS
    STA-STRAP, WIRING HARNESS
  • 26
    39974 CLAMP, WIRING HARNESS LEADS SERIAL # AND UP
    SERIAL 02760342-09999999
    CLAMP, WIRING HARNESS LEADS SERIAL # AND UP
    SERIAL 02760342-09999999
  • 27
    10-47618 SCREW, WIRING HARNESS LEAD CLAMP ATTACHING
    SERIAL 02760342-09999999
    SCREW, WIRING HARNESS LEAD CLAMP ATTACHING
    SERIAL 02760342-09999999
  • 28
    52418 TERMINAL BLOCK
    SERIAL 0A000000-RN0DRIVE
    TERMINAL BLOCK
    SERIAL 0A000000-RN0DRIVE
  • 29
    10-31716 SCREW, TERMINAL BLOCK ATTACHING (5/8")
    SERIAL 0A000000-RN0DRIVE
    SCREW, TERMINAL BLOCK ATTACHING (5/8")
    SERIAL 0A000000-RN0DRIVE
  • 30
    10-37260 SCREW, HARNESS LEAD TO TERMINAL BLOCK (7/16")
    SERIAL 0A000000-RN0DRIVE
    SCREW, HARNESS LEAD TO TERMINAL BLOCK (7/16")
    SERIAL 0A000000-RN0DRIVE
  • 31
    59816 CIRCUIT BREAKER, MANUAL SERIAL # AND UP
    SERIAL 03042731-09999999
    CIRCUIT BREAKER, MANUAL SERIAL # AND UP
    SERIAL 03042731-09999999
  • 32
    59815 BRACKET, CIRCUIT BREAKER
    SERIAL 03042731-09999999
    BRACKET, CIRCUIT BREAKER
    SERIAL 03042731-09999999
  • 33
    10-24637 SCREW, CIRCUIT BREAKER TO BRACKET
    SERIAL 03042731-09999999
    SCREW, CIRCUIT BREAKER TO BRACKET
    SERIAL 03042731-09999999
  • 34
    10-48591 SCREW, CABLE CLIP TO BRACKET
    SERIAL 03042731-09999999
    SCREW, CABLE CLIP TO BRACKET
    SERIAL 03042731-09999999
  • 35
    54-22875 CLIP, CABLE ATTACHING TO BRACKET
    SERIAL 03042731-09999999
    CLIP, CABLE ATTACHING TO BRACKET
    SERIAL 03042731-09999999
  • 36
    8M0084613 "D" WASHER, CABLE CLIP
    SERIAL 03042731-09999999
    "D" WASHER, CABLE CLIP
    SERIAL 03042731-09999999
  • 37
    13-26996 LOCKWASHER, CABLE CLIP AND BRACKET SCREW
    SERIAL 03042731-09999999
    LOCKWASHER, CABLE CLIP AND BRACKET SCREW
    SERIAL 03042731-09999999
  • 38
    11-68219 NUT, CABLE CLIP AND BREAKER SCREW
    SERIAL 03042731-09999999
    NUT, CABLE CLIP AND BREAKER SCREW
    SERIAL 03042731-09999999
