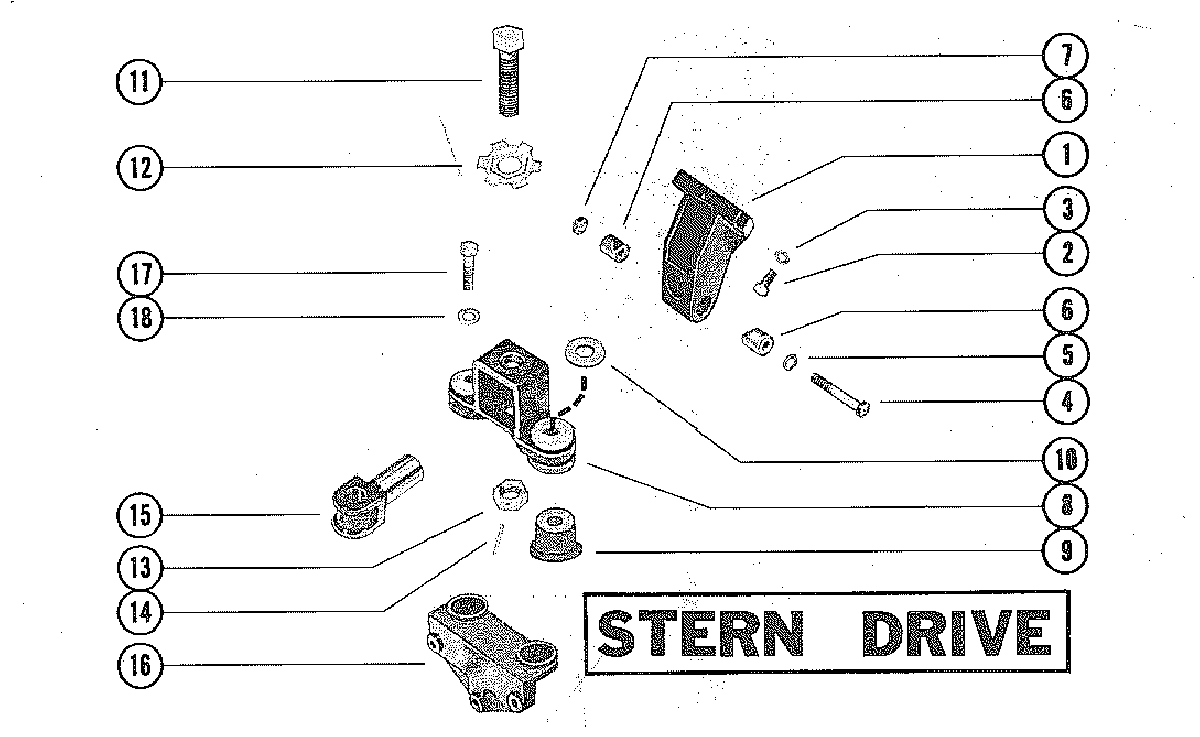

ENGINE MOUNTING для Mercruiser - 325 MIE GM 427 V-8 1968-1974 2278747 THRU 3780449

  • №
    Артикул
    Название
  • 1
    48709 BRACKET, MOUNTING (FRONT)
    BRACKET, MOUNTING (FRONT)
  • 2
    10-37612 SCREW, MOUNTING BRACKET CYLINDER BLOCK (1 1/4")
    SCREW, MOUNTING BRACKET CYLINDER BLOCK (1 1/4")
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 4
    10-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
    SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
  • 5
    13-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
    LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
  • 6
    54-47528 CLAMP, ADJUSTING TRUNNION SCREW
    CLAMP, ADJUSTING TRUNNION SCREW
  • 6
    54-47528 CLAMP, ADUSTING TRUNNION SCREW
    CLAMP, ADUSTING TRUNNION SCREW
  • 7
    11-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREW
    NUT, CLAMP ADJUSTING TRUNNION SCREW
  • 8
    47601A2 BRACKET ASSEMBLY, MOUNTING - FRONT SERIAL # AND BELOW
    SERIAL 00000000-02536059
    BRACKET ASSEMBLY, MOUNTING - FRONT SERIAL # AND BELOW
    SERIAL 00000000-02536059
  • 9
    47656 MOUNT, MOUNTING BRACKET
    SERIAL 00000000-02536059
    MOUNT, MOUNTING BRACKET
    SERIAL 00000000-02536059
  • 10
    12-48611 WASHER, MOUNTING BRACKET
    SERIAL 00000000-02536059
    WASHER, MOUNTING BRACKET
    SERIAL 00000000-02536059
  • 11
    10-47652 SCREW, ADJUSTING TRUNNION (3 5/8")
    SERIAL 00000000-02536059
    SCREW, ADJUSTING TRUNNION (3 5/8")
    SERIAL 00000000-02536059
  • 8
    52139A4 BRACKET ASSEMBLY, MOUNTING - FRONT SERIAL # AND UP
    SERIAL 02536060-09999999
    BRACKET ASSEMBLY, MOUNTING - FRONT SERIAL # AND UP
    SERIAL 02536060-09999999
  • 9
    52753 MOUNT, MOUNTING BRACKET
    SERIAL 02536060-09999999
    MOUNT, MOUNTING BRACKET
    SERIAL 02536060-09999999
  • 10
    12-48611 WASHER, MOUNTING BRACKET
    SERIAL 02536060-09999999
    WASHER, MOUNTING BRACKET
    SERIAL 02536060-09999999
  • 11
    10-52156 SCREW, ADJUSTING TRUNNION (4 1/2")
    SERIAL 02536060-09999999
    SCREW, ADJUSTING TRUNNION (4 1/2")
    SERIAL 02536060-09999999
  • 12
    14-48467 TAB WASHER, ADJUSTING TRUNNION SCREW
    TAB WASHER, ADJUSTING TRUNNION SCREW
  • 13
    11-47525 NUT, JAM - ADJUSTING TRUNNION SCREW
    NUT, JAM - ADJUSTING TRUNNION SCREW
  • 14
    17-22116 PIN, ROOL - JAM NUT
    PIN, ROOL - JAM NUT
  • 15
    47518 TRUNNION, ADJUSTING -MOUNTING BRACKET
    TRUNNION, ADJUSTING -MOUNTING BRACKET
  • 16
    47986 BRACKET, MOUNTING - ENGINE
    BRACKET, MOUNTING - ENGINE
  • 17
    10-48254 SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
    SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
  • 18
    13-31848 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
