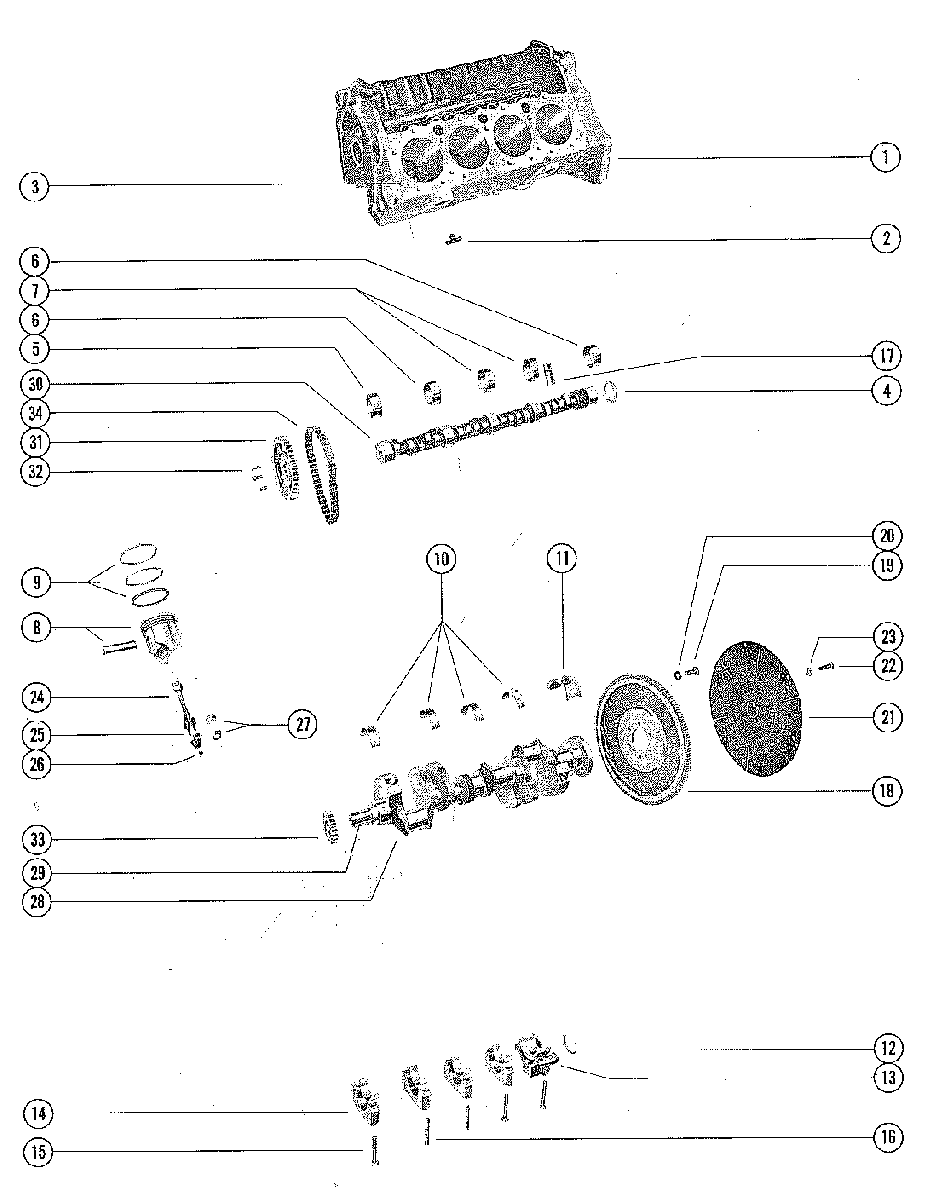

CYLINDER BLOCK, PISTONS AND CRANKSHAFT для Mercruiser - 325 MIE GM 427 V-8 1968-1974 2278747 THRU 3780449

  • №
    Артикул
    Название
  • 1
    842-3821 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • -
    22-428611 PLUG, PIPE - CYLINDER BLOCK (3/4")
    PLUG, PIPE - CYLINDER BLOCK (3/4")
  • -
    22-69300 PLUG, EXPANSION - CYLINDER BLOCK (1 3/4")
    PLUG, EXPANSION - CYLINDER BLOCK (1 3/4")
  • -
    22-32561 PLUG, PIPE - CYLINDER BLOCK (1/4")
    PLUG, PIPE - CYLINDER BLOCK (1/4")
  • -
    22-36373 PLUG, PIPE - CYLINDER BLOCK (3/8-18")
    PLUG, PIPE - CYLINDER BLOCK (3/8-18")
  • -
    22-12524 PLUG, PIPE - CYLINDER BLOCK (3/8")
    PLUG, PIPE - CYLINDER BLOCK (3/8")
  • 2
    22-16951Q1 DRAIN COCK - CLINDER BLOCK
    DRAIN COCK - CLINDER BLOCK
  • 3
    17-52190 PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
    PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
  • 4
    19-94140 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 5
    23-49150 BEARING UNIT, CAMSHAFT (FRONT)
    BEARING UNIT, CAMSHAFT (FRONT)
  • 6
    23-85684 BEARING UNIT, CAMSHAFT (FRONT INTEMEDIATE AND REAR)
    BEARING UNIT, CAMSHAFT (FRONT INTEMEDIATE AND REAR)
  • 7
    23-49152 BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMEDIATE)
    BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMEDIATE)
  • 8
    737-3949 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
    USE STANDARD RING
    PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
    USE STANDARD RING
  • 8
    737-3425 PISTON AND PITSON PIN ASSEMBLY (.030 O. S.)
    PISTON AND PITSON PIN ASSEMBLY (.030 O. S.)
  • 9
    39-67127 RING, PISTON - 8 SETS (STANDARD)
    SERIAL 00000000-03640670
    RING, PISTON - 8 SETS (STANDARD)
    SERIAL 00000000-03640670
  • 9
    39-67128 RING, PISTON - 8 SETS (.030 O.S.)
    SERIAL 00000000-03640670
    RING, PISTON - 8 SETS (.030 O.S.)
    SERIAL 00000000-03640670
  • 9
    39-67127 RING, PISTON - 8 SETS (STANDARD)
    SERIAL 03640671-09999999
    RING, PISTON - 8 SETS (STANDARD)
    SERIAL 03640671-09999999
  • 9
    39-67128 RING, PISTON - 8 SETS (.030 O.S.)
    SERIAL 03640671-09999999
    RING, PISTON - 8 SETS (.030 O.S.)
    SERIAL 03640671-09999999
  • 10
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN (STARDARD)
    BEARING UNIT, CRANKSHAFT MAIN (STARDARD)
  • 10
    23-818474 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
  • 10
    23-49160 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
  • 10
    23-85724 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
  • 10
    23-818477 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 11
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 11
    23-818474 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 11
    23-818475 BEARING UNIT, CRANKSHAFT MAIN - REAR (.022 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.022 U.S.)
  • 11
    23-818476001 BEARING UNIT, CRAKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRAKSHAFT MAIN - REAR (.010 U.S.)
  • 11
    23-818477 BEARING UNIT, CRANDSHAFT MAIN - REAR (.020 U.S.)
    BEARING UNIT, CRANDSHAFT MAIN - REAR (.020 U.S.)
  • 12
    26-8M0062773 OIL SEAL, REAR CRANKSHAFT BEARING CAP
    OIL SEAL, REAR CRANKSHAFT BEARING CAP
  • 13
    49142 CAP, REAR - CRANKSHAFT BEARING
    CAP, REAR - CRANKSHAFT BEARING
  • 14
    49143 CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
    CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
  • 15
    10-49145 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 5/8")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 5/8")
  • 15
    10-49147 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
  • 16
    16-49144 STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
    STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
  • 17
    72638 LIFTER, DRAULIC VA;VE - TAPPET
    SERIAL 00000000-02760341
    LIFTER, DRAULIC VA;VE - TAPPET
    SERIAL 00000000-02760341
  • 17
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    SERIAL 02706342-03042730
    LIFTER, HYDRAULIC VALVE - TAPPET
    SERIAL 02706342-03042730
  • 18
    230-4614 FLYWHEEL ASSEMBLY
    SERIAL 00000000-03042730
    FLYWHEEL ASSEMBLY
    SERIAL 00000000-03042730
  • 18
    230-4614 FLYWHEEL ASSEMBLY
    SERIAL 03042731-09999999
    FLYWHEEL ASSEMBLY
    SERIAL 03042731-09999999
  • 19
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 20
    13-39131 LOCKWASHER, FLYWHEEL SCREW
    LOCKWASHER, FLYWHEEL SCREW
  • 21
    860125T DRIVE PLATE, FLYWHEEL
    DRIVE PLATE, FLYWHEEL
  • 22
    10-35091 SCREW, DRIVE PLATE TO FLYWHEEL
    SCREW, DRIVE PLATE TO FLYWHEEL
  • 23
    13-35048 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 24
    614-8M0030663 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 25
    10-52192 BOLT, CONNECTING ROD CAP
    BOLT, CONNECTING ROD CAP
  • 26
    11-37493 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 27
    23-85726001 BEARING SET (8 PAIR), CONNECTING ROD (STANDARD)
    BEARING SET (8 PAIR), CONNECTING ROD (STANDARD)
  • 27
    23-85727 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
  • 27
    23-49170 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
  • 27
    23-85691 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
  • 27
    23-85729 BEARING UNIT (PAIR), CONNECTING ROD (.20 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.20 U.S.)
  • 28
    429-3426 CRANKSHAFT
    CRANKSHAFT
  • --
    23-49124 CEARING, THRUST - CAMSHAFT GEAR DRIEN ENGINES 1
    CEARING, THRUST - CAMSHAFT GEAR DRIEN ENGINES 1
  • --
    23-49126 BEARING, PILOT - CRANKSHAFT
    BEARING, PILOT - CRANKSHAFT
  • 29
    28-34466 KEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND BALANCER
    KEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND BALANCER
  • 30
    431-4734 CAMSHAFT
    CHAIN DRIVEN ENGINES
    CAMSHAFT
    CHAIN DRIVEN ENGINES
  • 31
    43-61726 CAMSHAFT
    CHAIN DRIVEN ENGINES
    CAMSHAFT
    CHAIN DRIVEN ENGINES
  • 32
    10-34505 BOLT, CAMSHAFT SPROCKET
    CHAIN DRIVEN ENGINES
    BOLT, CAMSHAFT SPROCKET
    CHAIN DRIVEN ENGINES
  • 33
    43-61727 SPROCKET, CAMSHAFT
    CHAIN DRIVEN ENGINES
    SPROCKET, CAMSHAFT
    CHAIN DRIVEN ENGINES
  • 34
    61728 CHAIN, DRIVE
    CHAIN DRIVEN ENGINES
    CHAIN, DRIVE
    CHAIN DRIVEN ENGINES
  • 30
    431-3422 CAMSHAFT(LEFT HADN CRANKSHAFT ROTATION)
    GEAR DRIVEN ENGINES
    CAMSHAFT(LEFT HADN CRANKSHAFT ROTATION)
    GEAR DRIVEN ENGINES
  • 30
    431-3427 CAMSHAFT(RIGHT HAND CRANKSHAFT ROTATION)
    GEAR DRIVEN ENGINES
    CAMSHAFT(RIGHT HAND CRANKSHAFT ROTATION)
    GEAR DRIVEN ENGINES
  • 31
    43-61726 GEAR, CAMSHAFT TIMING
    GEAR DRIVEN ENGINES
    GEAR, CAMSHAFT TIMING
    GEAR DRIVEN ENGINES
  • 32
    10-8M0040582 BOLT, CAMSHAFT TIMING SPROCKET (7/16")
    GEAR DRIVEN ENGINES
    BOLT, CAMSHAFT TIMING SPROCKET (7/16")
    GEAR DRIVEN ENGINES
  • 33
    43-49114 GEAR, CRANSKSHAFT TIMING
    GEAR DRIVEN ENGINES
    GEAR, CRANSKSHAFT TIMING
    GEAR DRIVEN ENGINES
