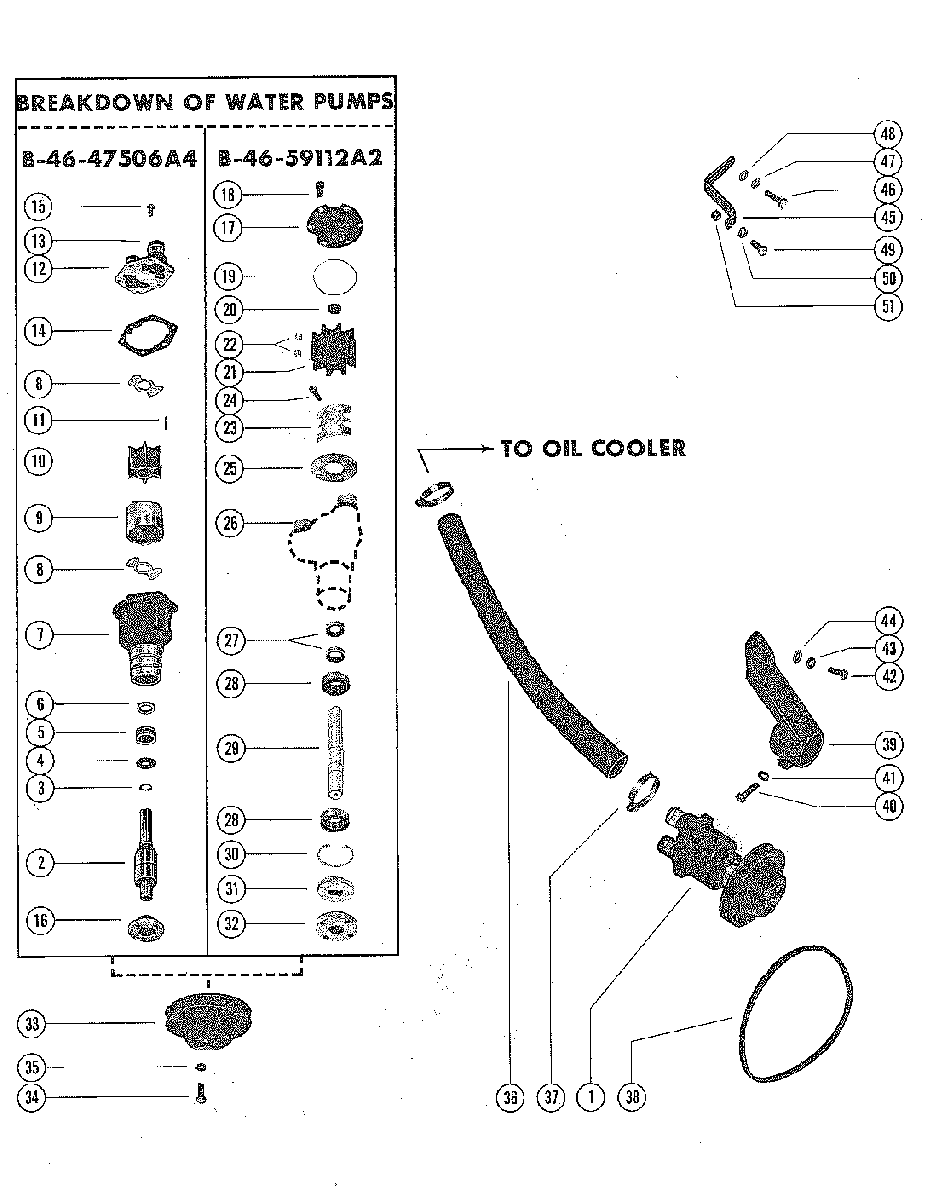

WATER PUMP ASSEMBLY, COMPLETE для Mercruiser - 325 GM 427 V-8 1969-1972 2278747 THRU 3780449
-
№АртикулНазвание
-
146-63450A3 WATER PUMP ASSEMBLY, COMPLETE
SERIAL 00000000-03042730WATER PUMP ASSEMBLY, COMPLETE
SERIAL 00000000-03042730 -
246-72774A32 SHAFT AND BEARING
SERIAL 00000000-03042730SHAFT AND BEARING
SERIAL 00000000-03042730 -
353-47657 RING, RETAINING - SHAFT AND BEARING
SERIAL 00000000-03042730RING, RETAINING - SHAFT AND BEARING
SERIAL 00000000-03042730 -
412-47683 WASHER, SHAFT AND BEARING
SERIAL 00000000-03042730WASHER, SHAFT AND BEARING
SERIAL 00000000-03042730 -
526-47401 SEAL, MECHANICAL - SHAFT AND BEARING
SERIAL 00000000-03042730SEAL, MECHANICAL - SHAFT AND BEARING
SERIAL 00000000-03042730 -
626-47531 SEAL, FLOATING - SHAFT AND BEARING
SERIAL 00000000-03042730SEAL, FLOATING - SHAFT AND BEARING
SERIAL 00000000-03042730 -
746-63450A3 BODY ASSEMBLY, WATER PUMP
SERIAL 00000000-03042730BODY ASSEMBLY, WATER PUMP
SERIAL 00000000-03042730 -
847405 WEAR PLATE
SERIAL 00000000-03042730WEAR PLATE
SERIAL 00000000-03042730 -
947529 INSERT, WATER PUMP BODY
SERIAL 00000000-03042730INSERT, WATER PUMP BODY
SERIAL 00000000-03042730 -
1047-47519T IMPELLER
SERIAL 00000000-03042730IMPELLER
SERIAL 00000000-03042730 -
1117-47526 PIN, IMPELLER DRIVE
SERIAL 00000000-03042730PIN, IMPELLER DRIVE
SERIAL 00000000-03042730 -
1293871T COVER ASSEMBLY, WATER PUMP
SERIAL 00000000-03042730COVER ASSEMBLY, WATER PUMP
SERIAL 00000000-03042730 -
1323-47511 SLEEVE, WATER PUMP COVER
SERIAL 00000000-03042730SLEEVE, WATER PUMP COVER
SERIAL 00000000-03042730 -
1427-47410 GASKET, WATER PUMP COVER TO WATER PUMP BODY
SERIAL 00000000-03042730GASKET, WATER PUMP COVER TO WATER PUMP BODY
SERIAL 00000000-03042730 -
1510-28635 SCREW, WATER PUMP COVER TO WATER PUMP BODY (5/8")
SERIAL 00000000-03042730SCREW, WATER PUMP COVER TO WATER PUMP BODY (5/8")
SERIAL 00000000-03042730 -
1647530 HUB, WATER PUMP PULLEY
SERIAL 00000000-03042730HUB, WATER PUMP PULLEY
SERIAL 00000000-03042730 -
146-72774A32 WATER PUMP ASSEMBLY, COMPLETE SERIAL # AND UP
SERIAL 03042731-09999999WATER PUMP ASSEMBLY, COMPLETE SERIAL # AND UP
SERIAL 03042731-09999999 -
1759155 COVER, WATER PUMP
SERIAL 03042731-09999999COVER, WATER PUMP
SERIAL 03042731-09999999 -
1810-28635 SCREW, COVER TO WATER PUMP (5/8")
SERIAL 03042731-09999999SCREW, COVER TO WATER PUMP (5/8")
SERIAL 03042731-09999999 -
1925-53421 "O" RING, WATER PUMP COVER
SERIAL 03042731-09999999"O" RING, WATER PUMP COVER
SERIAL 03042731-09999999 -
2019-59504 PLUG, IMPELLER
SERIAL 03042731-09999999PLUG, IMPELLER
SERIAL 03042731-09999999 -
2147-59362T1 IMPELLER
SERIAL 03042731-09999999IMPELLER
SERIAL 03042731-09999999 -
2228-8M0032837 KEY, IMPELLER DRIVE
SERIAL 03042731-09999999KEY, IMPELLER DRIVE
SERIAL 03042731-09999999 -
2359363A1 CAM SEGMENT ASSEMBLY
SERIAL 03042731-09999999CAM SEGMENT ASSEMBLY
SERIAL 03042731-09999999 -
2410-60777 SCREW, CAM SEGMENT ATTACHING (1/2")
SERIAL 03042731-09999999SCREW, CAM SEGMENT ATTACHING (1/2")
SERIAL 03042731-09999999 -
2559503 WEAR PLATE, IMPELLER
SERIAL 03042731-09999999WEAR PLATE, IMPELLER
SERIAL 03042731-09999999 -
2623-47511 SLEEVE, WATER PUMP
SERIAL 03042731-09999999SLEEVE, WATER PUMP
SERIAL 03042731-09999999 -
2726-90562 OIL SEAL, WATER PUMP SHAFT
SERIAL 03042731-09999999OIL SEAL, WATER PUMP SHAFT
SERIAL 03042731-09999999 -
2830-72961 BALL BEARING, WATER PUMP SHAFT
SERIAL 03042731-09999999BALL BEARING, WATER PUMP SHAFT
SERIAL 03042731-09999999 -
2959501A1 SHAFT, WATER PUMP
SERIAL 03042731-09999999SHAFT, WATER PUMP
SERIAL 03042731-09999999 -
3053-23720 RING, SNAP - BALL BEARING RETAINING
SERIAL 03042731-09999999RING, SNAP - BALL BEARING RETAINING
SERIAL 03042731-09999999 -
3126-72785 OIL SEAL, WATER PUMP SHAFT (LARGE)
SERIAL 03042731-09999999OIL SEAL, WATER PUMP SHAFT (LARGE)
SERIAL 03042731-09999999 -
3247530 HUB, WATER PUMP PULLEY
SERIAL 03042731-09999999HUB, WATER PUMP PULLEY
SERIAL 03042731-09999999 -
3352822 PULLEY, WATER PUMP
SERIAL 00000000-03042730PULLEY, WATER PUMP
SERIAL 00000000-03042730 -
3359762T PULLEY, WATER PUMP
SERIAL 03042731-09999999PULLEY, WATER PUMP
SERIAL 03042731-09999999 -
3410-47277 SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")
-
3513-39107 LOCKWASHER, WATER PUMP PULLEY SCREWLOCKWASHER, WATER PUMP PULLEY SCREW
-
3632-8M0062665 HOSE, WATER PUMP TO OIL COOLER (25 1/2")HOSE, WATER PUMP TO OIL COOLER (25 1/2")
-
3754-815504220 CLAMP, HOSE TO WATER PUMP AND OIL COOLERCLAMP, HOSE TO WATER PUMP AND OIL COOLER
-
3857-39756 BELT, WATER PUMP
SERIAL 00000000-02312964BELT, WATER PUMP
SERIAL 00000000-02312964 -
3857-48121 BELT, WATER PUMP
SERIAL 02312965-03042730BELT, WATER PUMP
SERIAL 02312965-03042730 -
3947489A2 BRACKET, WATER PUMPBRACKET, WATER PUMP
-
4010-34354 SCREW, WATER PUMP BRACKET ATTACHING (1 1/2")SCREW, WATER PUMP BRACKET ATTACHING (1 1/2")
-
4113-35048 LOCKWASHER, WATER PUMP BRACKET SCREWLOCKWASHER, WATER PUMP BRACKET SCREW
-
4210-48948 SCREW, WATER PUMP BRACKET TO ENGINE (7/8")SCREW, WATER PUMP BRACKET TO ENGINE (7/8")
-
4210-47461 SCREW, WATER PUMP BRACKET TO ENGINE (1")SCREW, WATER PUMP BRACKET TO ENGINE (1")
-
4313-32993 LOCKWASHER, WATER PUMP BRACKET SCREWLOCKWASHER, WATER PUMP BRACKET SCREW
-
4412-74758 WASHER, WATER PUMP BRAKET SCREWWASHER, WATER PUMP BRAKET SCREW
-
4547544 BRACE, WATER PUMP ADJUSTINGBRACE, WATER PUMP ADJUSTING
-
4610-34353 SCREW, ADJUSTING BRACE TO OIL PAN (1")SCREW, ADJUSTING BRACE TO OIL PAN (1")
-
4713-35048 LOCKWASHER, ADJUSTING BRACE SCREWLOCKWASHER, ADJUSTING BRACE SCREW
-
4812-20553 WASHER, ADJUSTING BRACE SCREWWASHER, ADJUSTING BRACE SCREW
-
4910-35786 SCREW, ADJUSTING BRACE TO BRACKET (1")SCREW, ADJUSTING BRACE TO BRACKET (1")
-
5013-35048 LOCKWASHER, ADUSTING BRACELOCKWASHER, ADUSTING BRACE
-
5111-46335 NUT, ADJUSTING BRACE SCREWNUT, ADJUSTING BRACE SCREW
