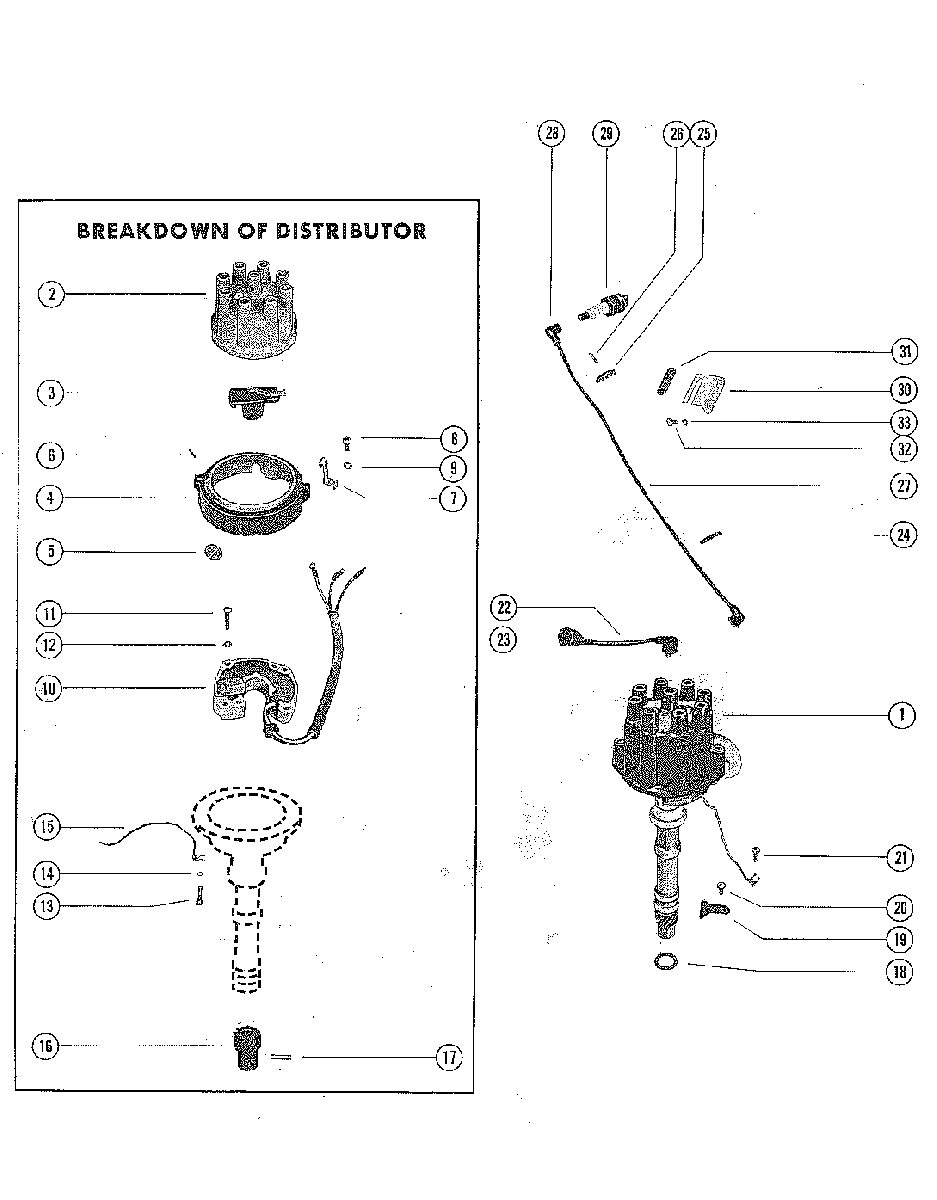

DISTRIBUTOR ASSEMBLY, COMPLETE для Mercruiser - 325 GM 427 V-8 1969-1972 2278747 THRU 3780449

  • №
    Артикул
    Название
  • 1
    47493A13 DISTRIBUTOR ASS'Y (L. H. CRANKSHAFT ROTATION)
    SERIAL 00000000-03469127
    DISTRIBUTOR ASS'Y (L. H. CRANKSHAFT ROTATION)
    SERIAL 00000000-03469127
  • 1
    47493A12 DISTRIBUTOR ASS'Y (R. H. CRANSHAFT ROTATION)
    SERIAL 00000000-03469127
    DISTRIBUTOR ASS'Y (R. H. CRANSHAFT ROTATION)
    SERIAL 00000000-03469127
  • 1
    47493A12 DISTRIBUTOR ASSEMBLY
    SERIAL 03469128-09999999
    DISTRIBUTOR ASSEMBLY
    SERIAL 03469128-09999999
  • 2
    393-4988T2 CAP, DISTRIBUTOR
    CAP, DISTRIBUTOR
  • 3
    65864 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 4
    59754A1 HOUING ASSEMBLY, ADAPTOR
    HOUING ASSEMBLY, ADAPTOR
  • 5
    35-60047A1 FLAME ARRESTOR ASSEMBLY
    FLAME ARRESTOR ASSEMBLY
  • 6
    17-20032 PIN, DOWEL - ADAPTOR HOUSING
    PIN, DOWEL - ADAPTOR HOUSING
  • 7
    54-65783A2 CLAMP ASSEMBLY, CAP TO DISTRIBUTOR HOUSING
    CLAMP ASSEMBLY, CAP TO DISTRIBUTOR HOUSING
  • 8
    10-21335 SCREW, CLAMP TO ADAPTOR HOUSING (1")
    SERIAL 03469128-09999999
    SCREW, CLAMP TO ADAPTOR HOUSING (1")
    SERIAL 03469128-09999999
  • 8
    10-37572 SCREW, DISTRIBUTOR CLAMP TO ADAPTOR HOUSING (3-8")
    SERIAL 00000000-03469127
    SCREW, DISTRIBUTOR CLAMP TO ADAPTOR HOUSING (3-8")
    SERIAL 00000000-03469127
  • 9
    13-26996 LOCKWASHER, DISTRIBUTOR CLAMP FASTENING SCREW
    LOCKWASHER, DISTRIBUTOR CLAMP FASTENING SCREW
  • 10
    393-2918A6 TRIGGER ASSEMBLY
    SERIAL 00000000-03469127
    TRIGGER ASSEMBLY
    SERIAL 00000000-03469127
  • 10
    393-2918A9 TRIGGER ASSEMBLY
    SERIAL 03469128-09999999
    TRIGGER ASSEMBLY
    SERIAL 03469128-09999999
  • 11
    10-47618 SCREW, TRIGGER ATTACHING (1")
    SCREW, TRIGGER ATTACHING (1")
  • 12
    13-26996 LOCKWASHER, TRIGGER ATTACHING SCREW
    LOCKWASHER, TRIGGER ATTACHING SCREW
  • 13
    10-26595 SCREW, ADAPTOR HOUSING FASTENING (3-4")
    SCREW, ADAPTOR HOUSING FASTENING (3-4")
  • 14
    13-26995 LOCKWASHER, ADAPTOR HOUSING SCREW
    LOCKWASHER, ADAPTOR HOUSING SCREW
  • 15
    52618 WIRE, GROUND
    SERIAL 03469128-09999999
    WIRE, GROUND
    SERIAL 03469128-09999999
  • 16
    43-47649 GEAR, DISTRIBUTOR(R. H. CRANKSHAFT ROTATION)
    SEE NOTE SERIAL 00000000-03469127
    GEAR, DISTRIBUTOR(R. H. CRANKSHAFT ROTATION)
    SEE NOTE SERIAL 00000000-03469127
  • 16
    43-8M0115498 GEAR, DISTRIBUTOR(R. H. CRANKSHAFT ROTATION)
    SEE NOTE SERIAL 00000000-03469127
    GEAR, DISTRIBUTOR(R. H. CRANKSHAFT ROTATION)
    SEE NOTE SERIAL 00000000-03469127
  • 16
    43-8M0115498 GEAR, DISTRIBUTOR
    SERIAL 03469128-09999999
    GEAR, DISTRIBUTOR
    SERIAL 03469128-09999999
  • 17
    17-47617 ROLL PIN, GEAR TO DISTRIBUTOR
    ROLL PIN, GEAR TO DISTRIBUTOR
  • 18
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 19
    54-88731 CLAMP, DISTRIBUTOR TO INTAKE MANIFORD
    CLAMP, DISTRIBUTOR TO INTAKE MANIFORD
  • 20
    10-54528 SCREW, DISTRIBUTOR CLAMP ATTACHING (1")
    SCREW, DISTRIBUTOR CLAMP ATTACHING (1")
  • 21
    10-98257 SCREW, DISTRIBUTOR GROUND WIRE
    SCREW, DISTRIBUTOR GROUND WIRE
  • 22
    84-821945A13 LEAD ASSEMBLY, DISTRIBUTOR TO COIL 913 1/2")
    SERIAL 00000000-03469127
    LEAD ASSEMBLY, DISTRIBUTOR TO COIL 913 1/2")
    SERIAL 00000000-03469127
  • 22
    84-821945A36 LEAD ASSEMBLY, DISTRIBUTOR TO COIL (16")
    SERIAL 03469128-09999999
    LEAD ASSEMBLY, DISTRIBUTOR TO COIL (16")
    SERIAL 03469128-09999999
  • 23
    332-2854T01 BOOT, COIL TOWER
    BOOT, COIL TOWER
  • 24
    32782 RETAINER, HIGH TENSION LEADS (2WIRE)
    RETAINER, HIGH TENSION LEADS (2WIRE)
  • 24
    32783 RETAINER, HIGH TENSION LEADS (3 WIRE)
    RETAINER, HIGH TENSION LEADS (3 WIRE)
  • 24
    32784 RETAINER, HIGH TENSION LEADS (4 WIRE)
    RETAINER, HIGH TENSION LEADS (4 WIRE)
  • 25
    63319 RETAINER, HIGH TENSION LEADS
    SERIAL 02508319-03469127
    RETAINER, HIGH TENSION LEADS
    SERIAL 02508319-03469127
  • 26
    10-64278 SCREW, RETAINER TO CYLINDER BLOCK
    SERIAL 02508319-03469127
    SCREW, RETAINER TO CYLINDER BLOCK
    SERIAL 02508319-03469127
  • 27
    84-815297A39 LEAD ASEMBLY, HIGH TENSION (44")
    LEAD ASEMBLY, HIGH TENSION (44")
  • 27
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (42")
    LEAD ASSEMBLY, HIGH TENSION (42")
  • 27
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (37")
    LEAD ASSEMBLY, HIGH TENSION (37")
  • 27
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (33")
    LEAD ASSEMBLY, HIGH TENSION (33")
  • 27
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (28")
    LEAD ASSEMBLY, HIGH TENSION (28")
  • 28
    85-63709A1 PROTECTOR, SPARK PLUG
    PROTECTOR, SPARK PLUG
  • 29
    33-68546 SPARK PLUG, (ACV-40NK)
    SERIAL 00000000-03042730
    SPARK PLUG, (ACV-40NK)
    SERIAL 00000000-03042730
  • 29
    33-8134214 SPARK PLUG, (AC-MR 41T)
    SERIAL 03042731-09999999
    SPARK PLUG, (AC-MR 41T)
    SERIAL 03042731-09999999
  • 30
    47763 BRACKET, RETAINER - HIGH TENSION LEADS
    SERIAL 03469128-09999999
    BRACKET, RETAINER - HIGH TENSION LEADS
    SERIAL 03469128-09999999
  • 31
    25-38930 GROMMET, RETAINER BRACKET
    SERIAL 03469128-09999999
    GROMMET, RETAINER BRACKET
    SERIAL 03469128-09999999
  • 32
    10-98261 SCREW, RETAINER BRACKET TO CYLINDER HEAD (3/4")
    SERIAL 03469128-09999999
    SCREW, RETAINER BRACKET TO CYLINDER HEAD (3/4")
    SERIAL 03469128-09999999
  • 33
    13-35048 LOCKWASHER, RETAINER BRACKET SCREW
    SERIAL 03469128-09999999
    LOCKWASHER, RETAINER BRACKET SCREW
    SERIAL 03469128-09999999
