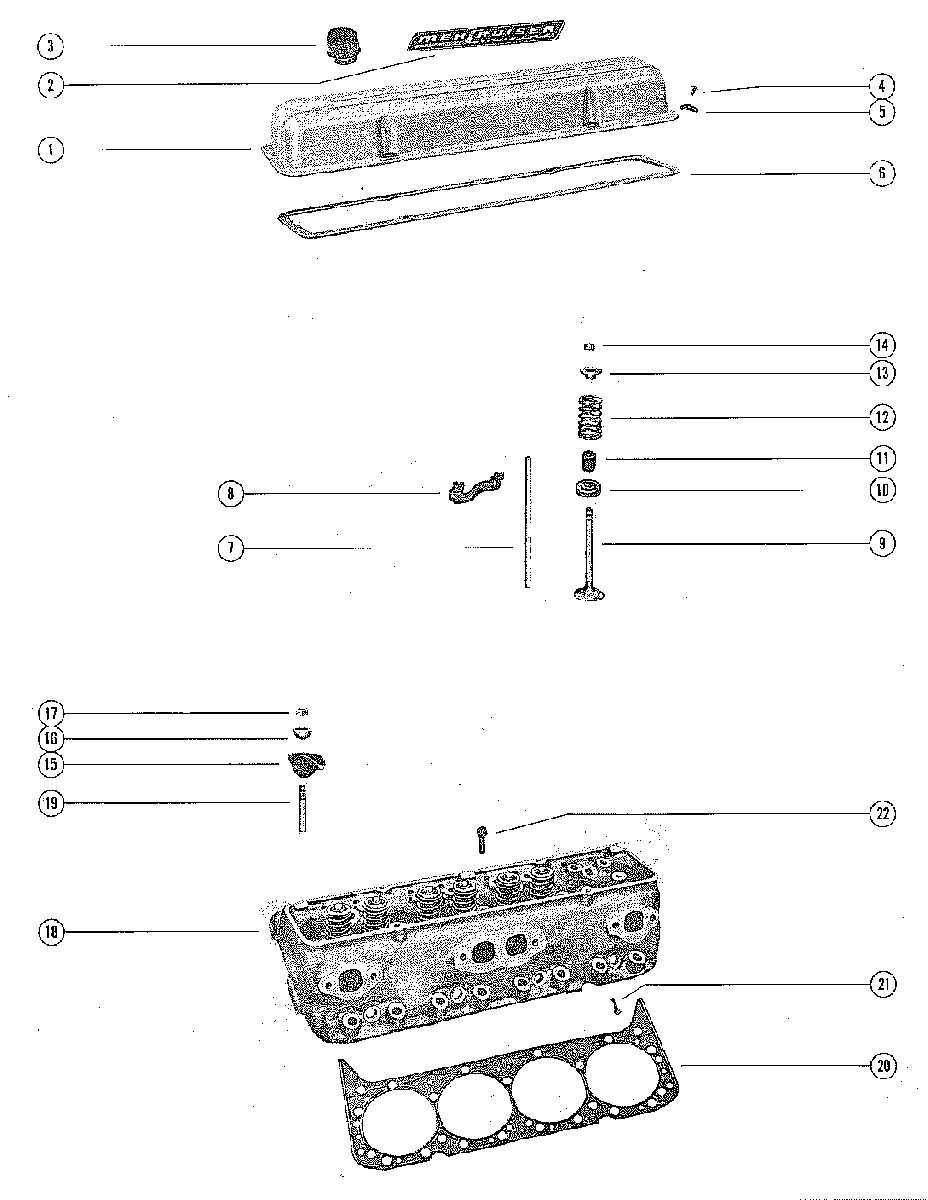

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 325 GM 427 V-8 1969-1972 2278747 THRU 3780449

  • №
    Артикул
    Название
  • 1
    49176 COVER, ROCKER VALVE (RIGHT)
    SERIAL 00000000-03042730
    COVER, ROCKER VALVE (RIGHT)
    SERIAL 00000000-03042730
  • 1
    59971 COVER, ROCKER VALVE (RIGHT)
    SERIAL 03042731-03469127
    COVER, ROCKER VALVE (RIGHT)
    SERIAL 03042731-03469127
  • 1
    66199 COVER, RICKER VALVE (RIGHT)
    SERIAL 03469128-03640670
    COVER, RICKER VALVE (RIGHT)
    SERIAL 03469128-03640670
  • 1
    17671 COVER, ROCKER VALVE (RIGHT)
    SERIAL 03640671-09999999
    COVER, ROCKER VALVE (RIGHT)
    SERIAL 03640671-09999999
  • 1
    49175 COVER, ROCKER VALVE (LEFT)
    SERIAL 00000000-02760341
    COVER, ROCKER VALVE (LEFT)
    SERIAL 00000000-02760341
  • 1
    58234 COVER, ROCKER VALVE (LEFT)
    SERIAL 02760342-03042730
    COVER, ROCKER VALVE (LEFT)
    SERIAL 02760342-03042730
  • 1
    17671 COVER, ROCKER VALVE (LEFT)
    SERIAL 03042731-03640670
    COVER, ROCKER VALVE (LEFT)
    SERIAL 03042731-03640670
  • 1
    17671 COVER, ROCKER VALVE (LEFT)
    SERIAL 03640671-09999999
    COVER, ROCKER VALVE (LEFT)
    SERIAL 03640671-09999999
  • 2
    37-34443 DECAL, ROCKER VALVE COVER
    SERIAL 00000000-02508318
    DECAL, ROCKER VALVE COVER
    SERIAL 00000000-02508318
  • 2
    37-47667 DECAL, ROCKER VALVE COVER
    SERIAL 02508319-03042730
    DECAL, ROCKER VALVE COVER
    SERIAL 02508319-03042730
  • 2
    37-57801 DECAL, ROCKER VALVE COVER
    SERIAL 03042731-09999999
    DECAL, ROCKER VALVE COVER
    SERIAL 03042731-09999999
  • 3
    17345 CAP, OIL FILLER
    NOT AS SHOWN SERIAL 00000000-03042730
    CAP, OIL FILLER
    NOT AS SHOWN SERIAL 00000000-03042730
  • 3
    36-807152 CAP, OIL FILLER
    NOT AS SHOWN SERIAL 03042731-09999999
    CAP, OIL FILLER
    NOT AS SHOWN SERIAL 03042731-09999999
  • 4
    10-8M0040582 SCREW, COVER TO CYLINDER HEAD (1/2")
    SERIAL 00000000-02760341
    SCREW, COVER TO CYLINDER HEAD (1/2")
    SERIAL 00000000-02760341
  • 4
    10-58047 SCREW, COVER TO CYLINDER HEAD (1/2")
    SERIAL 02760342-09999999
    SCREW, COVER TO CYLINDER HEAD (1/2")
    SERIAL 02760342-09999999
  • 5
    49174 REINFORCEMENT, ROCKER VALVE COVER SCREW
    REINFORCEMENT, ROCKER VALVE COVER SCREW
  • 6
    27-49121 GASKET, ROCKER VALVE COVER
    GASKET, ROCKER VALVE COVER
  • 7
    49115 ROD, VALVE PUSH (INLET)
    ROD, VALVE PUSH (INLET)
  • 7
    49116 ROD, VALVE PUSH (EXHAUST)
    ROD, VALVE PUSH (EXHAUST)
  • 8
    49132 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 9
    49140 VALVE, EXHAUST (STANDARD)
    VALVE, EXHAUST (STANDARD)
  • 9
    49141 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 9
    49134 VALVE, INLET (STANDARD)
    VALVE, INLET (STANDARD)
  • 9
    49135 VALVE, INLET (.015 O.S.)
    VALVE, INLET (.015 O.S.)
  • 10
    23-49130 SPACER, EXHAUST VALVE SPRING (THICK)
    SPACER, EXHAUST VALVE SPRING (THICK)
  • 10
    15-49127 SHIM, INLET VALVE SPRING (THIN)
    SERIAL 00000000-02536059
    SHIM, INLET VALVE SPRING (THIN)
    SERIAL 00000000-02536059
  • 10
    15-845669 SHIM, INLET VALVE SPRING (THIN)
    SERIAL 02536060-09999999
    SHIM, INLET VALVE SPRING (THIN)
    SERIAL 02536060-09999999
  • 11
    26-75988 SEAL, VALVE
    SEAL, VALVE
  • 12
    24-49128 SPRING, VALVE
    SERIAL 00000000-03042730
    SPRING, VALVE
    SERIAL 00000000-03042730
  • 12
    24-58052 SPRING, VALVE 9
    SERIAL 03042731-03640670
    SPRING, VALVE 9
    SERIAL 03042731-03640670
  • 12
    24-66212 SPRING, VALVE 9
    SERIAL 03640671-09999999
    SPRING, VALVE 9
    SERIAL 03640671-09999999
  • 13
    49129 CAP, VALVE SPRING
    SERIAL 00000000-02313964
    CAP, VALVE SPRING
    SERIAL 00000000-02313964
  • 13
    52194 CAP, VALVE SPRING
    SERIAL 02313965-09999999
    CAP, VALVE SPRING
    SERIAL 02313965-09999999
  • 14
    28-54530 KEY, VALVE STEM
    KEY, VALVE STEM
  • 15
    19241 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 16
    49120 BALL UNIT, ROCKER VALVE ARM
    SERIAL 00000000-02760341
    BALL UNIT, ROCKER VALVE ARM
    SERIAL 00000000-02760341
  • 16
    58041 BALLL UNIT, ROCKER VALVE ARM
    SERIAL 02760342-09999999
    BALLL UNIT, ROCKER VALVE ARM
    SERIAL 02760342-09999999
  • 17
    11-49119 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 18
    938-3822 CYLINDER HEAD ASSEMBLY
    SERIAL 00000000-02536059
    CYLINDER HEAD ASSEMBLY
    SERIAL 00000000-02536059
  • 18
    938-3822 CYLINDHER HEAD ASSEMBLY
    SERIAL 02536060-03042730
    CYLINDHER HEAD ASSEMBLY
    SERIAL 02536060-03042730
  • 18
    938-5310 CYLINDER HEAD ASSEMBLY
    SERIAL 03042731-03640670
    CYLINDER HEAD ASSEMBLY
    SERIAL 03042731-03640670
  • 18
    938-5310 CYLINDER HEAD ASSEMBLY
    SERIAL 03640671-09999999
    CYLINDER HEAD ASSEMBLY
    SERIAL 03640671-09999999
  • 19
    16-49133 STUD, ROCKER VALVE ARM
    STUD, ROCKER VALVE ARM
  • 20
    27-8M0049045 GASKET, CYLINDER HEAD
    SERIAL 00000000-03640670
    GASKET, CYLINDER HEAD
    SERIAL 00000000-03640670
  • 20
    27-65184A1 GASKET, CYLINDER HEAD
    SERIAL 03640671-09999999
    GASKET, CYLINDER HEAD
    SERIAL 03640671-09999999
  • 21
    8M0102366 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2")
  • 22
    8M0102366 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (4 1/8")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (4 1/8")
