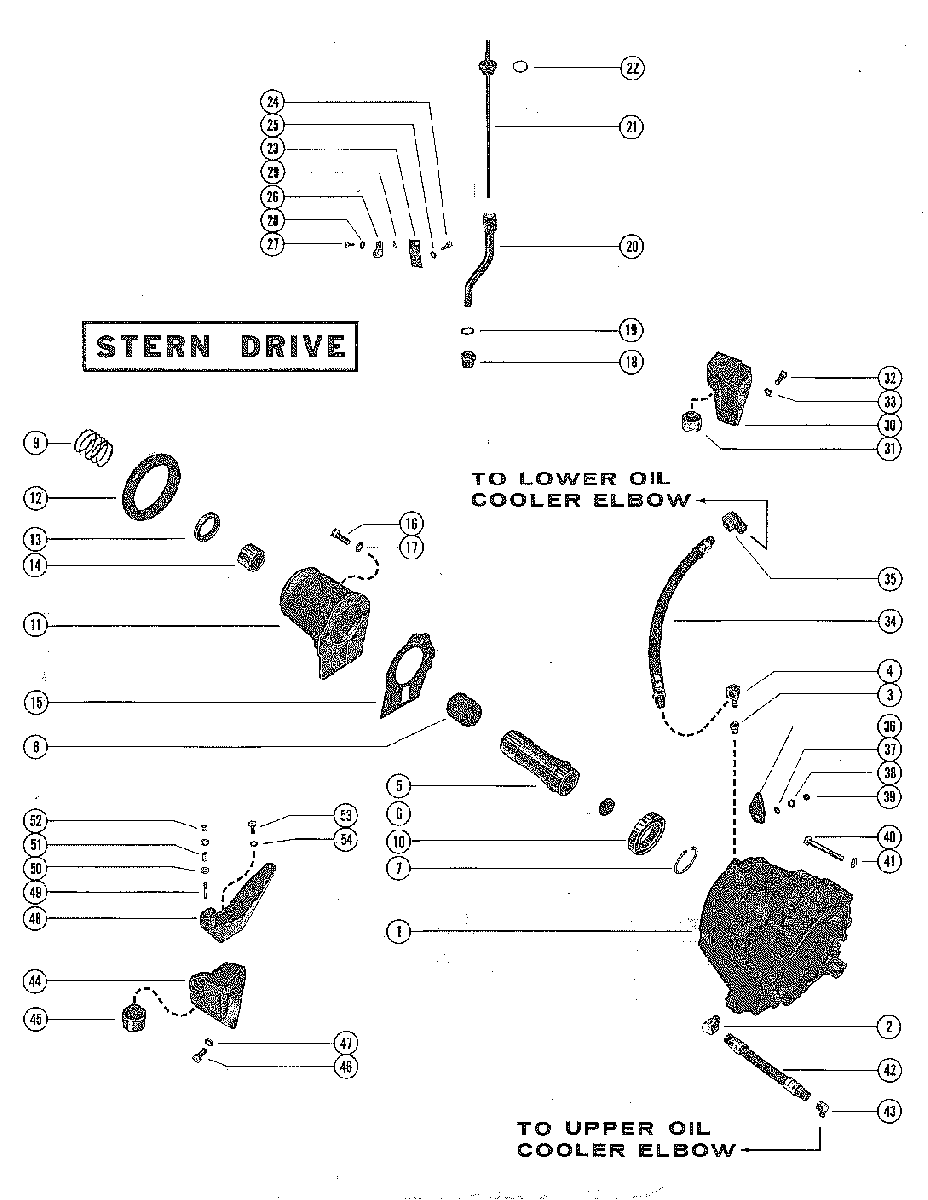

TRANSMISSION ASSEMBLY (STERN DRIVE) для Mercruiser - 325 GM 427 V-8 1969-1972 2278747 THRU 3780449

  • №
    Артикул
    Название
  • 1
    47754A3 TRANSMISSION ASSEMBLY
    TRANSMISSION ASSEMBLY
  • 2
    22-47629 ELBOW, TRANSMISSIO TO OIL HOSE
    ELBOW, TRANSMISSIO TO OIL HOSE
  • 3
    23-36159 BUSHING, RUDUCING - TRANSMISSION ELBOW
    BUSHING, RUDUCING - TRANSMISSION ELBOW
  • 4
    22-47631 ELBOW, TRANSMISSION TO OIL HOSE
    ELBOW, TRANSMISSION TO OIL HOSE
  • 5
    47339A4 ENGINE COUPLING ASSEMBLY, TRANSMISSION
    ENGINE COUPLING ASSEMBLY, TRANSMISSION
  • 6
    19-47463 PLUG, EXPANSION - ENGINE COUPLING
    PLUG, EXPANSION - ENGINE COUPLING
  • 7
    53-47469 RING, SNAP - BALL BEARING TO ENGINE COUPLING
    RING, SNAP - BALL BEARING TO ENGINE COUPLING
  • 8
    23-47471T BEARING, ENGINE COUPLING
    BEARING, ENGINE COUPLING
  • 9
    24-47755 SPRING, GUIDE - ENGINE COUPLING
    SPRING, GUIDE - ENGINE COUPLING
  • 10
    30-47470 BALL BEARING, ENGINE COUPLING TO TRANSMISSION
    BALL BEARING, ENGINE COUPLING TO TRANSMISSION
  • 11
    47333A1 HOUSING ASSEMBLY, BEARING SUPPORT
    HOUSING ASSEMBLY, BEARING SUPPORT
  • 12
    25-47756 "O" RING, BEARING SUPPORT HOUSING
    "O" RING, BEARING SUPPORT HOUSING
  • 13
    26-47465 OIL SEAL, BEARING SUPPORT HOUSING
    OIL SEAL, BEARING SUPPORT HOUSING
  • 14
    31-47468T ROLLER BEARING, BEARING SUPPORT HOUSING
    ROLLER BEARING, BEARING SUPPORT HOUSING
  • 15
    27-47903 GASKET, BEARING SUPPORT HOUSING
    GASKET, BEARING SUPPORT HOUSING
  • 16
    10-47462 SCREW, BEARING SUPPORT HOUSING TO TRANSMISSION (1 1/4")
    SCREW, BEARING SUPPORT HOUSING TO TRANSMISSION (1 1/4")
  • 17
    13-32993 LOCKWASHER, BEARING SUPPORT HOUSING SCREW
    LOCKWASHER, BEARING SUPPORT HOUSING SCREW
  • 18
    48461 ADAPTOR, OIL LEVEL GAUGE TUBE TO TRANSMISSION
    ADAPTOR, OIL LEVEL GAUGE TUBE TO TRANSMISSION
  • 19
    25-48462 "O" RING, OIL LEVEL TUBE ADAPTOR
    "O" RING, OIL LEVEL TUBE ADAPTOR
  • 20
    48463 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 21
    48464 GAUGE, OIL LEVEL
    GAUGE, OIL LEVEL
  • 22
    25-35276 "O" RING, OIL LEVEL GAUGE
    "O" RING, OIL LEVEL GAUGE
  • 23
    48466 BRACKET, MOUNTING - OIL LEVEL GAUGE TUBE
    BRACKET, MOUNTING - OIL LEVEL GAUGE TUBE
  • 24
    10-34290 SCREW, MONTING BRACKET TO TRANSMISSION MOUNT BRACKET (5/8")
    SCREW, MONTING BRACKET TO TRANSMISSION MOUNT BRACKET (5/8")
  • 25
    13-26992 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 26
    54-48465 CLAMP, OIL LEVEL GAUGE TUBE TO MOUNTING BRACKET
    CLAMP, OIL LEVEL GAUGE TUBE TO MOUNTING BRACKET
  • 27
    10-98256 SCREW, OIL LEVEL GAUGE TUBE CLAMP
    SCREW, OIL LEVEL GAUGE TUBE CLAMP
  • 28
    13-26992 LOCKWASHER, OIL LEVEL GAUGE TUBE CLAMP SCREW
    LOCKWASHER, OIL LEVEL GAUGE TUBE CLAMP SCREW
  • 29
    11-21825 NUT, OIL LEVEL GAUGE TUBE CLAMP SCREW
    NUT, OIL LEVEL GAUGE TUBE CLAMP SCREW
  • 30
    47340A1 BRACKET ASSEMBLY, TRAMISSION MOUNT (PORT)
    BRACKET ASSEMBLY, TRAMISSION MOUNT (PORT)
  • 31
    35852 MOUNT, TRANSMISSION MOUNT BRACKTE
    MOUNT, TRANSMISSION MOUNT BRACKTE
  • 32
    10-47462 SCREW, MOUNT BRACKET TO TRANSMISSION (1 1/4")
    SCREW, MOUNT BRACKET TO TRANSMISSION (1 1/4")
  • 33
    13-32993 LOCKWASHER, MOUNT BRACKET SCREW
    LOCKWASHER, MOUNT BRACKET SCREW
  • 34
    32-4751612 HOSE, TRANSMISSION TO OIL COOLER (16 3/4")
    HOSE, TRANSMISSION TO OIL COOLER (16 3/4")
  • 35
    22-47630 ELBOW, TRANSMISSION HOSE
    ELBOW, TRANSMISSION HOSE
  • 36
    12128 LEVER, SHIFT - TRANSMISSION
    LEVER, SHIFT - TRANSMISSION
  • 37
    12-20722 WASHER, SHIFT LEVER TO TRANSMISSION
    WASHER, SHIFT LEVER TO TRANSMISSION
  • 38
    13-26993 LOCKWASHER, SHIFT LEVER TO TRANSMISSION
    LOCKWASHER, SHIFT LEVER TO TRANSMISSION
  • 39
    11-22053 NUT, SHIFT LEVER TO TRANSMISSION
    NUT, SHIFT LEVER TO TRANSMISSION
  • 40
    10-60179 SCREW, TRANSMISSION TO ENGINE (3 3/2")
    SCREW, TRANSMISSION TO ENGINE (3 3/2")
  • 41
    13-32993 LOCKWASHER, TRANSMISSION SCREW
    LOCKWASHER, TRANSMISSION SCREW
  • 42
    32-475163 HOSE, TRANSMISSION TO OIL COVER (7 7/8")
    HOSE, TRANSMISSION TO OIL COVER (7 7/8")
  • 43
    22-47630 ELBOW, HOSE TO OIL COOLER
    ELBOW, HOSE TO OIL COOLER
  • 44
    47334A1 BRACKET ASSEMBLY, TRANSMISSION MOUNT (STARBOARD)
    BRACKET ASSEMBLY, TRANSMISSION MOUNT (STARBOARD)
  • 45
    35852 MOUNT, TRANSMISSION MOUNT BRACKET
    MOUNT, TRANSMISSION MOUNT BRACKET
  • 46
    10-47462 SCREW, MOUNT BRACKET TO TRANSMISSION (1 1/4")
    SCREW, MOUNT BRACKET TO TRANSMISSION (1 1/4")
  • 47
    13-32993 LOCKWASHER, MOUNT BRACKET SCREW
    LOCKWASHER, MOUNT BRACKET SCREW
  • 48
    47335A1 BRACKET ASSEMBLY, SHIFT SUPPORT
    BRACKET ASSEMBLY, SHIFT SUPPORT
  • 49
    16-728091 STUD, SHIFT SUPPORT BRACKET
    STUD, SHIFT SUPPORT BRACKET
  • 50
    12-69056 WASHER, SHIFT SUPPORT BRACKET STUD
    WASHER, SHIFT SUPPORT BRACKET STUD
  • 51
    23-31866 SPACER, SHIFT SUPPORT BRACKET STUD
    SPACER, SHIFT SUPPORT BRACKET STUD
  • 52
    11-826709109 NUT, SHIFT SUPPORT BRACKET STUD
    NUT, SHIFT SUPPORT BRACKET STUD
  • 53
    10-35386 SCREW, SHIFT SUPPORT BRACKET TO MOUNT BRACKET (1")
    SCREW, SHIFT SUPPORT BRACKET TO MOUNT BRACKET (1")
  • 54
    13-26993 LOCKWASHER, SHIFT SUPPORT BRACKET SCREW
    LOCKWASHER, SHIFT SUPPORT BRACKET SCREW
