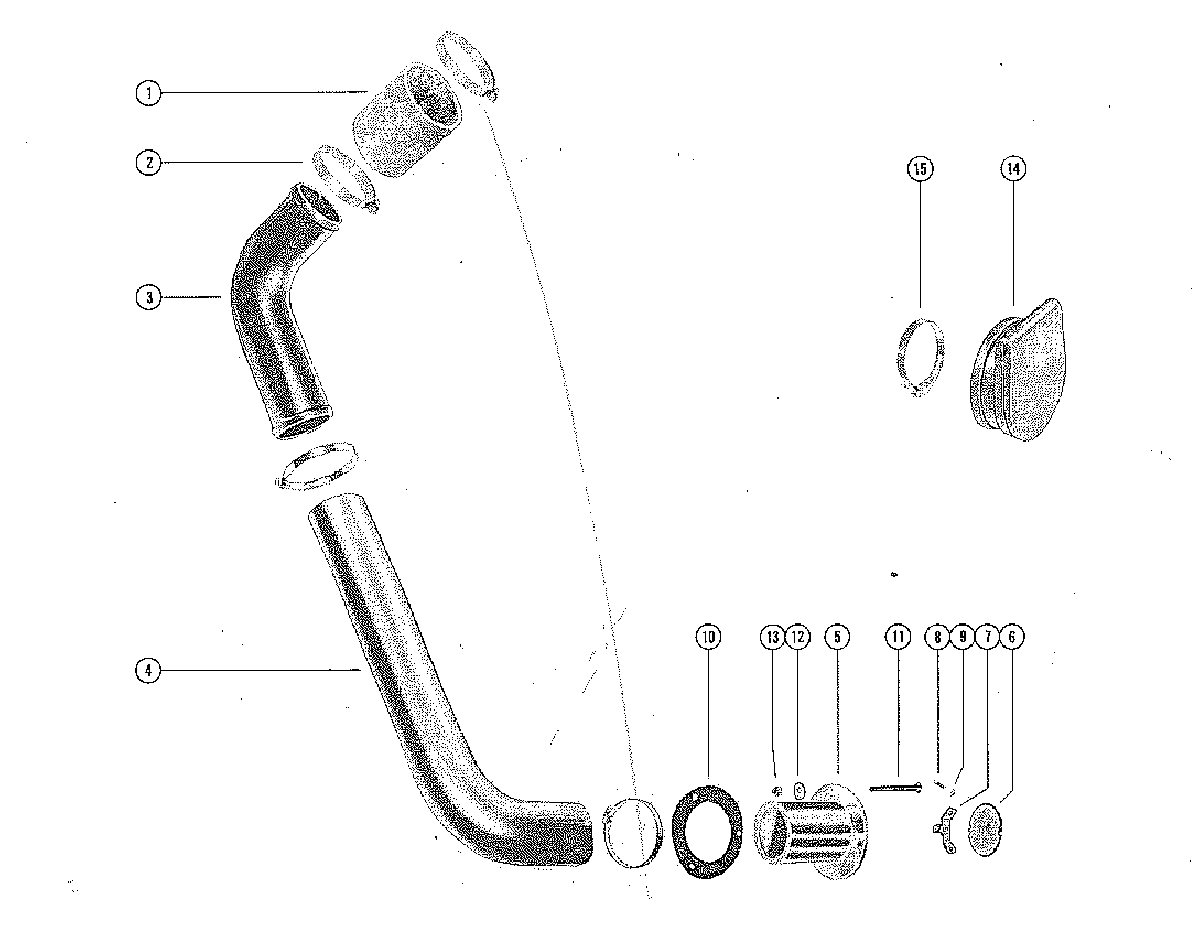

EXHAUST KIT для Mercruiser - 325 GM 427 V-8 1969-1972 2278747 THRU 3780449

  • №
    Артикул
    Название
  • -
    48639A2 EXHAUST KIT
    SERIAL 00000000-02760341
    EXHAUST KIT
    SERIAL 00000000-02760341
  • -
    4839A2 EXHAUST KIT
    SERIAL 02760342-09999999
    EXHAUST KIT
    SERIAL 02760342-09999999
  • 1
    32-486594 HOSE, EXHAUST
    HOSE, EXHAUST
  • 2
    54-815504456 CLAMP, HOSE ATTSACHING
    CLAMP, HOSE ATTSACHING
  • 3
    48639T PIPE, EXHAUST
    PIPE, EXHAUST
  • 4
    32-33645 TUBE, EXHAUST - EXHAUST HOSE (SEE NOTE BELOW)
    TUBE, EXHAUST - EXHAUST HOSE (SEE NOTE BELOW)
  • 5
    57885A1 FLANGE, EXHAUST HOSE
    FLANGE, EXHAUST HOSE
  • 5
    57885A1 FLANGE ASSEMBLY, EXHAUST HOSE
    FLANGE ASSEMBLY, EXHAUST HOSE
  • 6
    57887 SHUTTER, EXHAUST FLANGE
    SHUTTER, EXHAUST FLANGE
  • 7
    57886 BRACKET, SUPPORT - EXHAUST FLANGE SHUTTER
    BRACKET, SUPPORT - EXHAUST FLANGE SHUTTER
  • 8
    10-37655 SCREW, BRACKET TO EXHAUST FLANGE
    SCREW, BRACKET TO EXHAUST FLANGE
  • 9
    11-859124 NUT, EXHAUST FLANGE BRACKET SCREW
    NUT, EXHAUST FLANGE BRACKET SCREW
  • 10
    392-3360 GASKET, EXHAUST HOSE FLANGE
    GASKET, EXHAUST HOSE FLANGE
  • 11
    10-33684 SCREW ,HOSER FLANGE TO BOAT
    SCREW ,HOSER FLANGE TO BOAT
  • 12
    12-25908 WASHER, HOSE FLANGE SCREW
    WASHER, HOSE FLANGE SCREW
  • 13
    11-8267089 NUT, HOSE FLANGE SCREW
    NUT, HOSE FLANGE SCREW
  • 14
    34765A2 COVER KIT, EXHAUST FLANGE
    COVER KIT, EXHAUST FLANGE
  • 15
    54-815504456 CLAMP, COVER TO FLANGE
    CLAMP, COVER TO FLANGE
