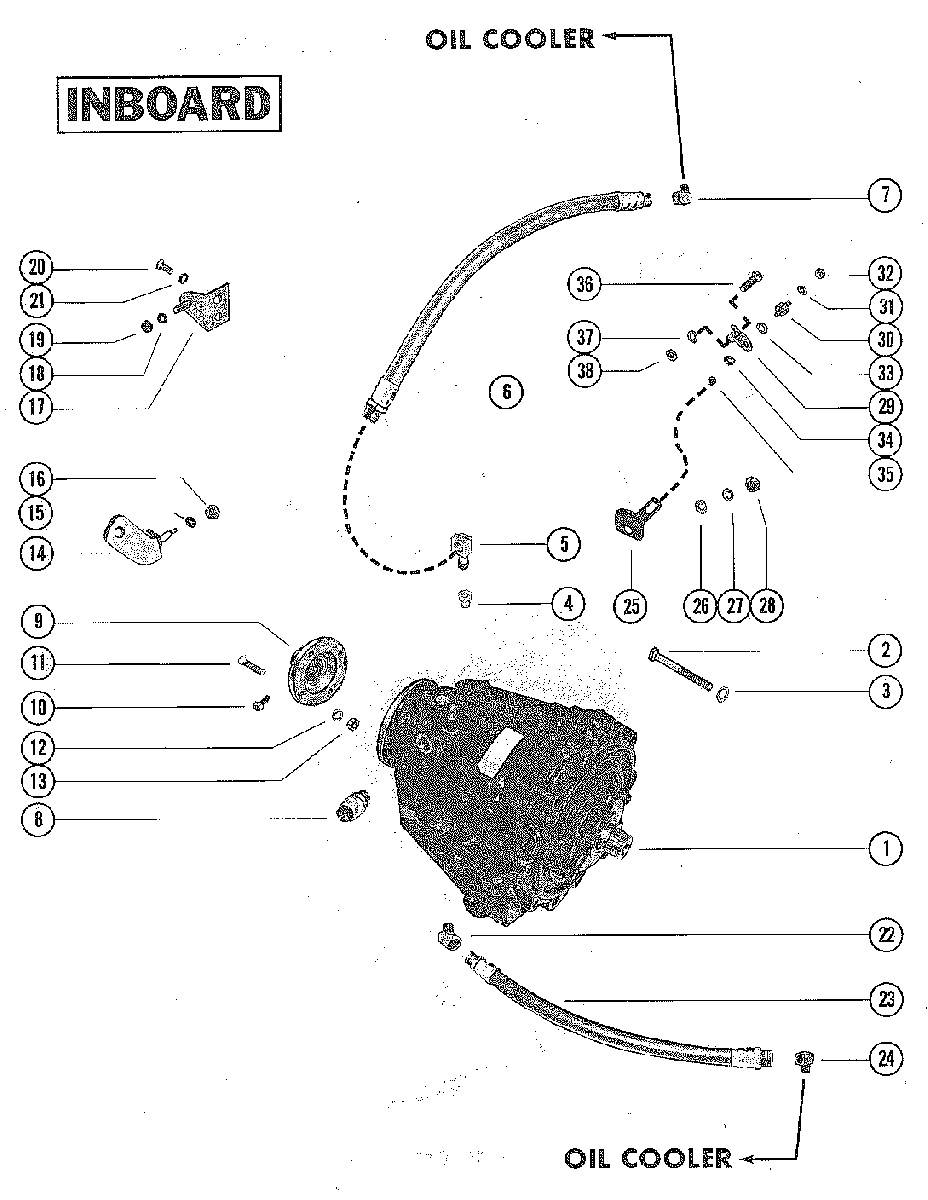

TRANSMISSION ASSEMBLY (INBOARD) для Mercruiser - 325 GM 427 V-8 1969-1972 2278747 THRU 3780449
-
№АртикулНазвание
-
147810A19 TRANSMISSION (DIRECT DRIVE)
72 SERIESTRANSMISSION (DIRECT DRIVE)
72 SERIES -
147811A7 TRANSMISSION (1.523:1 REDUCTION)
72 SERIESTRANSMISSION (1.523:1 REDUCTION)
72 SERIES -
147812A7 TRANSMISSION (1.909:1 REDUCTION)
72 SERIESTRANSMISSION (1.909:1 REDUCTION)
72 SERIES -
147813A7 TRANSMISSION (2.57:1 REDUCTION)
72 SERIESTRANSMISSION (2.57:1 REDUCTION)
72 SERIES -
147814A7 TRANSMISSION (2.909:1 REDUCTION)
72 SERIESTRANSMISSION (2.909:1 REDUCTION)
72 SERIES -
210-60179 SCREW, TRANSMISSION TO ENGINE (3 1/2")SCREW, TRANSMISSION TO ENGINE (3 1/2")
-
313-32993 LOCKWASHER, TRANSMISSION SCREWLOCKWASHER, TRANSMISSION SCREW
-
423-36159 BUSHING, REDUCING - TRANSMISSION ELBOW
SERIAL 00000000-03469127BUSHING, REDUCING - TRANSMISSION ELBOW
SERIAL 00000000-03469127 -
522-47631 ELBOW, HOSE TO TRANSMISSION (90)
SERIAL 00000000-03469127ELBOW, HOSE TO TRANSMISSION (90)
SERIAL 00000000-03469127 -
632-4751612 HOSE, TRANSMISSION TO OIL COOLER (16 3/4")
SERIAL 00000000-03469127HOSE, TRANSMISSION TO OIL COOLER (16 3/4")
SERIAL 00000000-03469127 -
722-47630 ELBOW, HOSE TO OIL COOLER (90)
SERIAL 00000000-03469127ELBOW, HOSE TO OIL COOLER (90)
SERIAL 00000000-03469127 -
522-63824 ELBOW, HOSE TO TRANSMISSION (90)
SERIAL 03469128-09999999ELBOW, HOSE TO TRANSMISSION (90)
SERIAL 03469128-09999999 -
632-475166 HOSE, TRANSMISSION TO OIL COOLER (30")
SERIAL 03469128-09999999HOSE, TRANSMISSION TO OIL COOLER (30")
SERIAL 03469128-09999999 -
722-47629 ELBOW, HOSTE TO OIL COOLER (90)
SERIAL 03469128-09999999ELBOW, HOSTE TO OIL COOLER (90)
SERIAL 03469128-09999999 -
847613 SWITCH, NEUTRAL SAFETYSWITCH, NEUTRAL SAFETY
-
979476A1 FLANGE ASSEMBLY (1")FLANGE ASSEMBLY (1")
-
979476A2 FLANGE ASSEMBLY (1 1/8")FLANGE ASSEMBLY (1 1/8")
-
979476A3 FLAMGE ASSEMBLY (1 1/4")FLAMGE ASSEMBLY (1 1/4")
-
979476A4 FLANGE ASSEMBLY (1 3/8")FLANGE ASSEMBLY (1 3/8")
-
979476A5 FLANGE ASSEMBLY (1 1/2")FLANGE ASSEMBLY (1 1/2")
-
979476A6 FLANGE ASSEMBLY (1 3/4")FLANGE ASSEMBLY (1 3/4")
-
979476A7 FLANGE ASSEMBLY (2")FLANGE ASSEMBLY (2")
-
1010-60171 SCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
SEE NOTE BELOWSCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
SEE NOTE BELOW -
1010-60171 SCREW, FLANGE TO PROPELLER SHAFT (1")
SEE NOTE BELOWSCREW, FLANGE TO PROPELLER SHAFT (1")
SEE NOTE BELOW -
1010-60169 SCREW, FLANGE TO PROPELLER SHAFT (3/4")
SEE NOTE BELOWSCREW, FLANGE TO PROPELLER SHAFT (3/4")
SEE NOTE BELOW -
1110-60106 SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")
-
1213-32993 LOCKWASHER, FLANGE SCREWLOCKWASHER, FLANGE SCREW
-
1311-22024 NUT, FLANGE SCREWNUT, FLANGE SCREW
-
1448649 BRACKET, SHIFT CABLE
SERIAL 00000000-03469127BRACKET, SHIFT CABLE
SERIAL 00000000-03469127 -
1512-56681 WASHER, SHIFT CABLE TO BRACKET STUD
SERIAL 00000000-03469127WASHER, SHIFT CABLE TO BRACKET STUD
SERIAL 00000000-03469127 -
1611-46438 NUT, SHIFT CABLE TO BRACKET STUD (10-32)
SERIAL 00000000-03469127NUT, SHIFT CABLE TO BRACKET STUD (10-32)
SERIAL 00000000-03469127 -
1763815A2 BRACKET ASSEMBLY, SHIFT CABLE SERIAL # AND UP
SERIAL 03469128-09999999BRACKET ASSEMBLY, SHIFT CABLE SERIAL # AND UP
SERIAL 03469128-09999999 -
1812-56681 WASHER, SHIFT CABLE STUD
SERIAL 03469128-09999999WASHER, SHIFT CABLE STUD
SERIAL 03469128-09999999 -
1911-46438 NUT, SHIFT CABLE STUD
SERIAL 03469128-09999999NUT, SHIFT CABLE STUD
SERIAL 03469128-09999999 -
2010-65746 SCREW, BRACKET TO FLYWHEEL HOUSING (3/4")
SERIAL 03469128-09999999SCREW, BRACKET TO FLYWHEEL HOUSING (3/4")
SERIAL 03469128-09999999 -
2113-26992 LOCKWASHER, BRACKET SCREW
SERIAL 03469128-09999999LOCKWASHER, BRACKET SCREW
SERIAL 03469128-09999999 -
2222-47629 ELBOW, HOSE TO TRANSMISSION (90)
SERIAL 00000000-03469127ELBOW, HOSE TO TRANSMISSION (90)
SERIAL 00000000-03469127 -
2332-475163 HOSE, OIL COOLER TO TRANSMISSION (7 7/8")
SERIAL 00000000-03469127HOSE, OIL COOLER TO TRANSMISSION (7 7/8")
SERIAL 00000000-03469127 -
2423-47603 ELBOW, HOSE TO OIL COOLER (90)
SERIAL 00000000-03469127ELBOW, HOSE TO OIL COOLER (90)
SERIAL 00000000-03469127 -
2222-63835 ELBOW, HOSE TO TRANSMISSION (45)
SERIAL 03469128-09999999ELBOW, HOSE TO TRANSMISSION (45)
SERIAL 03469128-09999999 -
2332-4751612 HOSE, OIL COOLER TO TRANSMISSIN (16 3/4")
SERIAL 03469128-09999999HOSE, OIL COOLER TO TRANSMISSIN (16 3/4")
SERIAL 03469128-09999999 -
2422-47629 ELBOW, HOSE TO OIL COOLER (90)
SERIAL 03469128-09999999ELBOW, HOSE TO OIL COOLER (90)
SERIAL 03469128-09999999 -
2548515 LEVER, SHIFT - TRANSMISSIONLEVER, SHIFT - TRANSMISSION
-
2612-20722 WASHER, SHIFT LEVER TO TRANSMISSIONWASHER, SHIFT LEVER TO TRANSMISSION
-
2713-26993 LOCKWASHER, SHIFT LEVER TO TRANSMISSIONLOCKWASHER, SHIFT LEVER TO TRANSMISSION
-
2811-22053 NUT, SHIFT LEVER TO TRANSMISSIONNUT, SHIFT LEVER TO TRANSMISSION
-
2948652 ADAPTOR, SHIFT CABLE TO SHIFT LEVERADAPTOR, SHIFT CABLE TO SHIFT LEVER
-
3016-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
-
3112-20533 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
3211-20184 NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
-
3313-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUDWAVE WASHER, SHIFT CABLE ADAPTOR STUD
-
3412-56681 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
3511-46438 NUT, SHIFT CABLE ADAPTOR STUD (10-32)NUT, SHIFT CABLE ADAPTOR STUD (10-32)
-
3610-20639 SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
-
3712-22753 WASHER, SHIFT CABLE SCREWWASHER, SHIFT CABLE SCREW
-
3811-29250 NUT, SHIFT CABLE SCREW (5/16-24)NUT, SHIFT CABLE SCREW (5/16-24)
