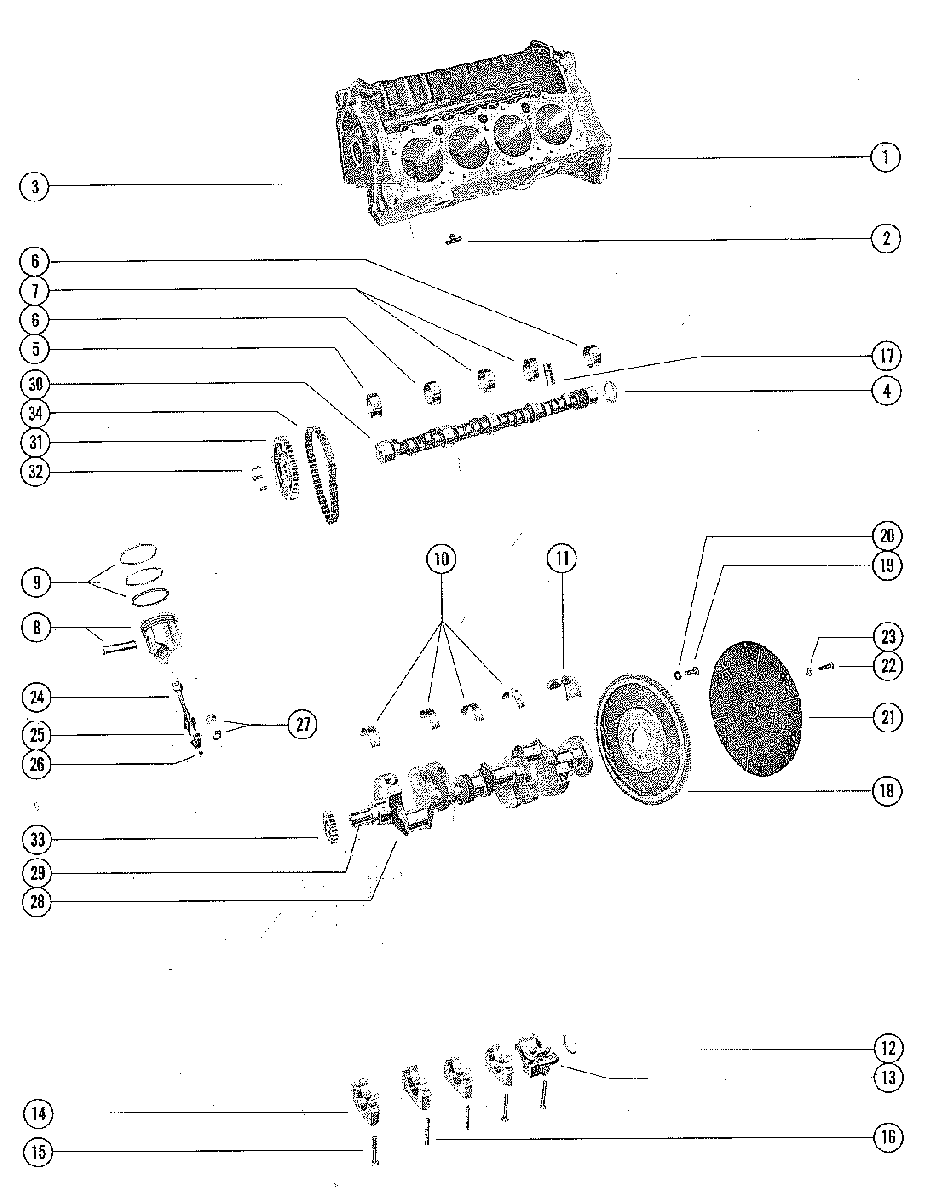

CYLINDER BLOCK, PISTONS AND CRANKSHAFT для Mercruiser - 325 GM 427 V-8 1969-1972 2278747 THRU 3780449
-
№АртикулНазвание
-
1842-3821 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
-22-428611 PLUG, PIPE - CYLINDER BLOCK (3/4")PLUG, PIPE - CYLINDER BLOCK (3/4")
-
-22-69300 PLUG, EXPANSION - CYLINDER BLOCK (1 3/4")PLUG, EXPANSION - CYLINDER BLOCK (1 3/4")
-
-22-32561 PLUG, PIPE - CYLINDER BLOCK (1/4")PLUG, PIPE - CYLINDER BLOCK (1/4")
-
-22-36373 PLUG, PIPE - CYLINDER BLOCK (3/8-18")PLUG, PIPE - CYLINDER BLOCK (3/8-18")
-
-22-12524 PLUG, PIPE - CYLINDER BLOCK (3/8")PLUG, PIPE - CYLINDER BLOCK (3/8")
-
222-16951Q1 DRAIN COCK - CLINDER BLOCKDRAIN COCK - CLINDER BLOCK
-
317-52190 PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEADPIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
-
419-94140 PLUG, EXPANSION - CAMSHAFT BEARING HOLEPLUG, EXPANSION - CAMSHAFT BEARING HOLE
-
523-49150 BEARING UNIT, CAMSHAFT (FRONT)BEARING UNIT, CAMSHAFT (FRONT)
-
623-85684 BEARING UNIT, CAMSHAFT (FRONT INTEMEDIATE AND REAR)BEARING UNIT, CAMSHAFT (FRONT INTEMEDIATE AND REAR)
-
723-49152 BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMEDIATE)BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMEDIATE)
-
8737-3949 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
USE STANDARD RINGPISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
USE STANDARD RING -
8737-3425 PISTON AND PITSON PIN ASSEMBLY (.030 O. S.)PISTON AND PITSON PIN ASSEMBLY (.030 O. S.)
-
939-67127 RING, PISTON - 8 SETS (STANDARD)
SERIAL 00000000-03640670RING, PISTON - 8 SETS (STANDARD)
SERIAL 00000000-03640670 -
939-67128 RING, PISTON - 8 SETS (.030 O.S.)
SERIAL 00000000-03640670RING, PISTON - 8 SETS (.030 O.S.)
SERIAL 00000000-03640670 -
939-67127 RING, PISTON - 8 SETS (STANDARD)
SERIAL 03640671-09999999RING, PISTON - 8 SETS (STANDARD)
SERIAL 03640671-09999999 -
939-67128 RING, PISTON - 8 SETS (.030 O.S.)
SERIAL 03640671-09999999RING, PISTON - 8 SETS (.030 O.S.)
SERIAL 03640671-09999999 -
1023-818473001 BEARING UNIT, CRANKSHAFT MAIN (STARDARD)BEARING UNIT, CRANKSHAFT MAIN (STARDARD)
-
1023-818474 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
-
1023-49160 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
-
1023-85724 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
-
1023-818477 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
-
1123-818473001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
-
1123-818474 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
-
1123-818475 BEARING UNIT, CRANKSHAFT MAIN - REAR (.022 U.S.)BEARING UNIT, CRANKSHAFT MAIN - REAR (.022 U.S.)
-
1123-818476001 BEARING UNIT, CRAKSHAFT MAIN - REAR (.010 U.S.)BEARING UNIT, CRAKSHAFT MAIN - REAR (.010 U.S.)
-
1123-818477 BEARING UNIT, CRANDSHAFT MAIN - REAR (.020 U.S.)BEARING UNIT, CRANDSHAFT MAIN - REAR (.020 U.S.)
-
1226-8M0062773 OIL SEAL, REAR CRANKSHAFT BEARING CAPOIL SEAL, REAR CRANKSHAFT BEARING CAP
-
1349142 CAP, REAR - CRANKSHAFT BEARINGCAP, REAR - CRANKSHAFT BEARING
-
1449143 CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARINGCAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
-
1510-49145 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 5/8")BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 5/8")
-
1510-49147 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
-
1616-49144 STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCKSTUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
-
1772638 LIFTER, DRAULIC VA;VE - TAPPET
SERIAL 00000000-02760341LIFTER, DRAULIC VA;VE - TAPPET
SERIAL 00000000-02760341 -
1772638 LIFTER, HYDRAULIC VALVE - TAPPET
SERIAL 02706342-03042730LIFTER, HYDRAULIC VALVE - TAPPET
SERIAL 02706342-03042730 -
18230-4614 FLYWHEEL ASSEMBLY
SERIAL 00000000-03042730FLYWHEEL ASSEMBLY
SERIAL 00000000-03042730 -
18230-4614 FLYWHEEL ASSEMBLY
SERIAL 03042731-09999999FLYWHEEL ASSEMBLY
SERIAL 03042731-09999999 -
1910-845757 SCREW, FLYWHEEL TO CRANKSHAFTSCREW, FLYWHEEL TO CRANKSHAFT
-
2013-39131 LOCKWASHER, FLYWHEEL SCREWLOCKWASHER, FLYWHEEL SCREW
-
21860125T DRIVE PLATE, FLYWHEELDRIVE PLATE, FLYWHEEL
-
2210-35091 SCREW, DRIVE PLATE TO FLYWHEELSCREW, DRIVE PLATE TO FLYWHEEL
-
2313-35048 LOCKWASHER, DRIVE PLATE SCREWLOCKWASHER, DRIVE PLATE SCREW
-
24614-8M0030663 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
2510-52192 BOLT, CONNECTING ROD CAPBOLT, CONNECTING ROD CAP
-
2611-37493 NUT, CONNECTING ROD CAP BOLTNUT, CONNECTING ROD CAP BOLT
-
2723-85726001 BEARING SET (8 PAIR), CONNECTING ROD (STANDARD)BEARING SET (8 PAIR), CONNECTING ROD (STANDARD)
-
2723-85727 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
-
2723-49170 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
-
2723-85691 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
-
2723-85729 BEARING UNIT (PAIR), CONNECTING ROD (.20 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.20 U.S.)
-
28429-3426 CRANKSHAFTCRANKSHAFT
-
--23-49124 CEARING, THRUST - CAMSHAFT GEAR DRIEN ENGINES 1CEARING, THRUST - CAMSHAFT GEAR DRIEN ENGINES 1
-
--23-49126 BEARING, PILOT - CRANKSHAFTBEARING, PILOT - CRANKSHAFT
-
2928-34466 KEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND BALANCERKEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND BALANCER
-
30431-4734 CAMSHAFT
CHAIN DRIVEN ENGINESCAMSHAFT
CHAIN DRIVEN ENGINES -
3143-61726 CAMSHAFT
CHAIN DRIVEN ENGINESCAMSHAFT
CHAIN DRIVEN ENGINES -
3210-34505 BOLT, CAMSHAFT SPROCKET
CHAIN DRIVEN ENGINESBOLT, CAMSHAFT SPROCKET
CHAIN DRIVEN ENGINES -
3343-61727 SPROCKET, CAMSHAFT
CHAIN DRIVEN ENGINESSPROCKET, CAMSHAFT
CHAIN DRIVEN ENGINES -
3461728 CHAIN, DRIVE
CHAIN DRIVEN ENGINESCHAIN, DRIVE
CHAIN DRIVEN ENGINES -
30431-3422 CAMSHAFT(LEFT HADN CRANKSHAFT ROTATION)
GEAR DRIVEN ENGINESCAMSHAFT(LEFT HADN CRANKSHAFT ROTATION)
GEAR DRIVEN ENGINES -
30431-3427 CAMSHAFT(RIGHT HAND CRANKSHAFT ROTATION)
GEAR DRIVEN ENGINESCAMSHAFT(RIGHT HAND CRANKSHAFT ROTATION)
GEAR DRIVEN ENGINES -
3143-61726 GEAR, CAMSHAFT TIMING
GEAR DRIVEN ENGINESGEAR, CAMSHAFT TIMING
GEAR DRIVEN ENGINES -
3210-8M0040582 BOLT, CAMSHAFT TIMING SPROCKET (7/16")
GEAR DRIVEN ENGINESBOLT, CAMSHAFT TIMING SPROCKET (7/16")
GEAR DRIVEN ENGINES -
3343-49114 GEAR, CRANSKSHAFT TIMING
GEAR DRIVEN ENGINESGEAR, CRANSKSHAFT TIMING
GEAR DRIVEN ENGINES
