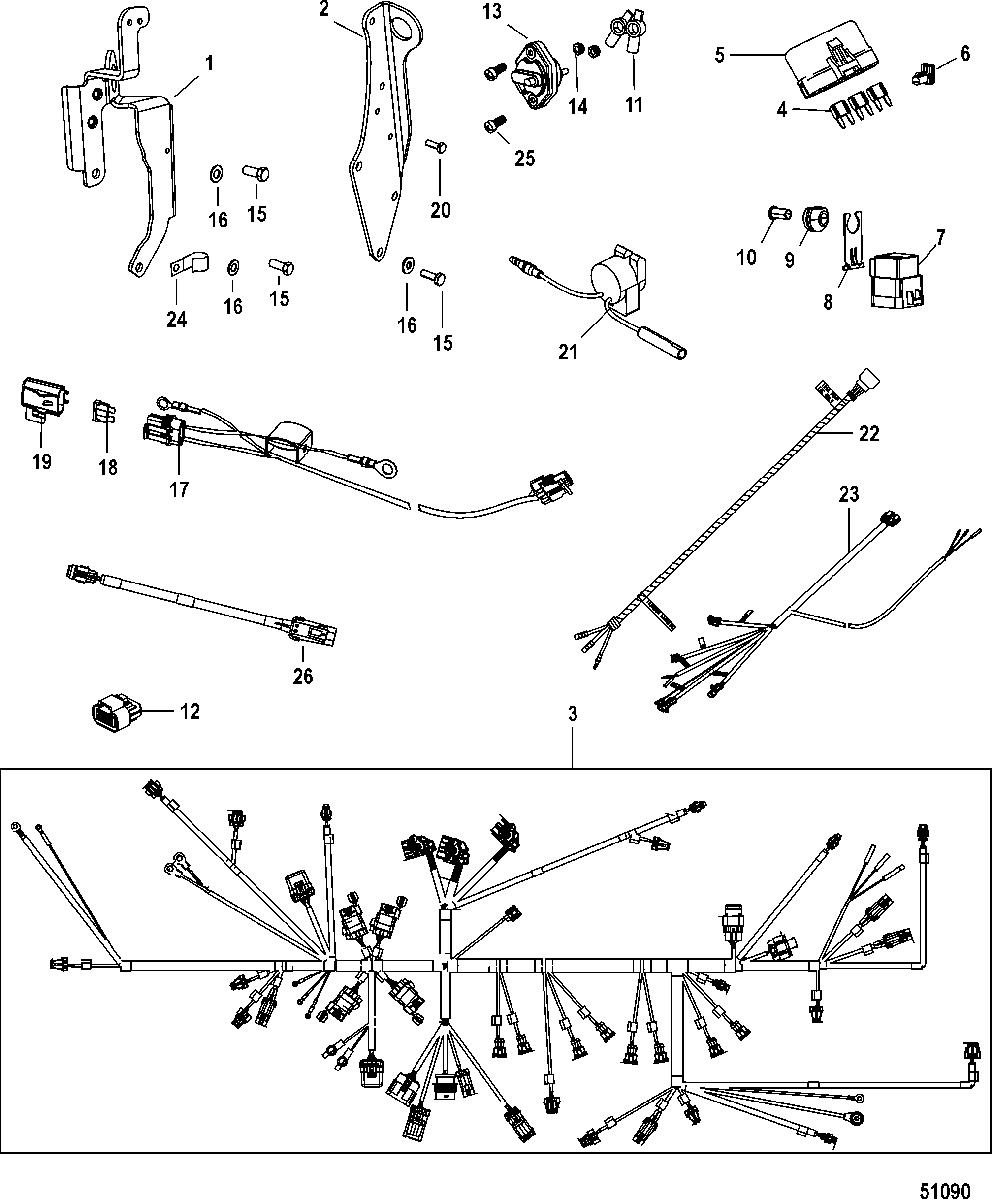

Wiring Harness and Lifting Brackets для Mercruiser - 8.2L Mag EC (H.O. Model) 2A051742 & Up

  • №
    Артикул
    Название
  • 1
    8M0069814 BRACKET, Lifting, Front
    BRACKET, Lifting, Front
  • 2
    8M0050537 BRACKET, Lifting, Rear
    BRACKET, Lifting, Rear
  • 3
    84-8M0114871 HARNESS ASSEMBLY
    MCM Mechanical
    HARNESS ASSEMBLY
    MCM Mechanical
  • 3
    84-8M0114870 HARNESS ASSEMBLY
    MCM Digital Throttle & Shift and MIE
    HARNESS ASSEMBLY
    MCM Digital Throttle & Shift and MIE
  • 4
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    Mechanical Throttle & Shift
    FUSE, Mini - Blue - 15 Ampere
    Mechanical Throttle & Shift
  • 4
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    Mechanical Throttle & Shift
    FUSE, Mini - Yellow - 20 Ampere
    Mechanical Throttle & Shift
  • 4
    88-83296910 FUSE, Mini - Red - 10 Ampere
    Mechanical and Digital Throttle & Shift
    FUSE, Mini - Red - 10 Ampere
    Mechanical and Digital Throttle & Shift
  • 4
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    Digital Throttle & Shift
    FUSE, Mini - Yellow - 20 Ampere
    Digital Throttle & Shift
  • 5
    858754 COVER, Fuse
    COVER, Fuse
  • 6
    54-879962 CLIP
    CLIP
  • 7
    882751A1 RELAY ASSEMBLY
    Mechanical Throttle & Shift
    RELAY ASSEMBLY
    Mechanical Throttle & Shift
  • 7
    882751A1 RELAY ASSEMBLY
    Digital Throttle & Shift
    RELAY ASSEMBLY
    Digital Throttle & Shift
  • 8
    828102 BRACKET
    BRACKET
  • 9
    25-818967 GROMMET
    GROMMET
  • 10
    23-818968 BUSHING
    BUSHING
  • 11
    85-89919 BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 12
    8M0055652 TERMINATOR ASSEMBLY, 10 Pin (CAN 1P and H)
    Digital Throttle & Shift
    TERMINATOR ASSEMBLY, 10 Pin (CAN 1P and H)
    Digital Throttle & Shift
  • 12
    859318T1 TERMINATOR, 10 Pin (CAN 1 and 2)
    Mechanical Throttle & Shift
    TERMINATOR, 10 Pin (CAN 1 and 2)
    Mechanical Throttle & Shift
  • 13
    88-11178A01 BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A051740 & Below
    BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A051740 & Below
  • 13
    88-11178A01 BREAKER, Circuit - 50 Ampere, Button Reset
    SN# 2A051741 & Up
    BREAKER, Circuit - 50 Ampere, Button Reset
    SN# 2A051741 & Up
  • 14
    11-826709106 NUT, (#10-32) Stainless Steel
    SN# 2A051740 & Below
    NUT, (#10-32) Stainless Steel
    SN# 2A051740 & Below
  • 14
    11-68219 NUT, (#10-32) Stainless Steel
    SN# 2A051741 & Up
    NUT, (#10-32) Stainless Steel
    SN# 2A051741 & Up
  • 15
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 16
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 17
    84-8M0113732 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 18
    862646 FUSE, Tan - 5 Ampere
    FUSE, Tan - 5 Ampere
  • 19
    828054 COVER, Fuse
    COVER, Fuse
  • 20
    10-4010720 SCREW, (M8 x 20), Rear Lifting Eye to Shift Bracket
    SCREW, (M8 x 20), Rear Lifting Eye to Shift Bracket
  • 21
    816492A15 ALARM KIT
    ALARM KIT
  • 22
    84-865774T01 HARNESS ASSEMBLY, Trim Pump
    HARNESS ASSEMBLY, Trim Pump
  • 23
    84-865677T01 HARNESS ASSEMBLY, Transom Harness
    HARNESS ASSEMBLY, Transom Harness
  • 24
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 25
    10-830861 SCREW, (#8-32 x .625)
    SN# 2A051740 & Below
    SCREW, (#8-32 x .625)
    SN# 2A051740 & Below
  • 25
    10-45862 SCREW, (#10-32 x .875)
    SN# 2A051741 & Up
    SCREW, (#10-32 x .875)
    SN# 2A051741 & Up
  • 26
    84-8M0047208 HARNESS, Adapter, Oxygen Sensor
    V-drive
    HARNESS, Adapter, Oxygen Sensor
    V-drive
