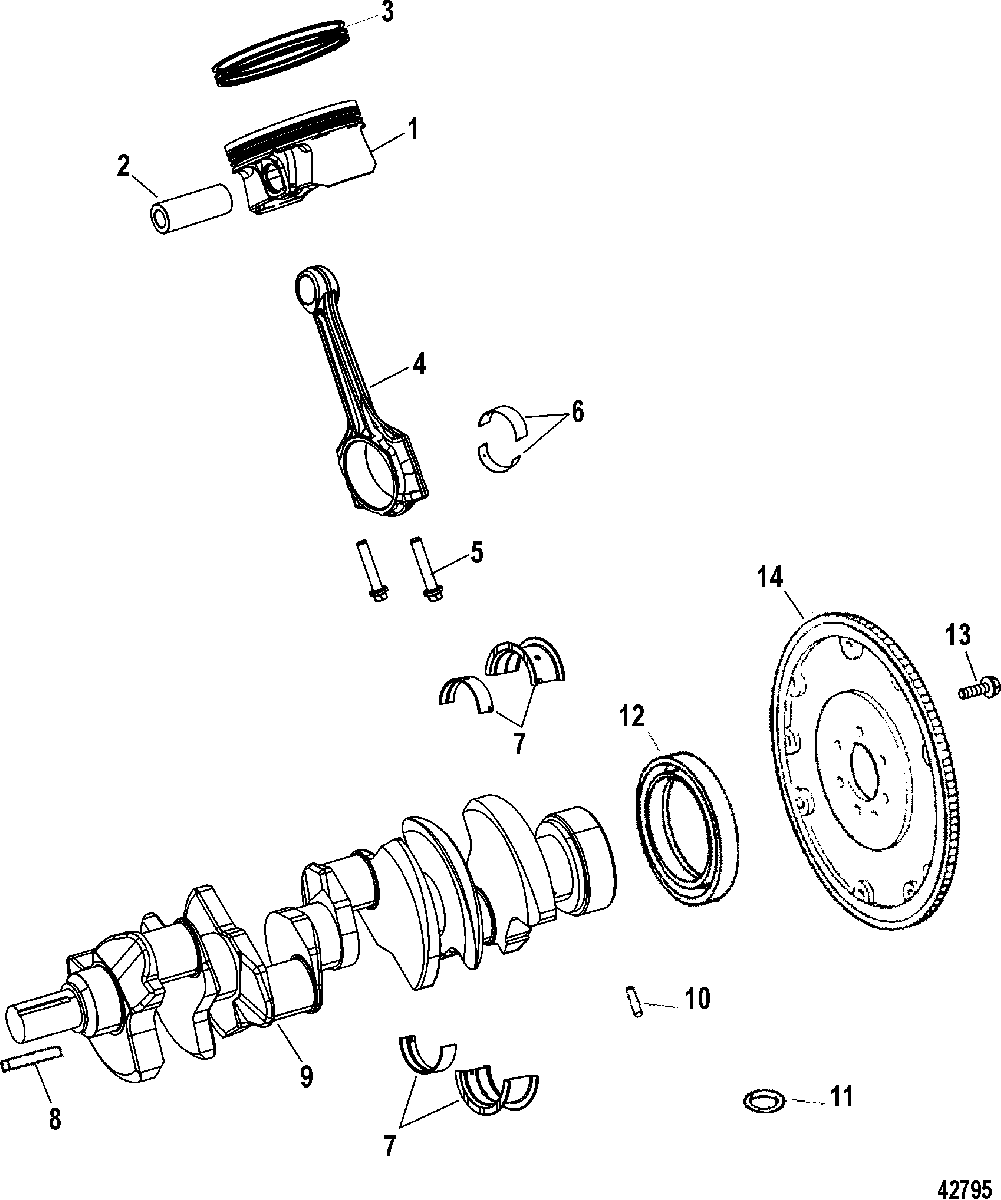

Crankshaft / Piston/ Connecting Rods для Mercruiser - 8.2L Mag EC (H.O. Model) 2A051742 & Up

  • №
    Артикул
    Название
  • 1
    700-8M6001407 PISTON ASSEMBLY, Standard
    PISTON ASSEMBLY, Standard
  • 1
    700-8M6001408 PISTON ASSEMBLY, (.030 Oversize)
    PISTON ASSEMBLY, (.030 Oversize)
  • 1
    700-8M6001409 PISTON ASSEMBLY, (.060 Oversize)
    PISTON ASSEMBLY, (.060 Oversize)
  • 2
    NSS NOT SOLD SEPARATE, PISTON PIN
    NOT SOLD SEPARATE, PISTON PIN
  • 3
    39-8M6001037 RING SET, Piston, standard
    RING SET, Piston, standard
  • 3
    39-8M6001026 RING SET, Piston, .030 Oversize
    RING SET, Piston, .030 Oversize
  • 3
    39-8M6001027 RING SET, Piston, .060 Oversize
    RING SET, Piston, .060 Oversize
  • 4
    600-8M0070917 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 5
    10-8M6000949 BOLT, Connecting rod
    BOLT, Connecting rod
  • 6
    23-8M0030217 BEARING SET, Connecting Rod - Standard
    BEARING SET, Connecting Rod - Standard
  • 6
    23-8M0030218 BEARING SET, Connecting Rod - .001 Oversize
    BEARING SET, Connecting Rod - .001 Oversize
  • 6
    23-8M0030216 BEARING SET, Connecting Rod - .001 Undersize
    BEARING SET, Connecting Rod - .001 Undersize
  • 6
    23-8M0030982 BEARING SET, Connecting Rod - .010 Undersize
    BEARING SET, Connecting Rod - .010 Undersize
  • 7
    23-8M0051198 BEARING SET, Main - Standard
    BEARING SET, Main - Standard
  • 7
    23-8M0053743 BEARING SET, Main - .001 Oversize
    BEARING SET, Main - .001 Oversize
  • 7
    23-842402 BEARING SET, Main - .001 Undersize
    BEARING SET, Main - .001 Undersize
  • 7
    23-8M0053549 BEARING SET, Main - .010 Undersize
    BEARING SET, Main - .010 Undersize
  • 8
    28-845607 KEY, Crankshaft
    KEY, Crankshaft
  • 9
    400-8M0070214 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 10
    NSS NOT SOLD SEPARATE, PIN, Dowel
    NOT SOLD SEPARATE, PIN, Dowel
  • 11
    25-69756 O-RING, (.549 x .103), Number 5 Bearing Cap Oil Hole
    O-RING, (.549 x .103), Number 5 Bearing Cap Oil Hole
  • 12
    26-811554 SEAL, Oil
    SEAL, Oil
  • 13
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 14
    230-843374T1 FLYWHEEL
    MCM
    FLYWHEEL
    MCM
  • 14
    200-8M0084512 FLYWHEEL
    MIE
    FLYWHEEL
    MIE
