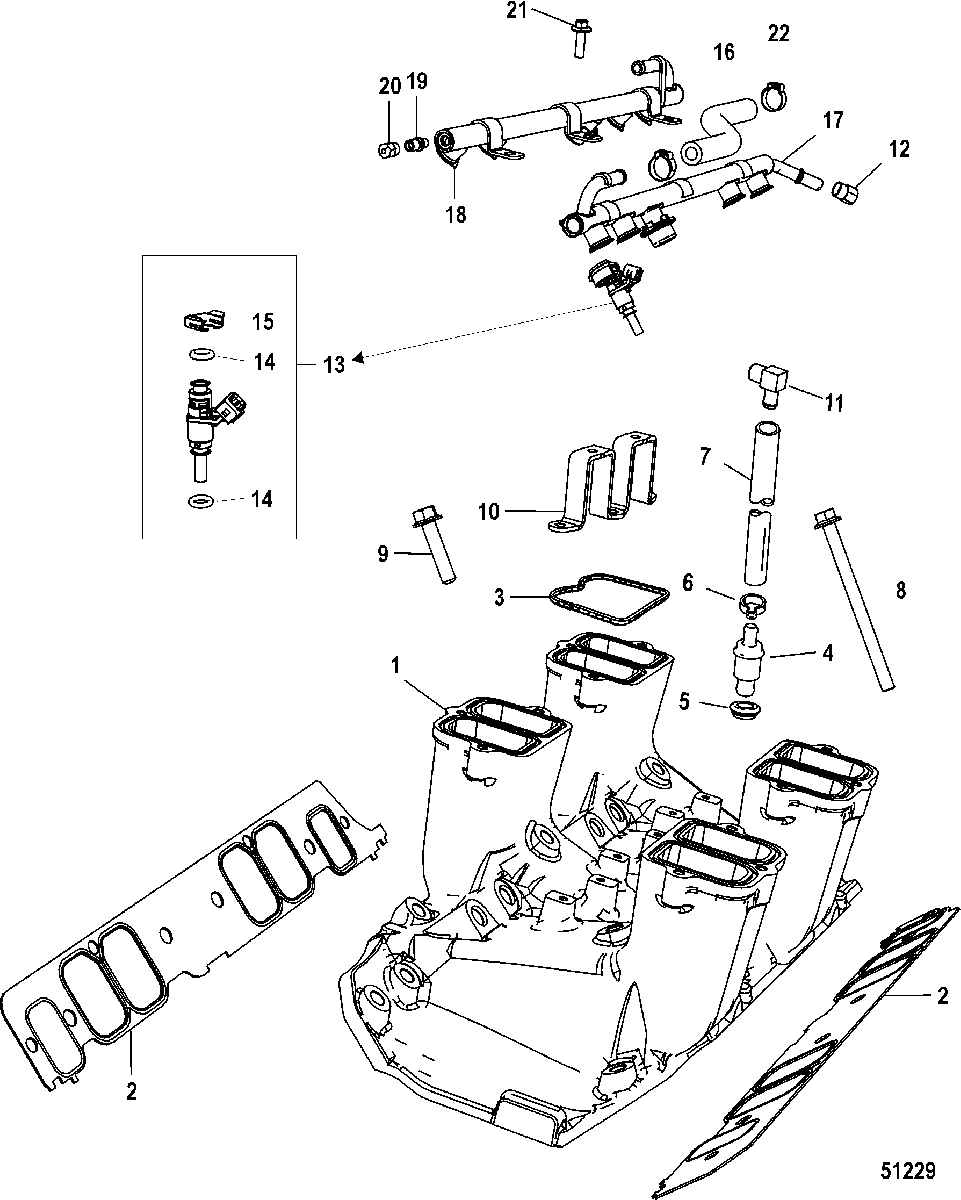

Intake Manifold для Mercruiser - 8.2L Mag EC (H.O. Model) 2A051742 & Up

  • №
    Артикул
    Название
  • 1
    8M0045256 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 2
    27-805403A1 GASKET SET
    GASKET SET
  • 3
    8M0044310 SEAL, Intake Manifold
    SEAL, Intake Manifold
  • 4
    8M0099429 VALVE ASSEMBLY, Crankcase Vent
    VALVE ASSEMBLY, Crankcase Vent
  • 5
    25-811553 GROMMET
    GROMMET
  • 6
    54-848764 CLAMP, (21 mm)
    CLAMP, (21 mm)
  • 7
    32-8M0042521 HOSE, PCV Valve to Plenum
    HOSE, PCV Valve to Plenum
  • 8
    10-8M2017579 SCREW, (.375-16 x 5.25), Intake Manifold to Head
    SCREW, (.375-16 x 5.25), Intake Manifold to Head
  • 9
    10-8M0046395 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 10
    8M0043145 BRACKET, Wire Harness
    BRACKET, Wire Harness
  • 11
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 12
    19-8M0046566 CAP, Service Point
    CAP, Service Point
  • 13
    8M0081412 INJECTOR KIT, Fuel
    INJECTOR KIT, Fuel
  • 14
    879150A09 SEAL KIT
    (Contains 4 Upper and 4 Lower Seals)
    SEAL KIT
    (Contains 4 Upper and 4 Lower Seals)
  • 15
    8M2001570 CLIP
    CLIP
  • 16
    32-8M0071603 HOSE, Balance
    HOSE, Balance
  • 17
    8M0081453 FUEL RAIL, Port
    FUEL RAIL, Port
  • 18
    8M0081452 FUEL RAIL, Starboard
    FUEL RAIL, Starboard
  • 19
    21-8M0044726 VALVE ASSEMBLY
    VALVE ASSEMBLY
  • 20
    19-8M0046566 CAP, Shrader Valve - Brass
    CAP, Shrader Valve - Brass
  • 21
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Intake Manifold
    SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Intake Manifold
  • 22
    54-8M0046568 CLAMP, (20.5 mm)
    CLAMP, (20.5 mm)
