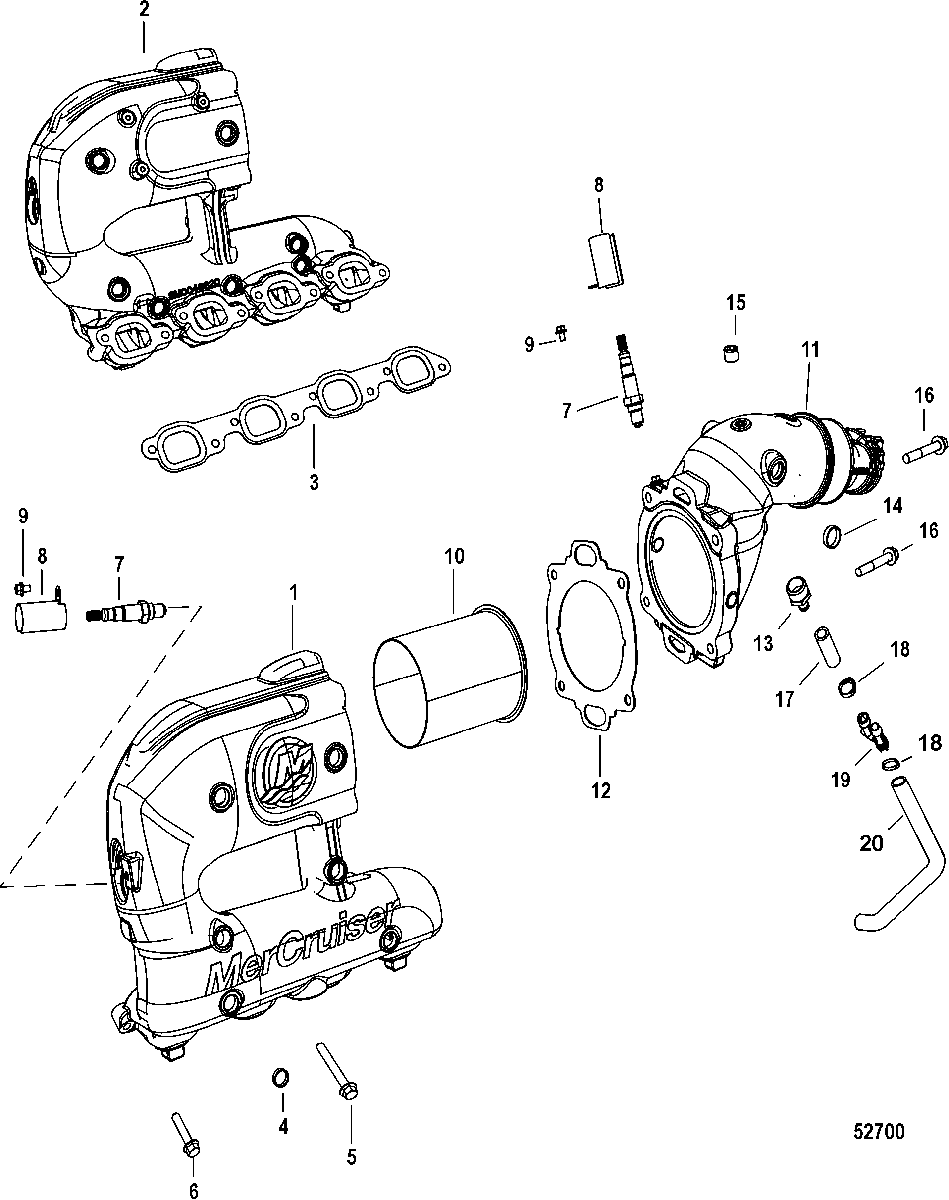

Exhaust Manifold And Elbow для Mercruiser - 8.2L Mag EC (H.O. Model) 2A051742 & Up

  • №
    Артикул
    Название
  • 1
    8M0104212 EXHAUST MANIFOLD ASSEMBLY, Port
    EXHAUST MANIFOLD ASSEMBLY, Port
  • 2
    8M0104213 EXHAUST MANIFOLD ASSEMBLY, Starboard
    EXHAUST MANIFOLD ASSEMBLY, Starboard
  • 3
    27-8M0065690 GASKET, Cylinder head to exhaust manifold
    GASKET, Cylinder head to exhaust manifold
  • 4
    19-864689 PLUG, Expansion
    PLUG, Expansion
  • 5
    10-8M0058303 SCREW, (.375 - 16 X 3.0)
    SCREW, (.375 - 16 X 3.0)
  • 6
    10-8M0058302 SCREW, (.375 - 16 X 1.75)
    SCREW, (.375 - 16 X 1.75)
  • 7
    8M2003959 SENSOR, Oxygen
    SENSOR, Oxygen
  • 8
    8M2004597 BRACKET, Cover
    BRACKET, Cover
  • 9
    10-8M2007128 SCREW, (1/4-20) Hex Flange
    SCREW, (1/4-20) Hex Flange
  • 10
    8M0070209 CATALYST
    CATALYST
  • 11
    8M0057574 RISER KIT, Exhaust - 2 Inch Rise
    RISER KIT, Exhaust - 2 Inch Rise
  • 11
    8M0057575 RISER KIT, Exhaust - 4 Inch Rise
    RISER KIT, Exhaust - 4 Inch Rise
  • 11
    8M0057576 RISER KIT, Exhaust - 6 Inch Rise
    RISER KIT, Exhaust - 6 Inch Rise
  • 12
    27-8M0054712 GASKET, Exhaust manifold to elbow
    GASKET, Exhaust manifold to elbow
  • 13
    22-8M2011728 FITTING, Straight (3/4 x 0.5)
    FITTING, Straight (3/4 x 0.5)
  • 14
    19-864689 PLUG, Expansion
    PLUG, Expansion
  • 15
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 16
    10-668631 SCREW, (.375-16 x 2.500)
    SCREW, (.375-16 x 2.500)
  • 17
    8M0074953 VENT VALVE ASSEMBLY
    VENT VALVE ASSEMBLY
  • 18
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 19
    8M0074953 ASSEMBLY, Valve
    ASSEMBLY, Valve
  • 20
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
