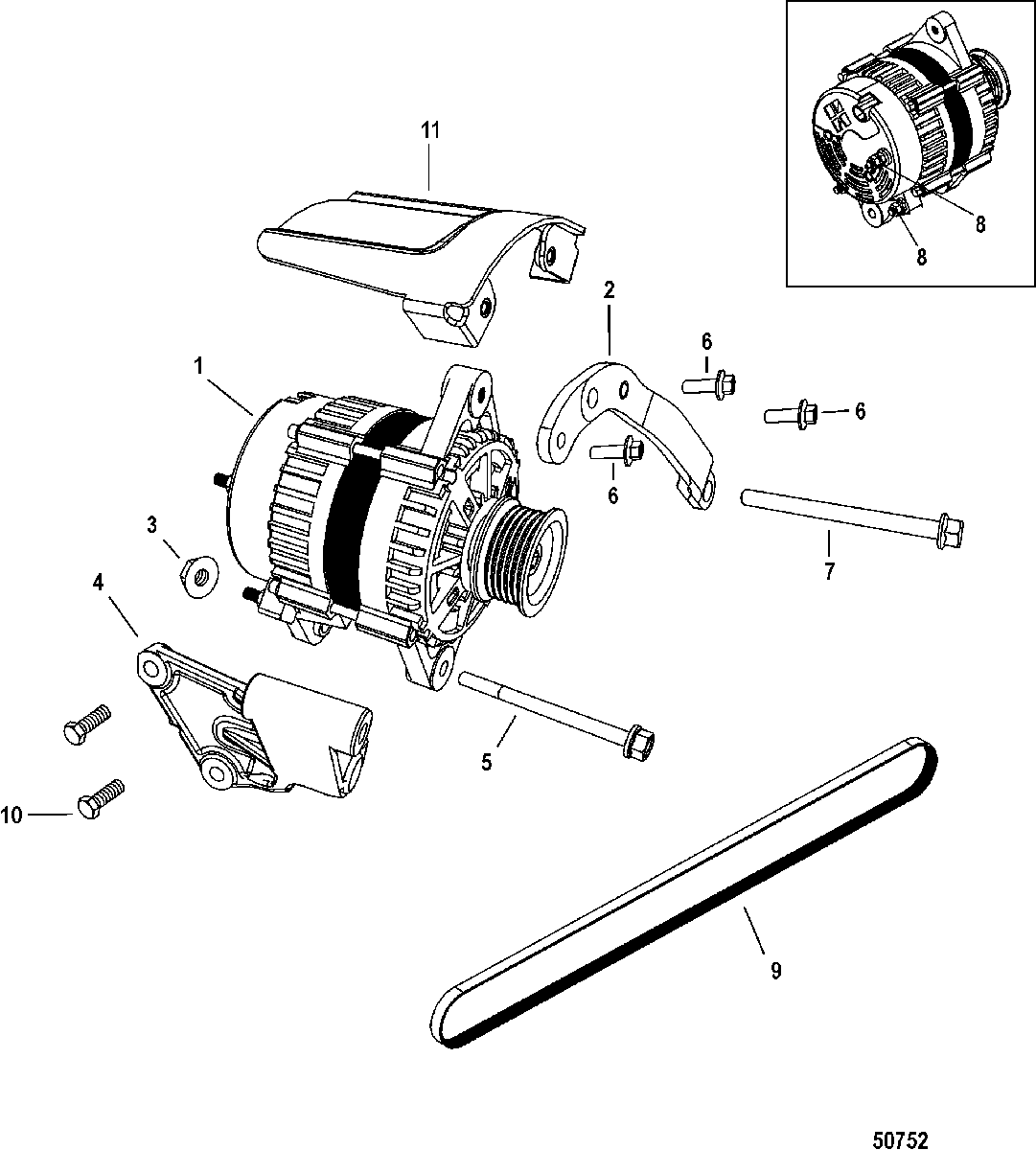

Alternator для Mercruiser - 8.2L Mag EC (H.O. Model) 2A051742 & Up

  • №
    Артикул
    Название
  • 1
    863077T ALTERNATOR ASSEMBLY, Black
    ALTERNATOR ASSEMBLY, Black
  • 2
    8M0069717 BRACKET, Alternator
    MCM/MIE
    BRACKET, Alternator
    MCM/MIE
  • 2
    8M2017248 BRACKET, Alternator
    V-Drive
    BRACKET, Alternator
    V-Drive
  • 3
    11-401368 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 4
    8M0045251 BRACKET, Alternator
    BRACKET, Alternator
  • 5
    10-824459110 SCREW, (M8 x 110) Stainless Steel
    SCREW, (M8 x 110) Stainless Steel
  • 6
    10-4010618 SCREW, (M6 x 18) Stainless Steel
    SCREW, (M6 x 18) Stainless Steel
  • 7
    10-8M2017380 SCREW, (.4375-14 x 5.5)
    SCREW, (.4375-14 x 5.5)
  • 8
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 9
    57-8M0045227 BELT, Serpentine
    MCM
    BELT, Serpentine
    MCM
  • 9
    57-8M0045986 BELT, Serpentine
    MIE
    BELT, Serpentine
    MIE
  • 10
    10-865982005 SCREW, (.375-16 x 1.00) , Alternator Bracket
    SCREW, (.375-16 x 1.00) , Alternator Bracket
  • 11
    8M0070927 SHIELD, Alternator
    SHIELD, Alternator
  • 12
    10-4010725 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 13
    8M2021567 BRACKET, Flush mount
    MCM
    BRACKET, Flush mount
    MCM
