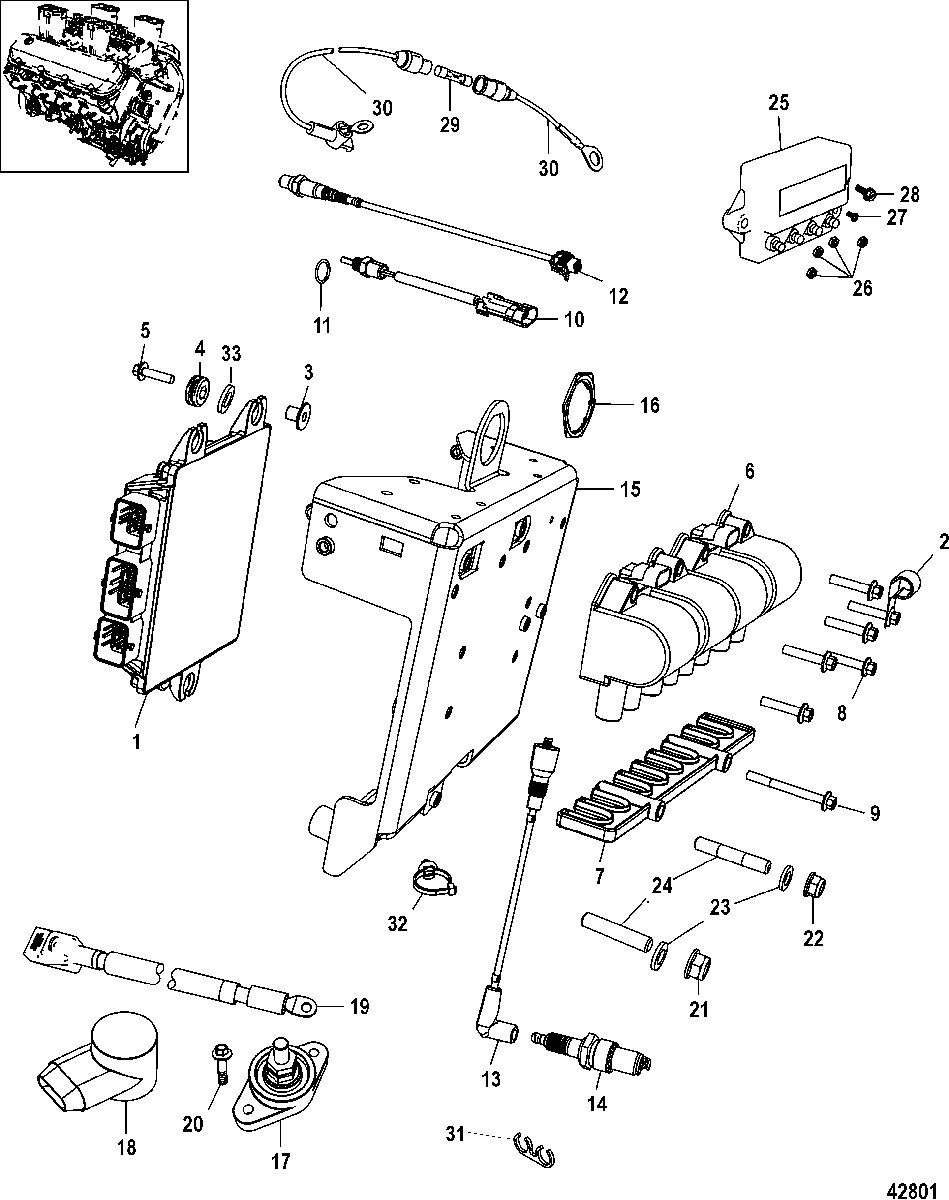

Electrical Components для Mercruiser - 8.2L Mag EC (H.O. Model) 2A051742 & Up

  • №
    Артикул
    Название
  • 1
    8M0070921 ECM, Engine Control Module
    Base, Manual SN# 2A184339 & Below
    ECM, Engine Control Module
    Base, Manual SN# 2A184339 & Below
  • 1
    8M0085642 ECM, Engine Control Module
    Base, Manual SN# 2A184340 & Up
    ECM, Engine Control Module
    Base, Manual SN# 2A184340 & Up
  • 1
    8M0070922 ECM, Engine Control Module
    High Output, Manual
    ECM, Engine Control Module
    High Output, Manual
  • 1
    8M0070925 ECM, Engine Control Module
    Base, Digital Throttle & Shift
    ECM, Engine Control Module
    Base, Digital Throttle & Shift
  • 1
    8M0085641 ECM, Engine Control Module
    Base, Digital Throttle & Shift SN# 2A184340 & Up
    ECM, Engine Control Module
    Base, Digital Throttle & Shift SN# 2A184340 & Up
  • 1
    8M0070926 ECM, Engine Control Module
    High Output, Digital Throttle & Shift
    ECM, Engine Control Module
    High Output, Digital Throttle & Shift
  • 2
    54-858951 J CLIP
    J CLIP
  • 3
    23-856954 BUSHING
    BUSHING
  • 4
    25-834985 GROMMET
    GROMMET
  • 5
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 6
    841203T COIL, Ignition
    COIL, Ignition
  • 7
    8M0053613 RETAINER, Ignition Cable Support
    RETAINER, Ignition Cable Support
  • 8
    10-4010630 SCREW, (M6 x 30) Stainless Steel
    SCREW, (M6 x 30) Stainless Steel
  • 9
    10-88552560 SCREW, (M6 x60)
    SCREW, (M6 x60)
  • 10
    885342002 SENSOR ASSEMBLY, Water Temperature
    SENSOR ASSEMBLY, Water Temperature
  • 10
    885342002 SENSOR ASSEMBLY, Exhaust
    SENSOR ASSEMBLY, Exhaust
  • 11
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 12
    8M2003959 SENSOR, Oxygen
    SENSOR, Oxygen
  • 13
    84-899329A09 CABLE SET, High Tension-Set of Eight
    CABLE SET, High Tension-Set of Eight
  • 14
    33-8M0114747 SPARK PLUG
    SPARK PLUG
  • 15
    8M0045733 BRACKET, Electrical
    BRACKET, Electrical
  • 16
    11-889664 NUT, (1.500-18) Black Nylon
    NUT, (1.500-18) Black Nylon
  • 17
    8M2017792 STUD, Hot (3/8-16)
    STUD, Hot (3/8-16)
  • 18
    85-8M2021953 INSULATOR, Hot Stud
    INSULATOR, Hot Stud
  • 19
    84-8M0045793 HARNESS, Hot Stud
    HARNESS, Hot Stud
  • 20
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 21
    16-56295 STUD, (.437 x 2.69), Electrical Bracket to Cylinder Head
    STUD, (.437 x 2.69), Electrical Bracket to Cylinder Head
  • 22
    16-8M0034453 STUD, (7/16 x 2.19), Electrical Bracket to Cylinder Head
    STUD, (7/16 x 2.19), Electrical Bracket to Cylinder Head
  • 23
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 24
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 25
    42600A09 MERCATHODE ASSEMBLY
    MERCATHODE ASSEMBLY
  • 26
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 27
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 28
    10-4010516 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 29
    862646 FUSE, Tan - 5 Ampere
    FUSE, Tan - 5 Ampere
  • 30
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
  • 30
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    CABLE ASSEMBLY, (5.00 Inches) Red
  • 31
    54676 RETAINER, Two Wire
    RETAINER, Two Wire
  • 32
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 33
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
