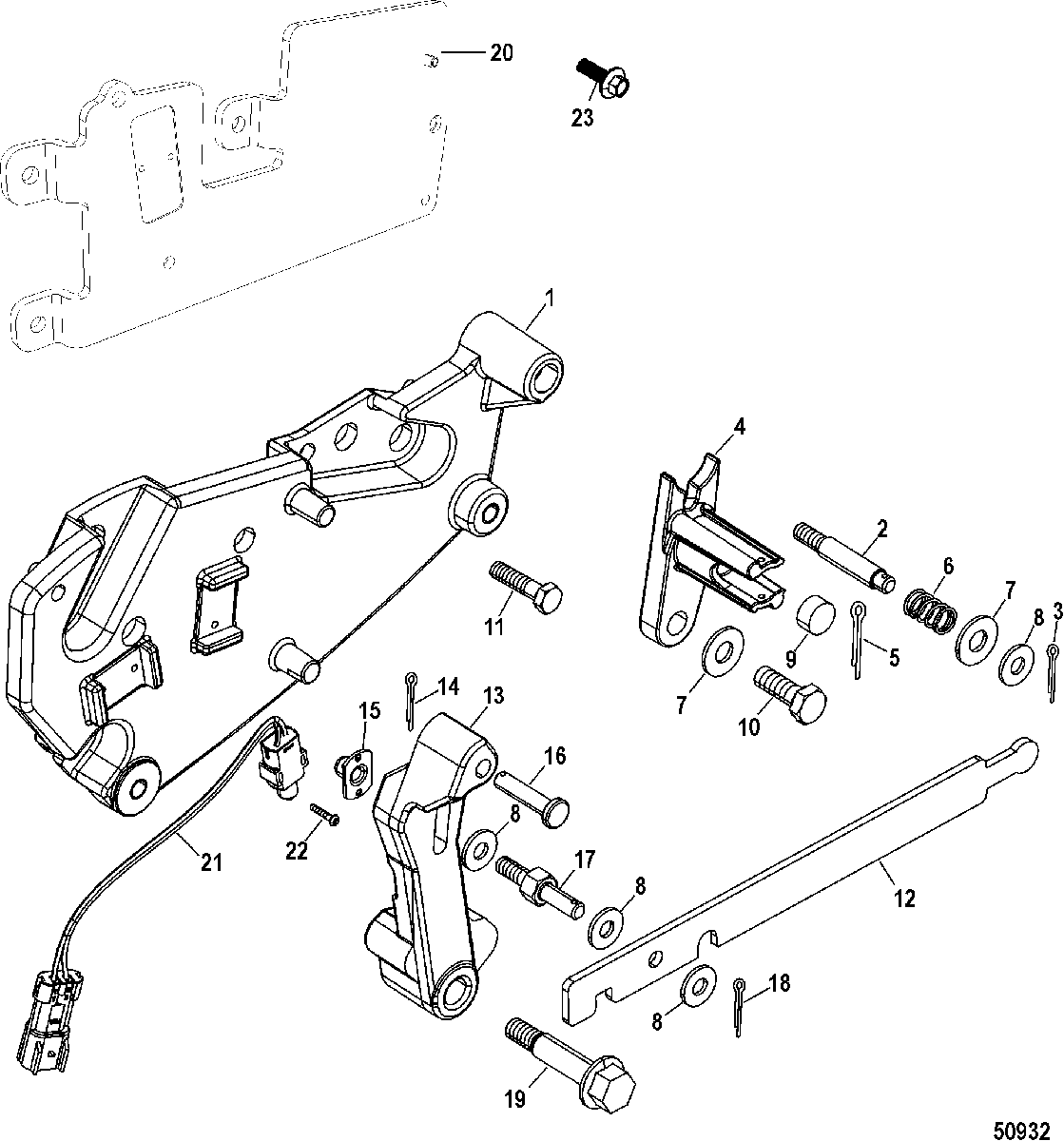

Shift Bracket, Mechanical для Mercruiser - 8.2L Mag EC (H.O. Model) 2A051742 & Up

  • №
    Артикул
    Название
  • 1
    8M0070872 BRACKET, Shift Bracket Mount
    BRACKET, Shift Bracket Mount
  • 2
    16-865154A02 STUD KIT, (.250-20/.250-28 x 2.120)
    STUD KIT, (.250-20/.250-28 x 2.120)
  • 3
    18-210711 COTTER PIN
    COTTER PIN
  • 4
    8M0073627 RETAINER KIT, Shift Cable
    RETAINER KIT, Shift Cable
  • 5
    18-328571 COTTER PIN
    COTTER PIN
  • 6
    24-98880 SPRING
    SPRING
  • 7
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 8
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 9
    23-98828 SPACER
    SPACER
  • 10
    10-4010735 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 11
    91-12427T TOOL, Shift Adjust
    TOOL, Shift Adjust
  • 12
    863911A12 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 13
    18-210711 COTTER PIN
    COTTER PIN
  • 14
    11-63341 TEE NUT
    TEE NUT
  • 15
    17-68402 PIN, (.250 x 1.13), Clevis
    PIN, (.250 x 1.13), Clevis
  • 16
    16-865393A02 STUD KIT, (.250-28 x 1.90)
    STUD KIT, (.250-28 x 1.90)
  • 17
    18-210711 COTTER PIN
    COTTER PIN
  • 18
    10-865148 SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
    SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
  • 19
    87-808009T11 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 20
    10-865147T01 SCREW, (#6-32 x .750) Stainless Steel
    SCREW, (#6-32 x .750) Stainless Steel
  • 21
    10-817505 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 22
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
