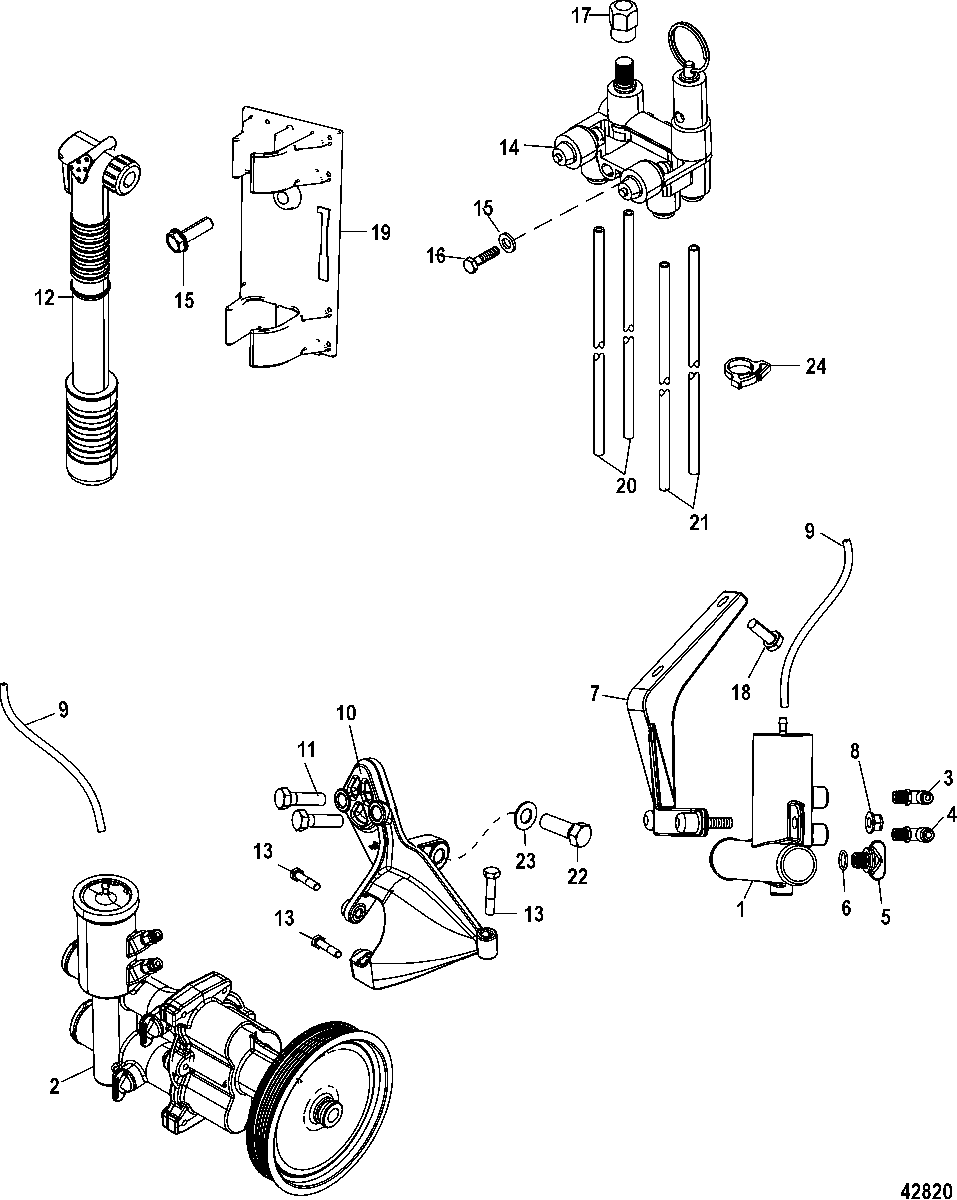

Water Drain System для Mercruiser - 8.2L Mag (Base Model) 1A351597 & Up

  • №
    Артикул
    Название
  • 1
    863717A2 ACTUATOR ASSEMBLY, Water Drain
    Port
    ACTUATOR ASSEMBLY, Water Drain
    Port
  • 2
    46-8M0137216 PUMP KIT, Sea Water, Without Air Fittings
    See "Seawater Pump" for Component Break down
    PUMP KIT, Sea Water, Without Air Fittings
    See "Seawater Pump" for Component Break down
  • 2
    46-8M0137217 PUMP KIT, Sea Water, With Air Fittings
    See "Seawater Pump" for Component Break down
    PUMP KIT, Sea Water, With Air Fittings
    See "Seawater Pump" for Component Break down
  • 3
    22-8M0082321 FITTING, Gray (90 Degree)
    FITTING, Gray (90 Degree)
  • 4
    22-8M0082322 FITTING, Orange (90 Degree)
    FITTING, Orange (90 Degree)
  • 5
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 6
    25-26802 O-RING, (.424 x .103)
    O-RING, (.424 x .103)
  • 7
    863863T BRACKET, Actuator Mounting
    Port
    BRACKET, Actuator Mounting
    Port
  • 8
    11-826365 NUT, (M8), Nylock
    NUT, (M8), Nylock
  • 9
    32-8630561 HOSE, (42.00 Inches Bulk) Black, Air
    HOSE, (42.00 Inches Bulk) Black, Air
  • 10
    8M0045295 BRACKET, Seawater Pump
    BRACKET, Seawater Pump
  • 11
    10-865982007 SCREW, (.375-16 x 1.25) Hex Flange
    SCREW, (.375-16 x 1.25) Hex Flange
  • 12
    863057 PUMP, Air
    PUMP, Air
  • 13
    10-865152 SCREW, (M6)
    SCREW, (M6)
  • 14
    863053T MANIFOLD ASSEMBLY, Air
    MANIFOLD ASSEMBLY, Air
  • 15
    10-79968 SCREW, (#12-11 x .750)
    SCREW, (#12-11 x .750)
  • 16
    10-82104545 SCREW, (M5 x45)
    SCREW, (M5 x45)
  • 17
    19-8M0046566 CAP, Service Point
    CAP, Service Point
  • 18
    10-98260 SCREW, (.375-16 x .620)
    SCREW, (.375-16 x .620)
  • 19
    8M0046157 BRACKET, Air Pump
    BRACKET, Air Pump
  • 20
    32-8M0077561 HOSE, (40.00 inch Bulk) Green
    Starboard Cut to 32 Inches, Port Cut to 22 Inches
    HOSE, (40.00 inch Bulk) Green
    Starboard Cut to 32 Inches, Port Cut to 22 Inches
  • 21
    32-8M0062601 HOSE, (40.00 inch Bulk) Grey
    Starboard Cut to 32 Inches, Port Cut to 23 Inches
    HOSE, (40.00 inch Bulk) Grey
    Starboard Cut to 32 Inches, Port Cut to 23 Inches
  • 22
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 23
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 24
    54-415825 CLAMP, Nylon
    CLAMP, Nylon
  • 25
    27-34213 GASKET
    GASKET
