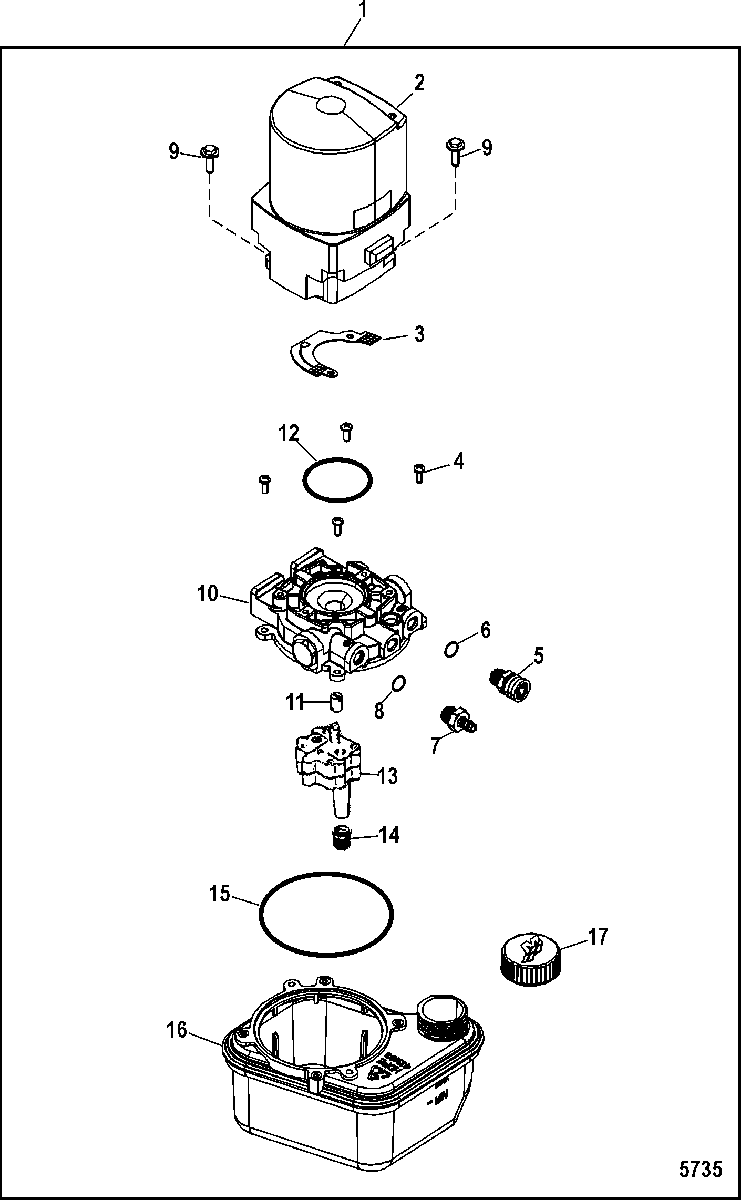

Trim Pump and Motor Components для Mercruiser - 8.2L Mag (Base Model) 1A351597 & Up

  • №
    Артикул
    Название
  • 1
    865380A13 PUMP/MOTOR ASSEMBLY, Trim - 12 Volt
    PUMP/MOTOR ASSEMBLY, Trim - 12 Volt
  • 2
    891736T MOTOR ASSEMBLY, Complete
    MOTOR ASSEMBLY, Complete
  • 3
    892608 BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
    BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
  • 4
    10-883167 SCREW, (#8-32)
    SCREW, (#8-32)
  • 5
    22-865413002 FITTING, Stainless Steel, Female Quick Connect
    FITTING, Stainless Steel, Female Quick Connect
  • 6
    25-891868 O-RING
    O-RING
  • 7
    22-865412001 FITTING, Stainless Steel, Male Quick Connect
    FITTING, Stainless Steel, Male Quick Connect
  • 8
    25-891868 O-RING
    O-RING
  • 9
    10-823444 SCREW
    SCREW
  • 10
    808728T ADAPTER ASSEMBLY
    ADAPTER ASSEMBLY
  • 11
    803852 COUPLING
    COUPLING
  • 12
    25-89498 O-RING, Motor End
    O-RING, Motor End
  • 13
    18529 PUMP ASSEMBLY, With Screws
    PUMP ASSEMBLY, With Screws
  • 14
    35-89496 FILTER
    FILTER
  • 15
    25-17645 O-RING, Reservoir End
    O-RING, Reservoir End
  • 16
    883166A2 RESERVOIR KIT
    With Filters-Reference 14 And O Ring-Reference 15
    RESERVOIR KIT
    With Filters-Reference 14 And O Ring-Reference 15
  • 17
    36-865448A01 CAP, Oil Reservoir
    CAP, Oil Reservoir
  • NS
    812498A1 VALVE KIT, Relief
    Up Pressure
    VALVE KIT, Relief
    Up Pressure
  • NS
    812499A1 VALVE KIT, Relief
    Down Pressure
    VALVE KIT, Relief
    Down Pressure
  • NS
    95353A1 VALVE KIT, Relief
    Thermal
    VALVE KIT, Relief
    Thermal
  • NS
    18545A1 REPAIR KIT
    REPAIR KIT
  • NS
    891737 BRUSH KIT
    BRUSH KIT
