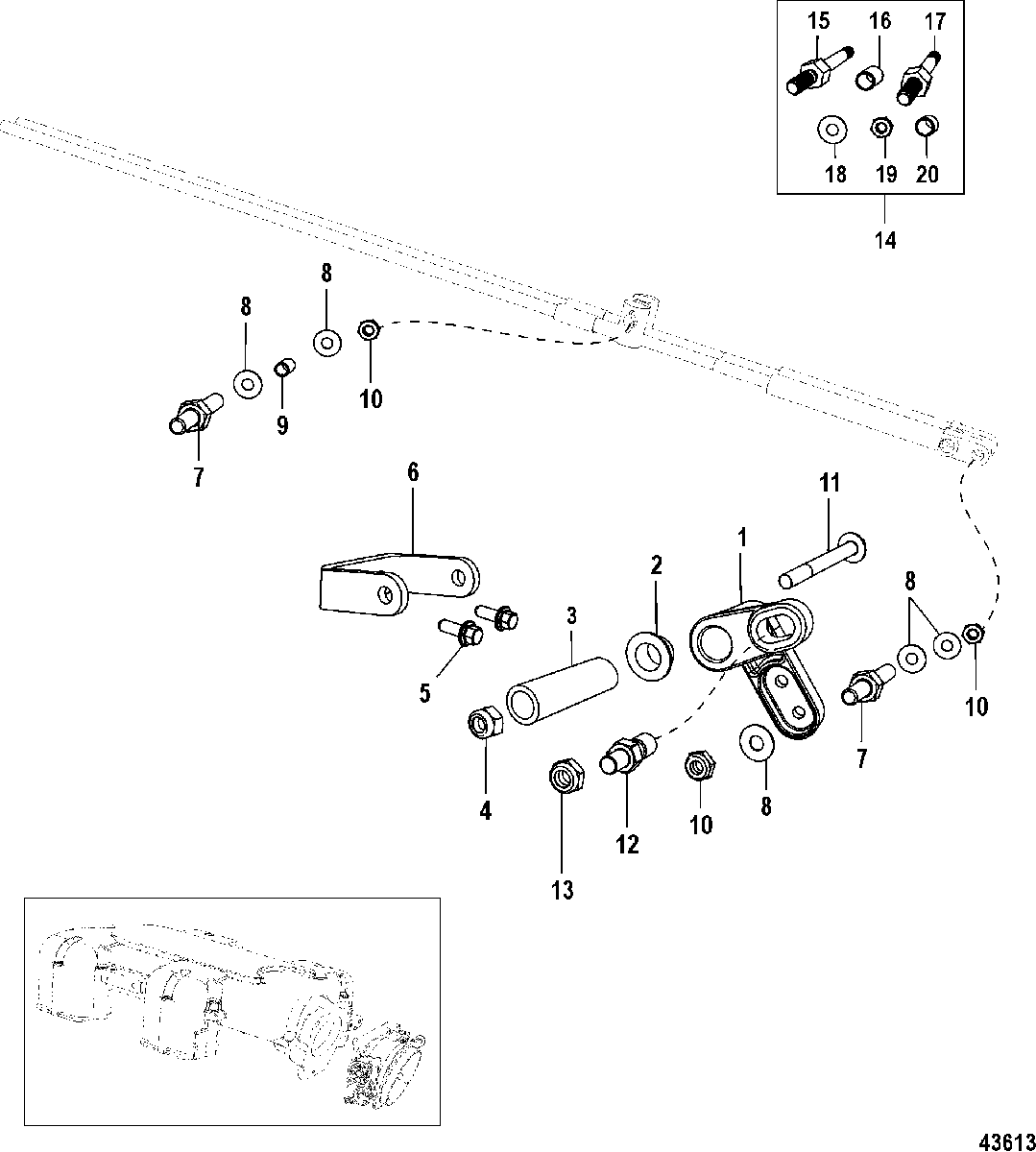

Throttle Lever Assembly, Mechanical Throttle-Shift для Mercruiser - 8.2L Mag (Base Model) 1A351597 & Up

‹-+›
  • №
    Артикул
    Название
  • 1
    8M0044205 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 2
    23-841238 BUSHING
    BUSHING
  • 3
    23-8M0042528 BUSHING
    BUSHING
  • 4
    11-826365 NUT, (M8)
    NUT, (M8)
  • 5
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel
    SCREW, (M6 x 16 MM) Stainless Steel
  • 6
    8M0046459 BRACKET, Throttle Lever
    BRACKET, Throttle Lever
  • 7
    16-8M0045152 STUD, Special (1.925 Inches), Throttle Cable
    STUD, Special (1.925 Inches), Throttle Cable
  • 8
    12-846673 WASHER, (.265 x .500 x .060) Stainless Steel
    WASHER, (.265 x .500 x .060) Stainless Steel
  • 9
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 10
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 11
    10-4010775 SCREW, (M8 x 75)
    SCREW, (M8 x 75)
  • 12
    8M0043740 ROLLER ASSEMBLY, Throttle
    ROLLER ASSEMBLY, Throttle
  • 13
    11-826709111 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 14
    8M0046250 THROTTLE/SHIFT KIT, Two Station
    (Twin Engines Require Two Kits)
    THROTTLE/SHIFT KIT, Two Station
    (Twin Engines Require Two Kits)
  • 15
    16-8M0045150 STUD, Special (2.535 Inches)
    STUD, Special (2.535 Inches)
  • 16
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 17
    16-8M0045143 STUD, Special (2.23 Inches)
    STUD, Special (2.23 Inches)
  • 18
    12-846673 WASHER, (.265 x .500 x .060) Stainless Steel
    WASHER, (.265 x .500 x .060) Stainless Steel
  • 19
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 20
    23-8M0045155 SPACER, (0.26 x 0.50 x 0.24)
    SPACER, (0.26 x 0.50 x 0.24)
