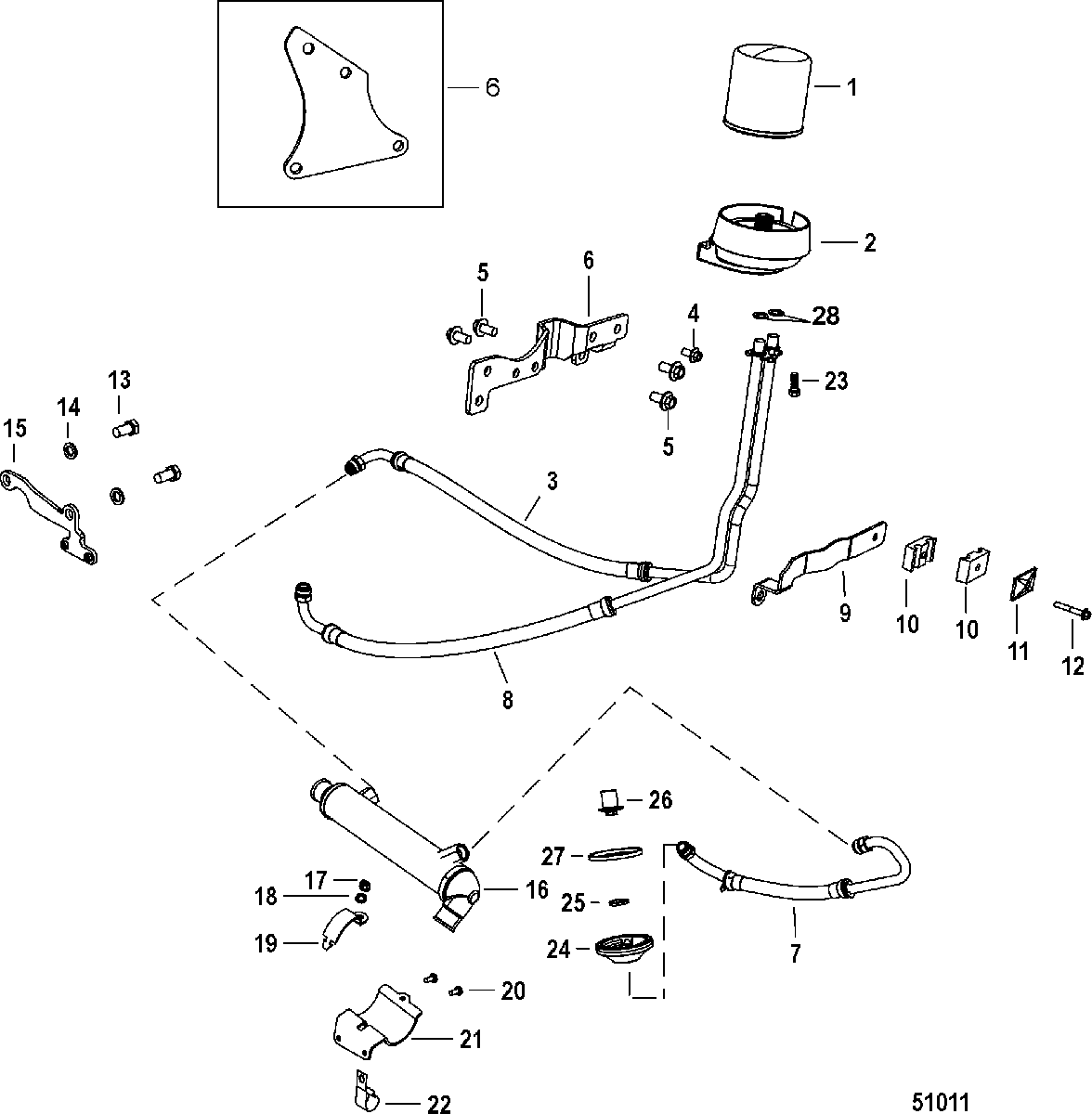

Remote Oil System(2A041665 & up) для Mercruiser - 8.2L Mag (Base Model) 1A351597 & Up

  • №
    Артикул
    Название
  • 1
    35-866340Q03 FILTER, Oil - Quicksilver Brand
    FILTER, Oil - Quicksilver Brand
  • 1
    35-866340K01 FILTER, Oil - Mercury Brand
    FILTER, Oil - Mercury Brand
  • 2
    8M0070128 HOUSING, Remote oil
    HOUSING, Remote oil
  • 3
    32-8M2021626 OIL LINE, Cooler to filter
    MCM/MIE
    OIL LINE, Cooler to filter
    MCM/MIE
  • 3
    32-8M2022420 OIL LINE, Cooler to filter
    V-drive
    OIL LINE, Cooler to filter
    V-drive
  • 4
    10-4010716 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 5
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 6
    8M2023670 BRACKET, Remote oil
    MCM/MIE
    BRACKET, Remote oil
    MCM/MIE
  • 6
    8M2021921 BRACKET, Remote oil
    V-drive
    BRACKET, Remote oil
    V-drive
  • 7
    32-8M2021679 OIL LINE, Block to cooler
    OIL LINE, Block to cooler
  • 8
    32-8M2021625 OIL LINE, Filter to block
    MCM/MIE
    OIL LINE, Filter to block
    MCM/MIE
  • 8
    32-8M2022419 OIL LINE, Filter to block
    V-drive
    OIL LINE, Filter to block
    V-drive
  • 9
    8M0070911 BRACKET, Oil line
    BRACKET, Oil line
  • 10
    8M2009216 CLAMP
    CLAMP
  • 11
    8M2009217 PLATE
    PLATE
  • 12
    10-82130040 SCREW, (M6 x 40)
    MCM
    SCREW, (M6 x 40)
    MCM
  • 12
    10-82130045 SCREW, (M6 x 45)
    MIE
    SCREW, (M6 x 45)
    MIE
  • 13
    10-806677 BOLT
    BOLT
  • 14
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel
    WASHER, (.530 x .870 x .105) Stainless Steel
  • 15
    8M2018755 BRACKET
    BRACKET
  • 16
    8M0070248 COOLER, Oil
    COOLER, Oil
  • 17
    11-401376 NUT, (M6)
    NUT, (M6)
  • 18
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel
    MCM
    WASHER, (.281 x .625 x .065) Stainless Steel
    MCM
  • 18
    12-828442 WASHER
    MIE
    WASHER
    MIE
  • 19
    807445T CLAMP
    CLAMP
  • 20
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 21
    863905T BRACKET
    BRACKET
  • 22
    54-92850 CLAMP
    CLAMP
  • 23
    10-4010610 SCREW, (M6 x 10) Stainless Steel
    SCREW, (M6 x 10) Stainless Steel
  • 24
    862870T ADAPTOR
    ADAPTOR
  • 25
    26-42077 SEAL
    SEAL
  • -
    22-862958A1 FITTING KIT
    FITTING KIT
  • 26
    22-862958 FITTING
    FITTING
  • 27
    26-862957 SEAL
    SEAL
  • 28
    8M2000565 O-RING, Component of Item 3 and 8
    O-RING, Component of Item 3 and 8
