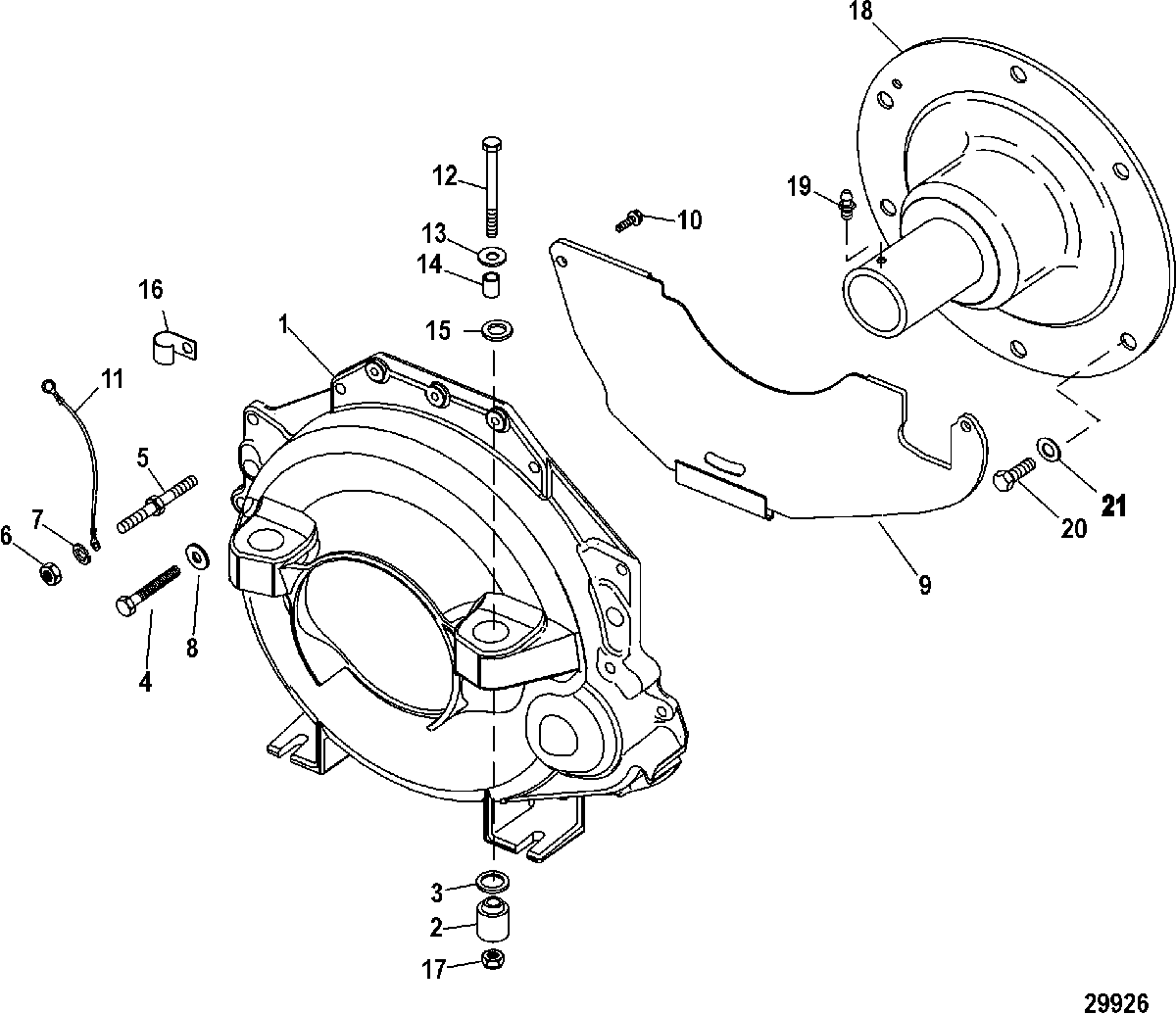

Flywheel Housing для Mercruiser - 8.2L Mag (Base Model) 1A351597 & Up

  • №
    Артикул
    Название
  • 1
    865657A04 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    865330A02 MOUNT KIT, Rubber
    MOUNT KIT, Rubber
  • 3
    23-99322 SPACER
    SPACER
  • 4
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel
    SCREW, (.375-16 x 1.250) Stainless Steel
  • 5
    16-861316 STUD
    STUD
  • 6
    11-82671112 NUT, (.375-16)
    NUT, (.375-16)
  • 7
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    807260A2 COVER KIT, Flywheel
    COVER KIT, Flywheel
  • NS
    11-807296 NUT, (.250-20)
    NUT, (.250-20)
  • 10
    10-86885 SCREW, (.250-20 x 1.500) Stainless Steel
    SCREW, (.250-20 x 1.500) Stainless Steel
  • 11
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
  • 12
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
  • 13
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 14
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 15
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel
    WASHER, (.530 x .870 x .105) Stainless Steel
  • 16
    54-92850 CLAMP, Harnesss Support
    CLAMP, Harnesss Support
  • 17
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 18
    8M0098796 COUPLER ASSEMBLY, Engine - Long Steel Hub
    COUPLER ASSEMBLY, Engine - Long Steel Hub
  • 19
    22-74036 FITTING, Grease
    FITTING, Grease
  • 20
    10-863480 SCREW, (.375-16 x 1.125)
    SCREW, (.375-16 x 1.125)
  • 21
    12-25909 WASHER, (.406 x .812 x .065)
    WASHER, (.406 x .812 x .065)
