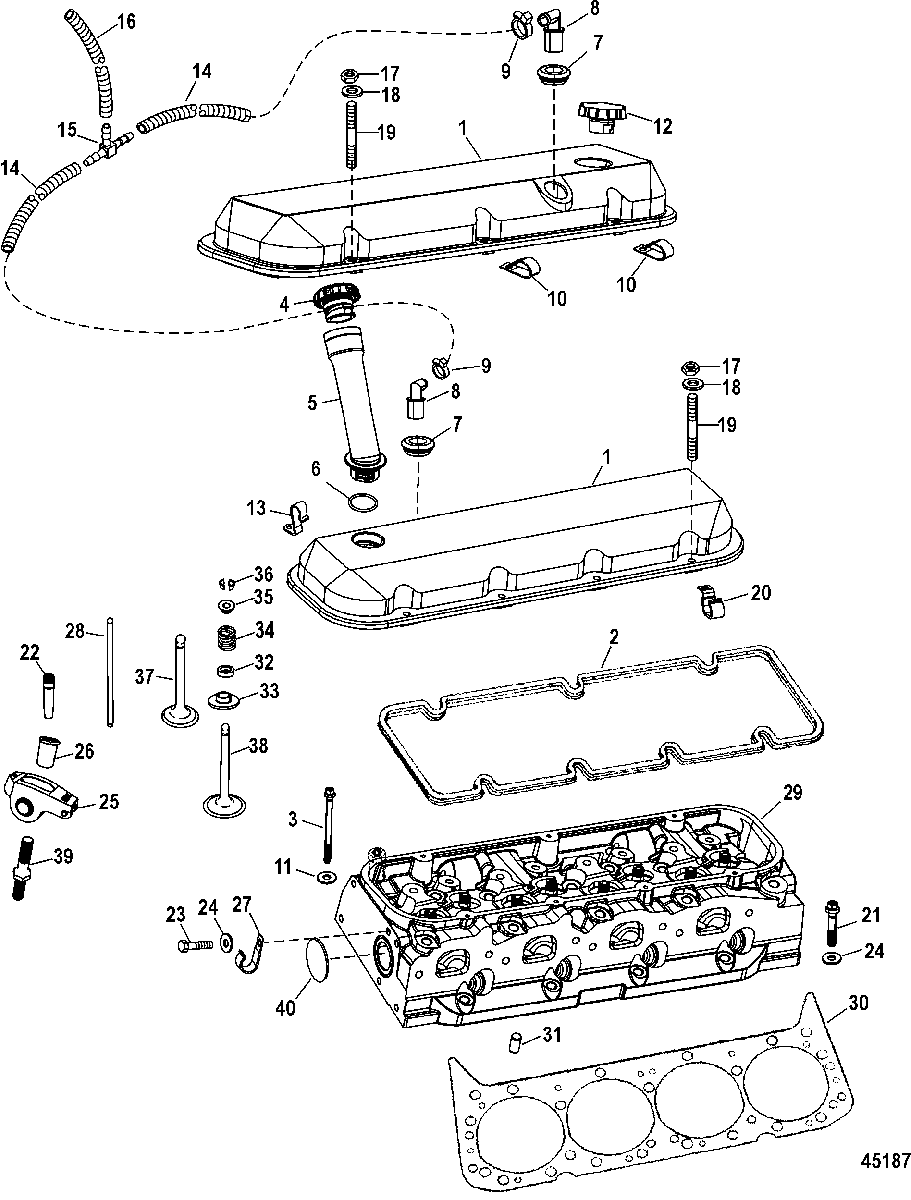

Cylinder Head для Mercruiser - 8.2L Mag (Base Model) 1A351597 & Up

  • №
    Артикул
    Название
  • 1
    8M0045254 COVER ASSEMBLY, Rocker
    COVER ASSEMBLY, Rocker
  • 2
    27-8M0092920 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 3
    10-8M0000467 SCREW, (.438-14 x 5.060) Black Oxide
    SCREW, (.438-14 x 5.060) Black Oxide
  • 3
    10-8M0000482 SCREW, (.438-14 x 4.060) Black Oxide
    SCREW, (.438-14 x 4.060) Black Oxide
  • 4
    8M0065093 CAP, Oil Fill
    CAP, Oil Fill
  • 5
    8M0045749 TUBE, Oil FIll
    TUBE, Oil FIll
  • 6
    25-8M0044601 O-Ring
    O-Ring
  • 7
    25-811553 GROMMET
    GROMMET
  • 8
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 9
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 10
    54-858951 J CLIP
    J CLIP
  • 11
    12-841990 WASHER, Special - Black
    WASHER, Special - Black
  • 12
    845753T1 CAP, Oil Fill
    CAP, Oil Fill
  • 13
    54-42553 J CLIP
    J CLIP
  • 14
    32-8M0086022 TUBING, (20.00 Inches Bulk), Cut 2 Pieces - 8.5 Inches
    TUBING, (20.00 Inches Bulk), Cut 2 Pieces - 8.5 Inches
  • 15
    22-849999 FITTING, Tee
    FITTING, Tee
  • 16
    32-8M0086022 TUBING, (20.00 Inches Bulk), Cut As Required
    TUBING, (20.00 Inches Bulk), Cut As Required
  • 17
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 18
    12-846673 WASHER, (.265 x .500 x .060) Stainless Steel
    WASHER, (.265 x .500 x .060) Stainless Steel
  • 19
    16-56766 STUD, (.250-20/.250-28 x 1.380)
    STUD, (.250-20/.250-28 x 1.380)
  • 20
    54-642351 J CLIP
    J CLIP
  • 21
    10-8M0000463 SCREW, (.438-14 x 2.060) Black Oxide
    SCREW, (.438-14 x 2.060) Black Oxide
  • 22
    840942 GUIDE, Pushrod
    GUIDE, Pushrod
  • 23
    10-99204 SCREW, (.437-14 x 1.00) Stainless Steel
    SCREW, (.437-14 x 1.00) Stainless Steel
  • 24
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 25
    8M0099002 ROCKER ARM ASSEMBLY
    ROCKER ARM ASSEMBLY
  • 26
    11-8M0043537 NUT, Rocker
    NUT, Rocker
  • 27
    54-843142 J CLIP
    J CLIP
  • 28
    848262 PUSH ROD, (7.550)
    - Intake
    PUSH ROD, (7.550)
    - Intake
  • 28
    848264 PUSH ROD, (8.550)
    - Exhaust
    PUSH ROD, (8.550)
    - Exhaust
  • 29
    900-8M0046344 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 30
    27-811546A04 GASKET KIT, Cylinder Head
    GASKET KIT, Cylinder Head
  • 31
    17-843931 PIN, Dowel, Cylinder Head Gasket Locator
    PIN, Dowel, Cylinder Head Gasket Locator
  • 32
    26-842755 SEAL, Valve, Intake And Exhaust
    SEAL, Valve, Intake And Exhaust
  • 33
    840678 SEAT, Spring
    SEAT, Spring
  • 34
    24-8M0042978 SPRING, Valve
    SPRING, Valve
  • 35
    8M0043175 RETAINER, Valve Spring
    RETAINER, Valve Spring
  • 36
    8M0042576 KEY, Valve Stem
    KEY, Valve Stem
  • 37
    8M0046324 VALVE, Intake
    VALVE, Intake
  • 38
    8M0046325 VALVE, Exhaust
    VALVE, Exhaust
  • 39
    16-95820 STUD, Rocker Arm Valve
    - Intake
    STUD, Rocker Arm Valve
    - Intake
  • 39
    16-843129 STUD, Rocker Arm Valve
    - Exhaust
    STUD, Rocker Arm Valve
    - Exhaust
  • 40
    19-47463 EXPANSION PLUG
    EXPANSION PLUG
