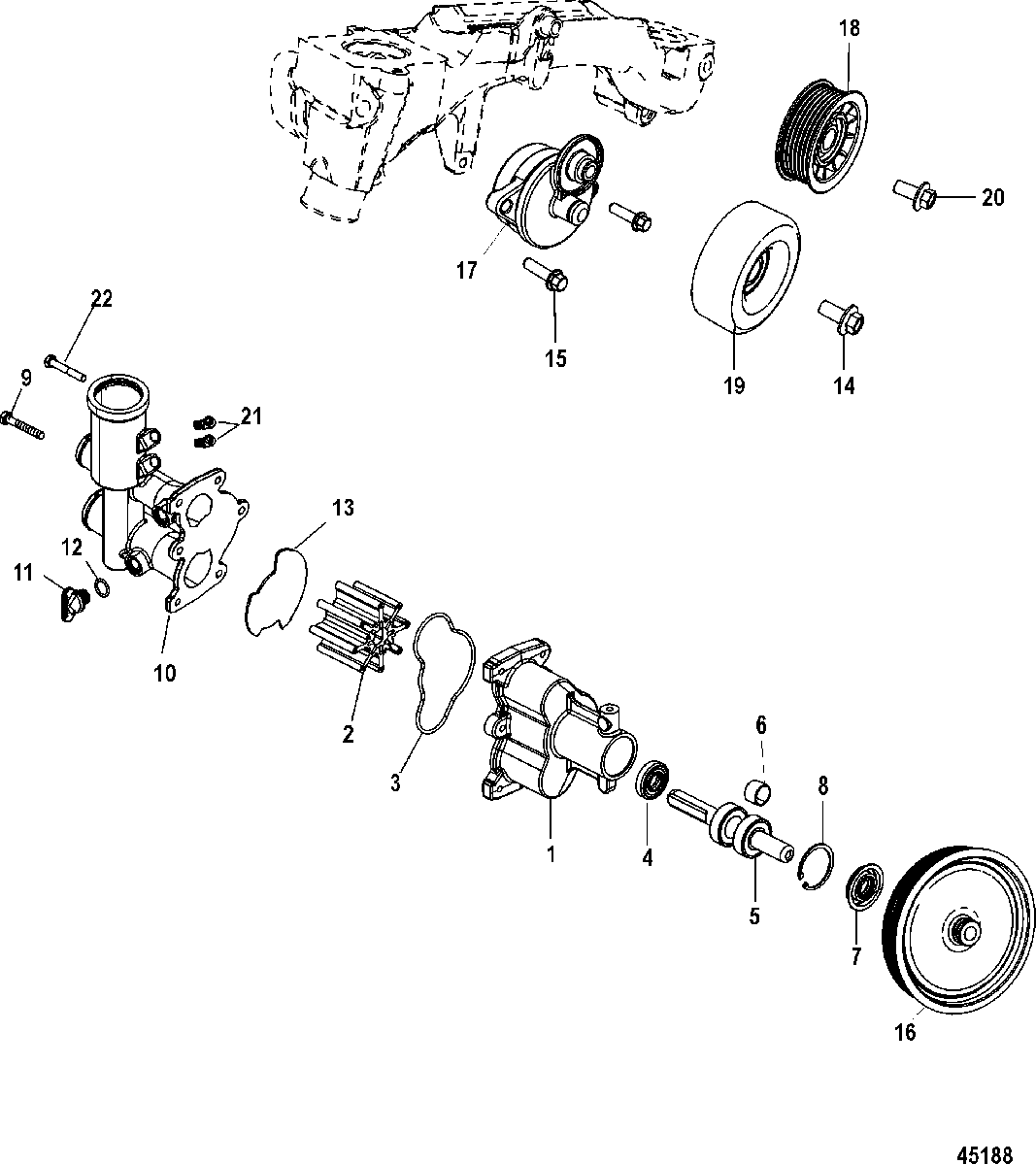

Seawater Pump для Mercruiser - 8.2L Mag (Base Model) 1A351597 & Up

  • №
    Артикул
    Название
  • -
    46-8M0137216 PUMP KIT, Sea Water, Without Air Fittings
    PUMP KIT, Sea Water, Without Air Fittings
  • -
    46-8M0137217 PUMP KIT, Sea Water, With Air Fittings
    PUMP KIT, Sea Water, With Air Fittings
  • 1
    8M0118062 HOUSING ASSEMBLY, Impeller
    HOUSING ASSEMBLY, Impeller
  • 2
    47-8M0104229 IMPELLER
    IMPELLER
  • 3
    8M2021987 O-RING, Formed
    O-RING, Formed
  • -
    8M0050018 DRIVESHAFT ASSEMBLY KIT
    DRIVESHAFT ASSEMBLY KIT
  • 4
    26-8M2001645 SEAL, Oil
    SEAL, Oil
  • 5
    8M0050018 DRIVESHAFT ASSEMBLY, Impeller
    DRIVESHAFT ASSEMBLY, Impeller
  • 6
    NSS NOT SOLD SEPARATE, SPACER
    NOT SOLD SEPARATE, SPACER
  • 7
    26-862040 SEAL, Lip
    SEAL, Lip
  • 8
    NSS NOT SOLD SEPARATE, SNAP RING
    NOT SOLD SEPARATE, SNAP RING
  • 9
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 10
    863674A04 COVER KIT, Impeller Housing
    COVER KIT, Impeller Housing
  • 11
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 12
    25-26802 O-RING, (.424 x .103)
    O-RING, (.424 x .103)
  • 13
    8M2014176 PLATE, Wear
    PLATE, Wear
  • 14
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 15
    10-8M0103813 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 16
    8M0141645 PULLEY
    PULLEY
  • 17
    865597T TENSIONER, Belt
    TENSIONER, Belt
  • 18
    807757T PULLEY ASSEMBLY, Idler - Black
    PULLEY ASSEMBLY, Idler - Black
  • 19
    865777 PULLEY, Idler, Non-Grooved
    PULLEY, Idler, Non-Grooved
  • 20
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 21
    22-8M0082320 FITTING, Orange - Straight
    FITTING, Orange - Straight
  • 21
    22-8M0082319 FITTING, Gray - Straight
    FITTING, Gray - Straight
  • 22
    10-865152 SCREW, (M6)
    SCREW, (M6)
