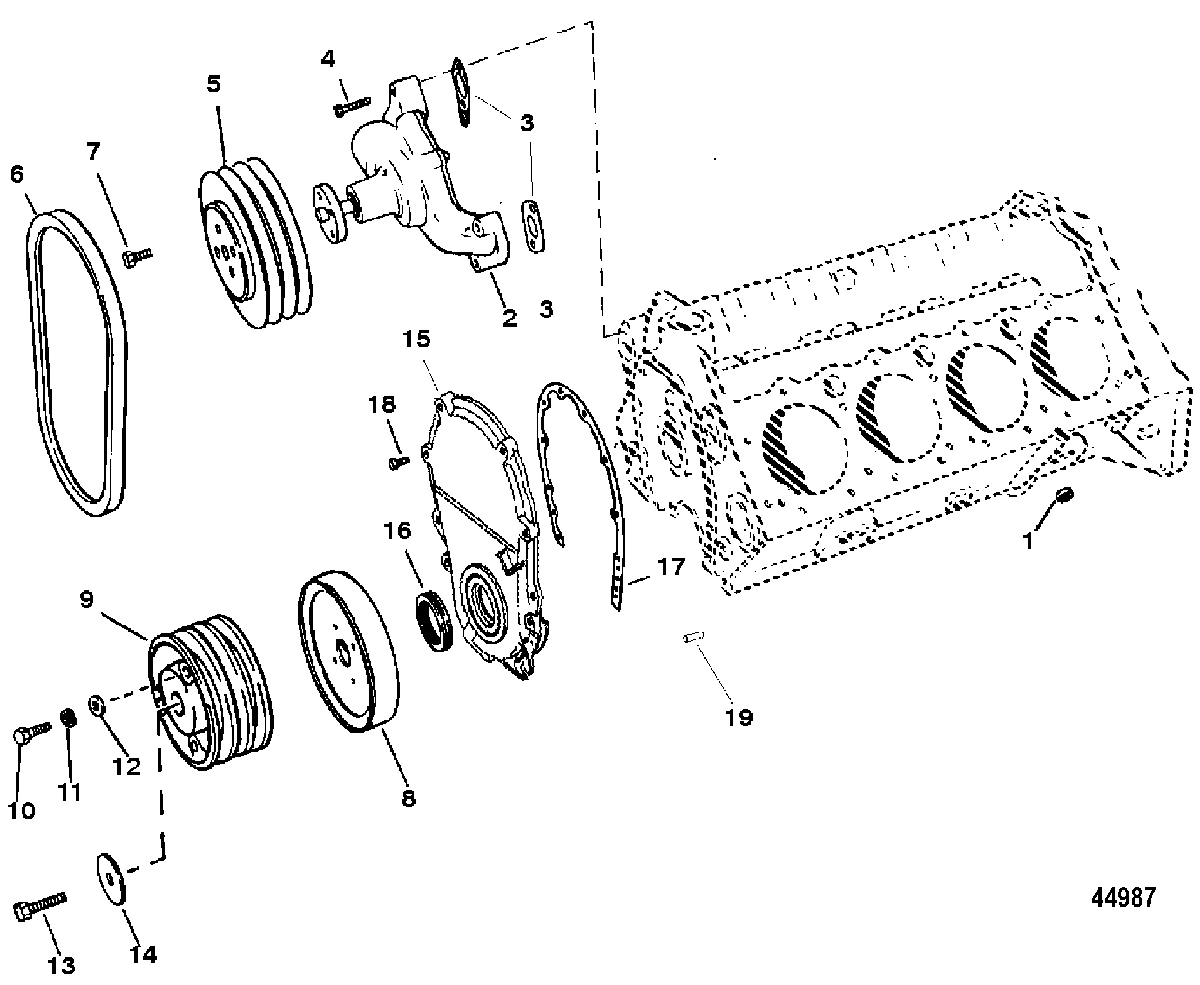

WATER PUMP AND FRONT COVER для Mercruiser - 7.4LX BRAVO (MPI)(GEN. VI) GM 454 V-8 1996-1997 0F802000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    807211 VALVE, Relief, Oil By-Pass
    (30 PSI)
    VALVE, Relief, Oil By-Pass
    (30 PSI)
  • 2
    46-8M0113735 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 3
    27-49110 GASKET, Circulating Water Pump Mount
    GASKET, Circulating Water Pump Mount
  • 4
    10-805611 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 5
    19692T01 PULLEY, (7 In. Diameter)
    PULLEY, (7 In. Diameter)
  • 6
    57-48122Q BELT, (48 Inches)
    BELT, (48 Inches)
  • 7
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 8
    8M0082186 BALANCER, Harmonic
    BALANCER, Harmonic
  • 9
    90081T PULLEY
    PULLEY
  • 10
    10-75334 SCREW, (.375-24 x 3.00)
    SCREW, (.375-24 x 3.00)
  • 11
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 12
    12-34714 WASHER
    WASHER
  • 13
    10-845627 SCREW, (.500-20 x 2.500)
    SCREW, (.500-20 x 2.500)
  • 14
    12-49103 WASHER
    WASHER
  • 15
    845610T COVER ASSEMBLY, Timing Chain
    COVER ASSEMBLY, Timing Chain
  • 16
    26-8219471 SEAL, Oil
    SEAL, Oil
  • 17
    27-850456 GASKET, Front Cover Mount
    GASKET, Front Cover Mount
  • 18
    10-850455 SCREW, (1/4-20 x 0.5)
    SCREW, (1/4-20 x 0.5)
  • 19
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • -
    27-805396A95 GASKET SET, Overhaul
    GASKET SET, Overhaul
