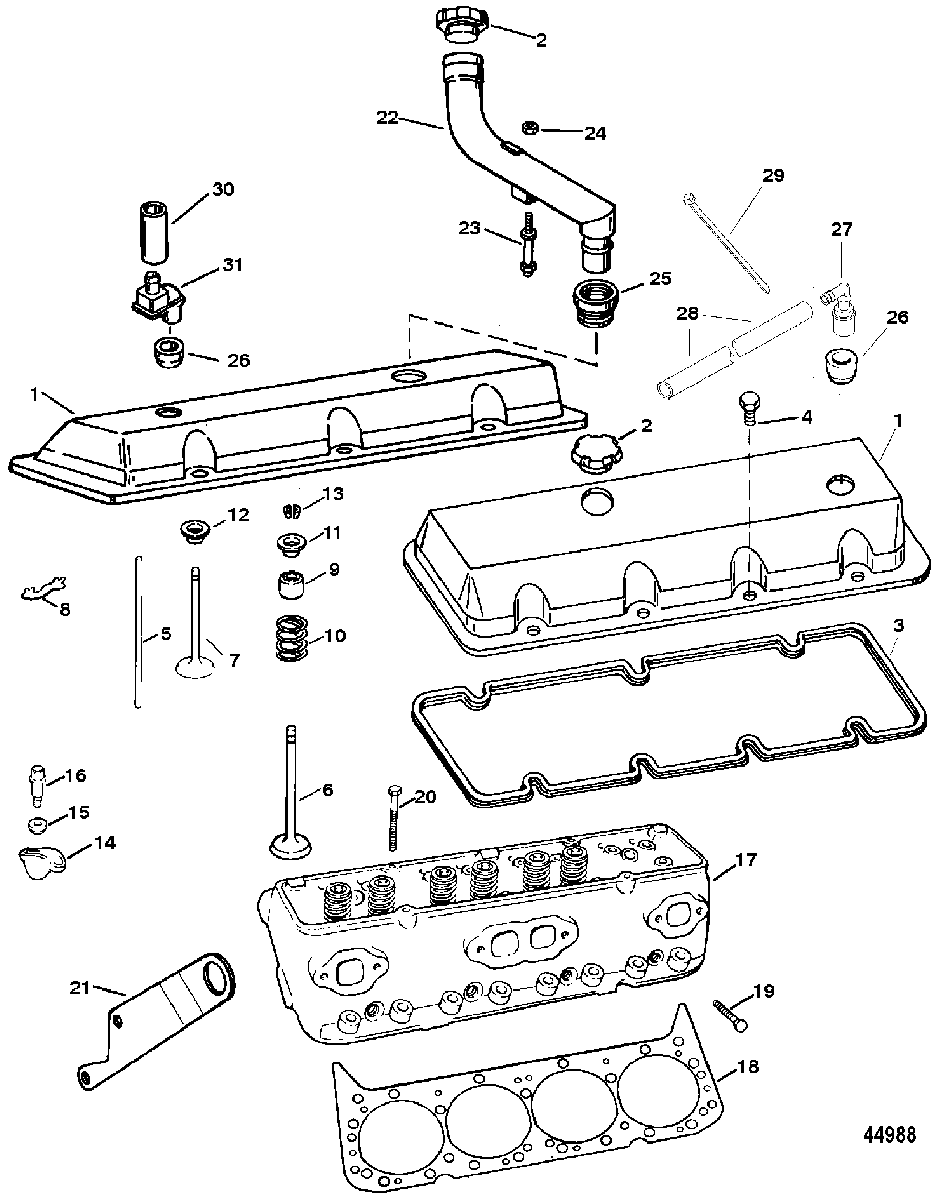

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 7.4LX BRAVO (MPI)(GEN. VI) GM 454 V-8 1996-1997 0F802000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    850462 COVER, Rocker
    COVER, Rocker
  • 2
    36-811569 CAP, Oil Tank
    CAP, Oil Tank
  • 3
    27-8M0092920 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 4
    10-811589 BOLT, (1/4-20 x 0.875)
    BOLT, (1/4-20 x 0.875)
  • 5
    850468 PUSH ROD
    (INTAKE)
    PUSH ROD
    (INTAKE)
  • 5
    850469 PUSH ROD
    (EXHAUST)
    PUSH ROD
    (EXHAUST)
  • 6
    814506 VALVE, Exhaust
    (STANDARD)
    VALVE, Exhaust
    (STANDARD)
  • 6
    814507001 VALVE, Exhaust
    (.015 O.S.)
    VALVE, Exhaust
    (.015 O.S.)
  • 7
    49134 VALVE, Intake
    (STANDARD)
    VALVE, Intake
    (STANDARD)
  • 8
    811585 GUIDE, Push Rod
    GUIDE, Push Rod
  • 9
    26-811545 SEAL, Valve
    SEAL, Valve
  • 10
    24-850465T SPRING, Valve
    SPRING, Valve
  • 11
    850463 ROTATOR
    (EXHAUST)
    ROTATOR
    (EXHAUST)
  • 12
    850464 CAP
    (INTAKE)
    CAP
    (INTAKE)
  • 13
    28-54530 KEY, Rocker
    KEY, Rocker
  • 14
    850471 ARM, Rocker
    ARM, Rocker
  • 15
    850472 BALL, Rocker Arm
    BALL, Rocker Arm
  • 16
    10-811593 BOLT, Rocker Arm
    BOLT, Rocker Arm
  • 17
    938-883492R1 CYLINDER HEAD
    CYLINDER HEAD
  • 18
    27-879150141 GASKET, Cylinder Head
    GASKET, Cylinder Head
  • 19
    8M0102366 BOLT, (2.00 Inch)
    BOLT, (2.00 Inch)
  • 20
    8M0102366 BOLT, (4.125 Inch)
    BOLT, (4.125 Inch)
  • 21
    807081T BRACKET, Lifting Eye (Front)
    BRACKET, Lifting Eye (Front)
  • 22
    36-807131T TUBE, Oil Fill
    TUBE, Oil Fill
  • 23
    16-805706 STUD
    STUD
  • 24
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 25
    26-805622 GROMMET
    GROMMET
  • 26
    25-811553 GROMMET
    GROMMET
  • 27
    21-806603 VALVE, PVC
    VALVE, PVC
  • 28
    32-8M0062321 HOSE, (33.00 Inches Bulk)
    HOSE, (33.00 Inches Bulk)
  • 29
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 30
    32-8M0062669 TUBING, (24.00 Inches Bulk), Vent
    (USE WITH METAL FLAME ARRESTOR)
    TUBING, (24.00 Inches Bulk), Vent
    (USE WITH METAL FLAME ARRESTOR)
  • 30
    32-8M0086022 HOSE, Breather Vent
    (USE WITH PLASTIC FLAME ARRESTOR)
    HOSE, Breather Vent
    (USE WITH PLASTIC FLAME ARRESTOR)
  • 31
    807925A2 BAFFLE, Breather
    BAFFLE, Breather
  • -
    27-805396A95 GASKET SET, Overhaul
    GASKET SET, Overhaul
