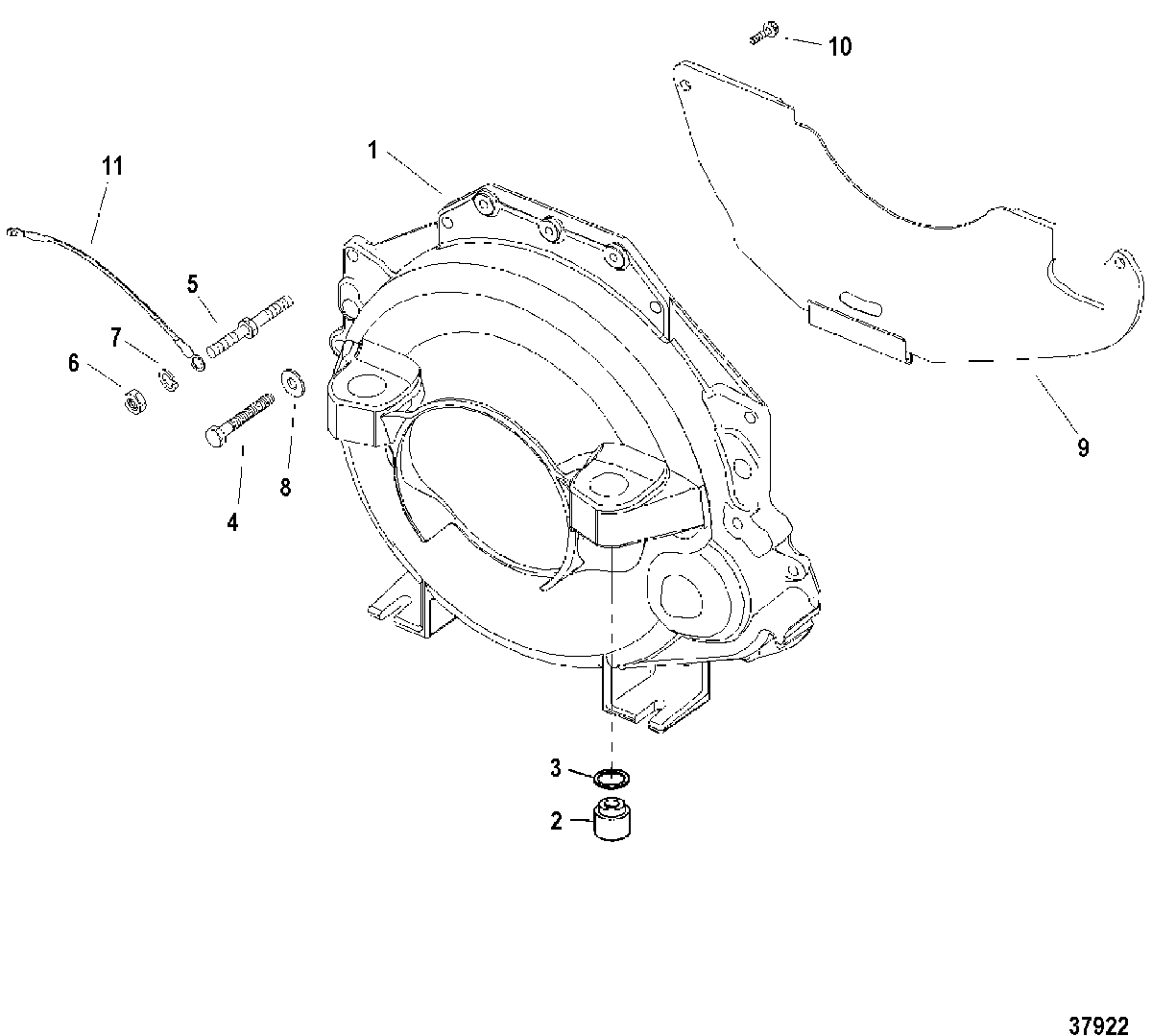

FLYWHEEL HOUSING для Mercruiser - 7.4LX BRAVO (MPI)(GEN. VI) GM 454 V-8 1996-1997 0F802000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    865657A04 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    865330A02 MOUNT, Rubber
    MOUNT, Rubber
  • 3
    23-99322 SPACER
    SPACER
  • 4
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 4
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 5
    16-8M2004610 STUD, (.375-16 x 2.130), Grounding
    STUD, (.375-16 x 2.130), Grounding
  • 6
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 7
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 8
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 9
    807260A2 COVER
    METAL COVER
    COVER
    METAL COVER
  • 10
    10-32773 SCREW, (.250-20 x .875)
    METAL COVER
    SCREW, (.250-20 x .875)
    METAL COVER
  • 9
    807260A2 COVER KIT, Flywheel
    PLASTIC COVER
    COVER KIT, Flywheel
    PLASTIC COVER
  • 10
    10-76596 SCREW, (.250-20 x 1.250)
    PLASTIC COVER
    SCREW, (.250-20 x 1.250)
    PLASTIC COVER
  • 11
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
