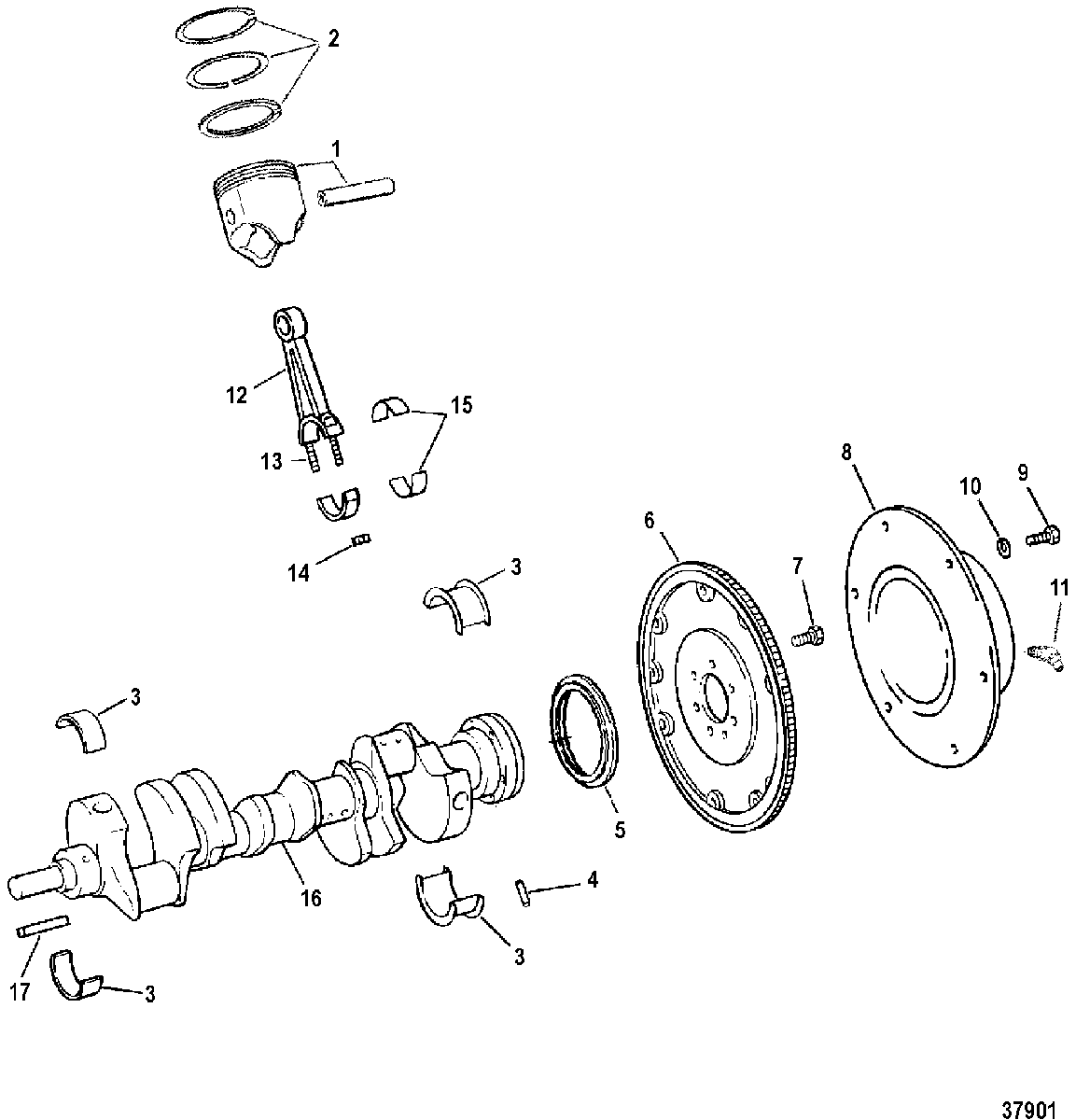

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercruiser - 7.4LX BRAVO (MPI)(GEN. VI) GM 454 V-8 1996-1997 0F802000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    737-881714T PISTON ASSEMBLY (Standard)
    PISTON ASSEMBLY (Standard)
  • 1
    737-850449001 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 2
    39-827651T RING, Piston (Standard)
    RING, Piston (Standard)
  • 2
    39-850447 RING, Piston (.030 O.S.)
    RING, Piston (.030 O.S.)
  • 3
    23-818473001 BEARING SET, Main - Standard
    BEARING SET, Main - Standard
  • 3
    23-818474 BEARING SET, Main - .001 Undersize
    BEARING SET, Main - .001 Undersize
  • 3
    23-818475 BEARING SET, Main - .002 Undersize
    BEARING SET, Main - .002 Undersize
  • 3
    23-818476001 BEARING SET, Main - .010 Undersize
    BEARING SET, Main - .010 Undersize
  • 3
    23-818477 BEARING SET, Main - .020 Undersize
    BEARING SET, Main - .020 Undersize
  • 4
    17-43504 PIN, Dowel (1/4 Diameter)
    PIN, Dowel (1/4 Diameter)
  • 5
    26-811554 SEAL, Oil
    SEAL, Oil
  • 6
    230-811562T FLYWHEEL
    FLYWHEEL
  • 7
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 8
    8M0098795 COUPLER ASSEMBLY, Engine
    COUPLER ASSEMBLY, Engine
  • 9
    10-14883 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 10
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 11
    22-49099 FITTING, Grease
    FITTING, Grease
  • 12
    614-8M0030663 CONNECTING ROD
    CONNECTING ROD
  • 13
    10-52192 BOLT
    BOLT
  • 14
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 15
    23-85726001 BEARING SET, Connecting Rod - Standard
    BEARING SET, Connecting Rod - Standard
  • 15
    23-85727 BEARING SET, Connecting Rod - (.001 Undersize)
    BEARING SET, Connecting Rod - (.001 Undersize)
  • 15
    23-85728 BEARING SET, Connecting Rod - (.002 Undersize)
    BEARING SET, Connecting Rod - (.002 Undersize)
  • 15
    23-85691 BEARING SET, Connecting Rod - (.010 Undersize)
    BEARING SET, Connecting Rod - (.010 Undersize)
  • 15
    23-85729 BEARING SET, Connecting Rod - (.020 Undersize)
    BEARING SET, Connecting Rod - (.020 Undersize)
  • 16
    429-811551 CRANKSHAFT
    CRANKSHAFT
  • 17
    28-845607 KEY
    KEY
  • -
    27-805396A95 GASKET SET, Overhaul
    GASKET SET, Overhaul
