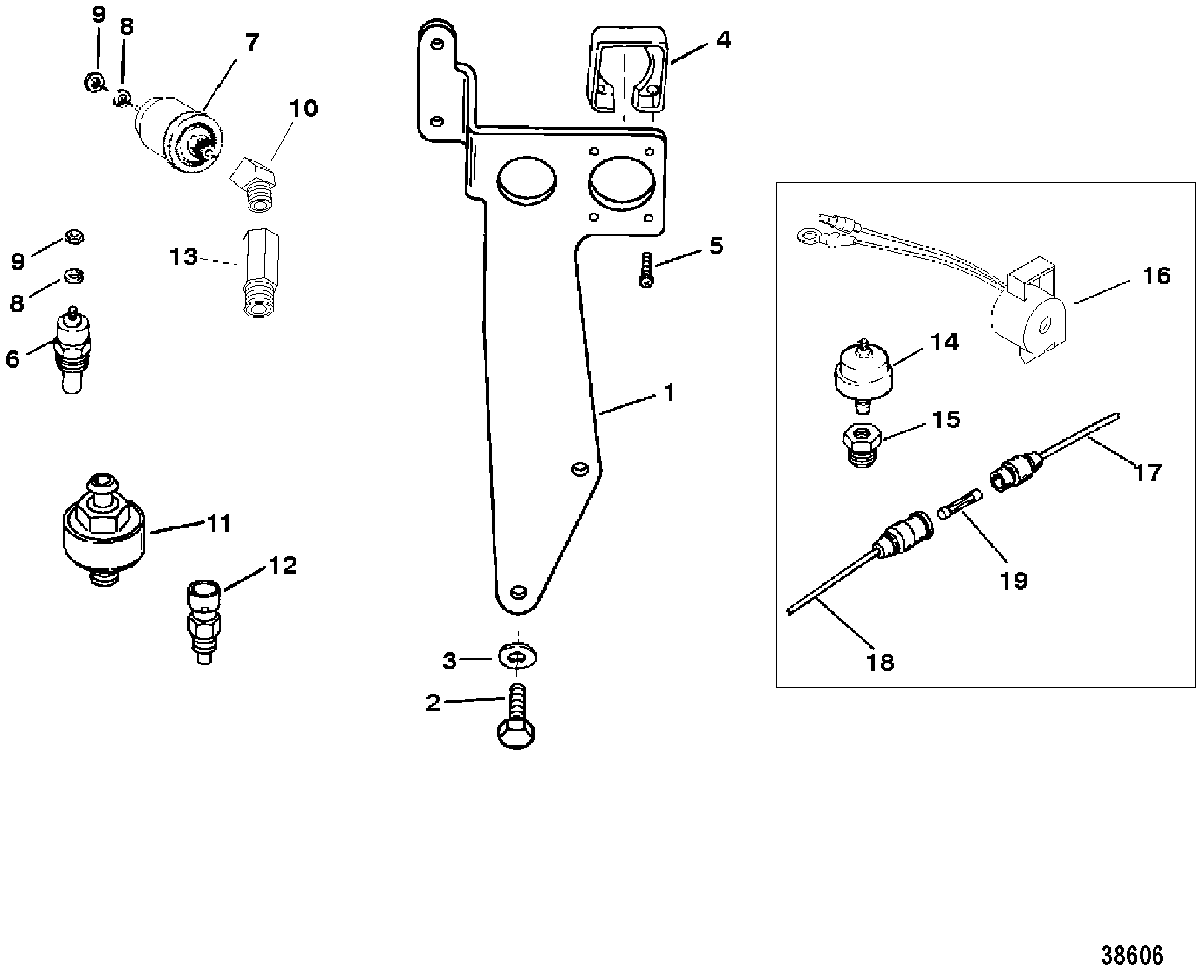

SENDERS AND HARNESS BRACKET для Mercruiser - 7.4LX BRAVO (MPI)(GEN. VI) GM 454 V-8 1996-1997 0F802000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    805441T1 BRACKET/LIFTING EYE (Rear)
    BRACKET/LIFTING EYE (Rear)
  • 2
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 3
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 4
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 5
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 6
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 6
    49734 SENDER ASSEMBLY, Water Temperature
    (DUAL STATION)
    SENDER ASSEMBLY, Water Temperature
    (DUAL STATION)
  • 7
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 7
    37293T SENDER ASSEMBLY, Oil Pressure
    (DUAL STATION)
    SENDER ASSEMBLY, Oil Pressure
    (DUAL STATION)
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 9
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 10
    22-8M0123050 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 11
    8M0077616 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 12
    805218T SENSOR, Coolant Temperature
    SENSOR, Coolant Temperature
  • 13
    22-805059 FITTING, Reducer
    FITTING, Reducer
  • 14
    87-805605A1 SWITCH ASSEMBLY, Oil Pressure
    AUDIO WARNING SYSTEM
    SWITCH ASSEMBLY, Oil Pressure
    AUDIO WARNING SYSTEM
  • 15
    22-64013 FITTING, (.375 Male To .125 Female)
    AUDIO WARNING SYSTEM
    FITTING, (.375 Male To .125 Female)
    AUDIO WARNING SYSTEM
  • 16
    816492A6 ALARM KIT
    AUDIO WARNING SYSTEM
    ALARM KIT
    AUDIO WARNING SYSTEM
  • 17
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (Male)
    AUDIO WARNING SYSTEM
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (Male)
    AUDIO WARNING SYSTEM
  • 18
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red (Female)
    AUDIO WARNING SYSTEM
    CABLE ASSEMBLY, (5.00 Inches) Red (Female)
    AUDIO WARNING SYSTEM
  • 19
    88-79091 FUSE, 20 Ampere
    AUDIO WARNING SYSTEM
    FUSE, 20 Ampere
    AUDIO WARNING SYSTEM
