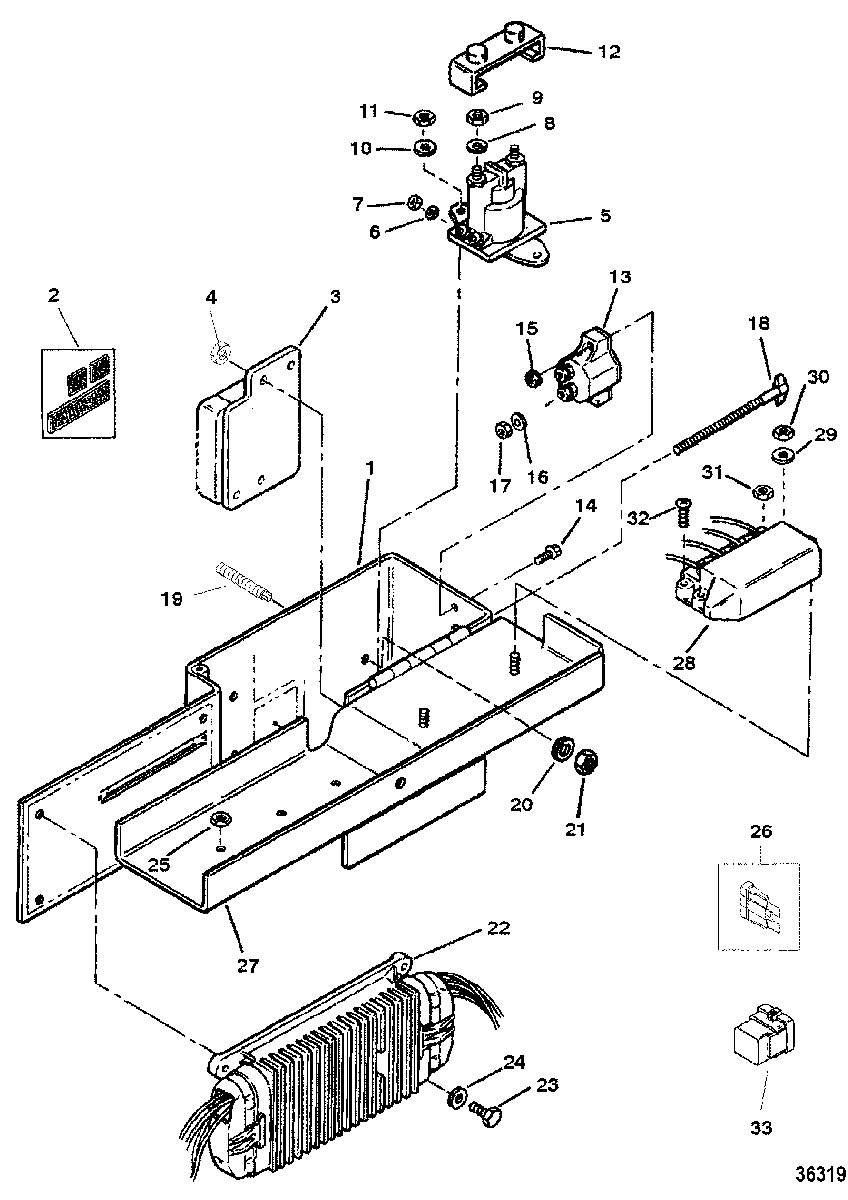

ELECTRICAL BOX AND COMPONENTS для Mercruiser - 7.4LX BRAVO (MPI)(GEN. VI) GM 454 V-8 1996-1997 0F802000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    807323A5 BOX ASSEMBLY, Electrical Components
    BOX ASSEMBLY, Electrical Components
  • 2
    806762A1 VELCRO KIT
    VELCRO KIT
  • 3
    805443 MODULE ASSEMBLY, Spark Control
    MODULE ASSEMBLY, Spark Control
  • 4
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 5
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 6
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 7
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 8
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 9
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 10
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 11
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 12
    85-97861 INSULATOR, Starter Solenoid
    INSULATOR, Starter Solenoid
  • 13
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 14
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 15
    11-61356 NUT, (#10-32) Reduced Hex
    NUT, (#10-32) Reduced Hex
  • 16
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 17
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 18
    805615A2 THUMB SCREW ASSEMBLY, Thumb
    THUMB SCREW ASSEMBLY, Thumb
  • 19
    23-92152T SPACER, (.27 x .75 x .38)
    SPACER, (.27 x .75 x .38)
  • 20
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 21
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 22
    807268T3 ECM, Engine Control Module
    SN# 0K147349 & Below
    ECM, Engine Control Module
    SN# 0K147349 & Below
  • 22
    860251T1 ECM, Engine Control Module
    SN# 0K147350 & Up
    ECM, Engine Control Module
    SN# 0K147350 & Up
  • 23
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 24
    12-20533 WASHER
    WASHER
  • 25
    11-805562 NUT, (#10-24)
    NUT, (#10-24)
  • 26
    88-804642 FUSE, 15 Ampere
    FUSE, 15 Ampere
  • 26
    862647 FUSE, 10 Ampere
    FUSE, 10 Ampere
  • 27
    805439T3 LID, Electrical Box
    LID, Electrical Box
  • 28
    42600A09 CONTROLLER ASSEMBLY, Mercathode
    CONTROLLER ASSEMBLY, Mercathode
  • 29
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 30
    11-805562 NUT, (#10-24)
    NUT, (#10-24)
  • 31
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 32
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 33
    86-865202T RELAY, Fuel Pump
    RELAY, Fuel Pump
  • 33
    86-865202T RELAY, Fuel Pump, Ignition System
    RELAY, Fuel Pump, Ignition System
