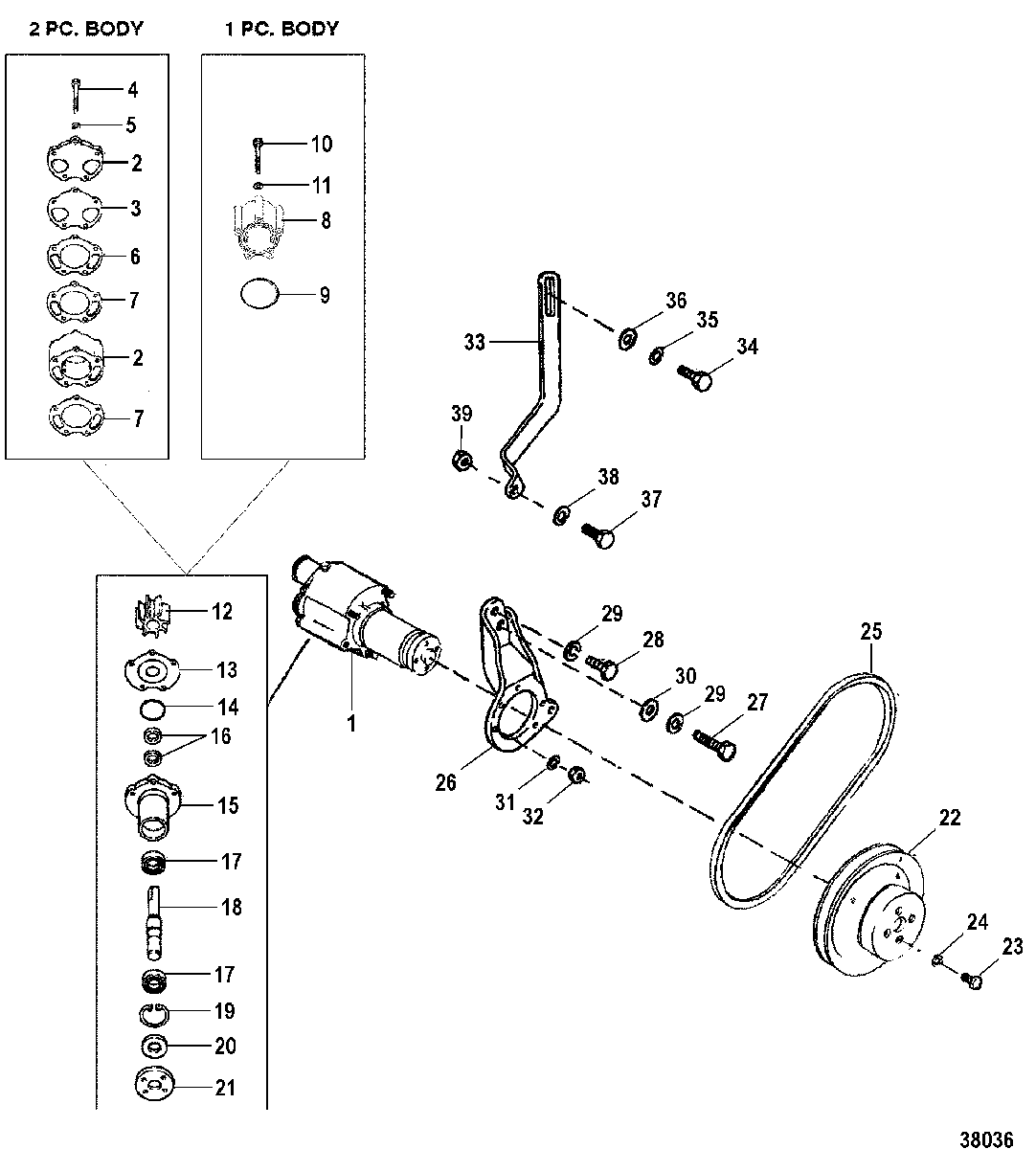

SEA WATER PUMP(FUEL COOLED SYSTEM) (S/N 0K147350 & UP) для Mercruiser - 7.4LX BRAVO (MPI)(GEN. VI) GM 454 V-8 1996-1997 0F802000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    46-807151A12 PUMP ASSEMBLY, Seawater
    PUMP ASSEMBLY, Seawater
  • 2
    46-807151A14 BODY AND COVER
    TWO PIECE BODY
    BODY AND COVER
    TWO PIECE BODY
  • 3
    27-8052151 GASKET
    TWO PIECE BODY
    GASKET
    TWO PIECE BODY
  • 4
    10-73275 SCREW, (.312-18 x 2.88)
    TWO PIECE BODY
    SCREW, (.312-18 x 2.88)
    TWO PIECE BODY
  • 4
    10-99347 SCREW, (.312-18 x 3.75)
    TWO PIECE BODY
    SCREW, (.312-18 x 3.75)
    TWO PIECE BODY
  • 5
    12-20084 WASHER, (.328 x .562 x .062)
    TWO PIECE BODY
    WASHER, (.328 x .562 x .062)
    TWO PIECE BODY
  • 6
    94916 WEAR PLATE, Wear (Outer)
    TWO PIECE BODY
    WEAR PLATE, Wear (Outer)
    TWO PIECE BODY
  • 7
    27-94914 GASKET
    TWO PIECE BODY
    GASKET
    TWO PIECE BODY
  • 8
    46-807151A14 BODY AND COVER, Water Pump
    ONE PIECE BODY
    BODY AND COVER, Water Pump
    ONE PIECE BODY
  • 9
    25-33465 QUAD RING
    ONE PIECE BODY
    QUAD RING
    ONE PIECE BODY
  • 10
    10-807356 SCREW, (.312-18 x 2.680)
    ONE PIECE BODY
    SCREW, (.312-18 x 2.680)
    ONE PIECE BODY
  • 10
    10-74822 SCREW, (.312-18 x 3.500)
    ONE PIECE BODY
    SCREW, (.312-18 x 3.500)
    ONE PIECE BODY
  • 11
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    ONE PIECE BODY
    WASHER, (.344 x .688 x .065) Stainless Steel
    ONE PIECE BODY
  • 12
    47-59362T1 IMPELLER
    IMPELLER
  • 13
    94576 WEAR PLATE, Wear (Inner)
    WEAR PLATE, Wear (Inner)
  • 14
    25-94288 QUAD RING
    QUAD RING
  • 15
    46-94913A2 HOUSING ASSEMBLY, Water Pump
    HOUSING ASSEMBLY, Water Pump
  • 16
    26-90562 SEAL, (1.254 x .312), Oil
    SEAL, (1.254 x .312), Oil
  • 17
    30-72961 BEARING, Ball
    BEARING, Ball
  • 18
    59501A1 SHAFT
    SHAFT
  • 19
    53-23720 RING, Retaining, Snap
    RING, Retaining, Snap
  • 20
    26-72785 SEAL, Oil
    SEAL, Oil
  • 21
    47530 HUB
    HUB
  • 22
    52822T PULLEY
    PULLEY
  • 23
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 24
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 25
    57-13457Q BELT
    BELT
  • 26
    15295T BRACKET
    BRACKET
  • 27
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 28
    10-17965 SCREW, (.437-14 x .70)
    SCREW, (.437-14 x .70)
  • 29
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 30
    12-27025 WASHER
    WASHER
  • 31
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 32
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 33
    15751T BRACE
    BRACE
  • 34
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 35
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 36
    12-74758 WASHER
    WASHER
  • 37
    10-35786 SCREW, (.375-24 x 1.00)
    SCREW, (.375-24 x 1.00)
  • 38
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 39
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
