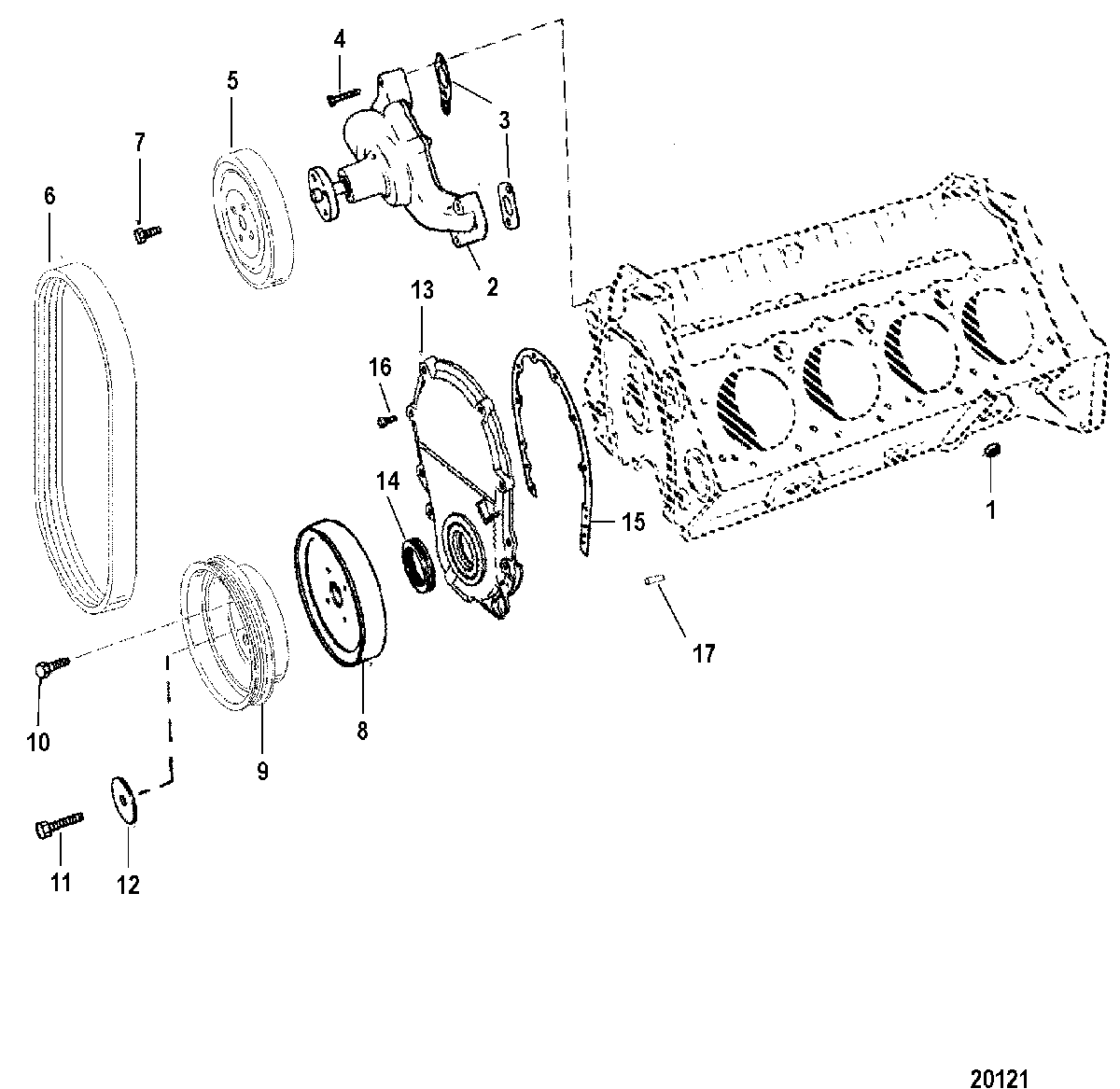

WATER PUMP AND FRONT COVER для Mercruiser - 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 1998-2000 0L010003 THRU 0M024330

  • №
    Артикул
    Название
  • 1
    807211 VALVE, Relief
    (30 PSI)
    VALVE, Relief
    (30 PSI)
  • 2
    46-8M0113735 PUMP ASSEMBLY, Circulating Water
    PUMP ASSEMBLY, Circulating Water
  • 3
    27-49110 GASKET, Circulating Water Pump Mount
    GASKET, Circulating Water Pump Mount
  • 4
    10-805611 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 5
    807729T PULLEY
    PULLEY
  • 6
    57-861049Q BELT, Serpentine
    (Use With 4-3/4 in. Plastic P/S Pump Pulley)
    BELT, Serpentine
    (Use With 4-3/4 in. Plastic P/S Pump Pulley)
  • 6
    57-865615Q06 BELT, Serpentine
    (Use With 5-3/4 in. Metal P/S Pump Pulley)
    BELT, Serpentine
    (Use With 5-3/4 in. Metal P/S Pump Pulley)
  • 7
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 8
    8M0082186 BALANCER
    BALANCER
  • 9
    8077301 PULLEY
    PULLEY
  • 10
    10-58126 BOLT, (.375-24 x 1.25)
    BOLT, (.375-24 x 1.25)
  • 11
    10-845627 SCREW, (.500-20 x 2.500)
    SCREW, (.500-20 x 2.500)
  • 12
    12-49103 WASHER
    WASHER
  • 13
    845610T COVER ASSEMBLY, Cylinder Front
    COVER ASSEMBLY, Cylinder Front
  • 14
    26-8219471 SEAL
    SEAL
  • 15
    27-850456 GASKET, Front Cover Mount
    GASKET, Front Cover Mount
  • 16
    10-850455 SCREW, (1/4-20 x 0.5) (1/4-20 X 1/2 IN.)
    SCREW, (1/4-20 x 0.5) (1/4-20 X 1/2 IN.)
  • 17
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • -
    27-802567A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
