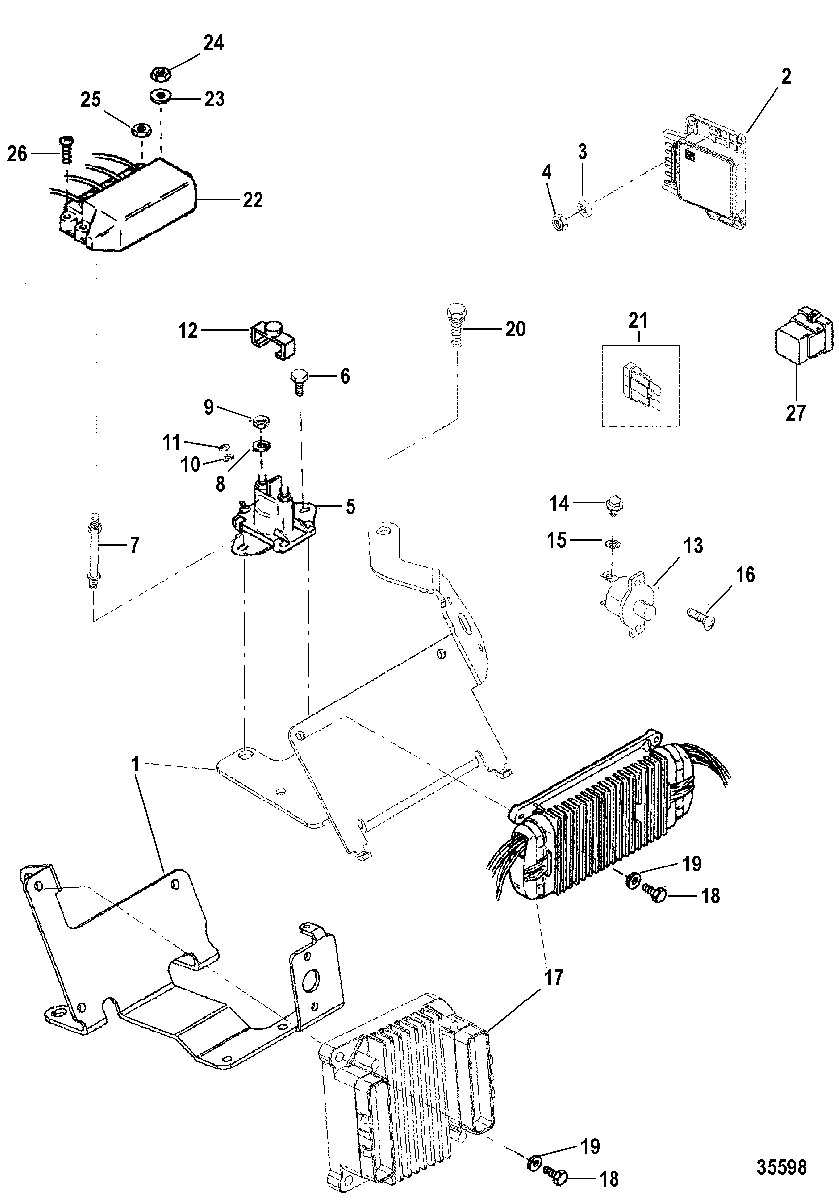

ELECTRICAL BRACKET AND COMPONENTS для Mercruiser - 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 1998-2000 0L010003 THRU 0M024330

  • №
    Артикул
    Название
  • 1
    861096T BRACKET, Electrical Components
    BRACKET, Electrical Components
  • 1
    861715T1 BRACKET, Electrical
    MEFI-3 SN# 0L085006 & Up
    BRACKET, Electrical
    MEFI-3 SN# 0L085006 & Up
  • 2
    861535T MODULE ASSEMBLY, Spark Control
    MODULE ASSEMBLY, Spark Control
  • 3
    12-20533 WASHER
    WASHER
  • 4
    11-805562 NUT, (#10-24)
    NUT, (#10-24)
  • 5
    89-96158T SOLENOID
    SOLENOID
  • 6
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 7
    16-805459 STUD, Mercathode Mounting
    STUD, Mercathode Mounting
  • 8
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 9
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 10
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 11
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 12
    85-97861 INSULATOR
    INSULATOR
  • 13
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 14
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 16
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 17
    861736R1 ECM, Engine Control Module
    MEFI-2 SN# 0L085005 & Below
    ECM, Engine Control Module
    MEFI-2 SN# 0L085005 & Below
  • 17
    891897A01 ECM, Engine Control Module
    MEFI-3 SN# 0L085006 & Up
    ECM, Engine Control Module
    MEFI-3 SN# 0L085006 & Up
  • 18
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 18
    10-28636 SCREW, (.250-20 x .750)
    MEFI-3 SN# 0L085006 & Up
    SCREW, (.250-20 x .750)
    MEFI-3 SN# 0L085006 & Up
  • 19
    12-20533 WASHER
    WASHER
  • 20
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 21
    88-804642 FUSE, 15 Ampere
    FUSE, 15 Ampere
  • 21
    862647 FUSE, 10 Ampere
    FUSE, 10 Ampere
  • 22
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 23
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 24
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 25
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 26
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 27
    86-865202T RELAY, FUEL PUMP
    RELAY, FUEL PUMP
  • 27
    86-865202T RELAY, IGNITION SYSTEM
    RELAY, IGNITION SYSTEM
