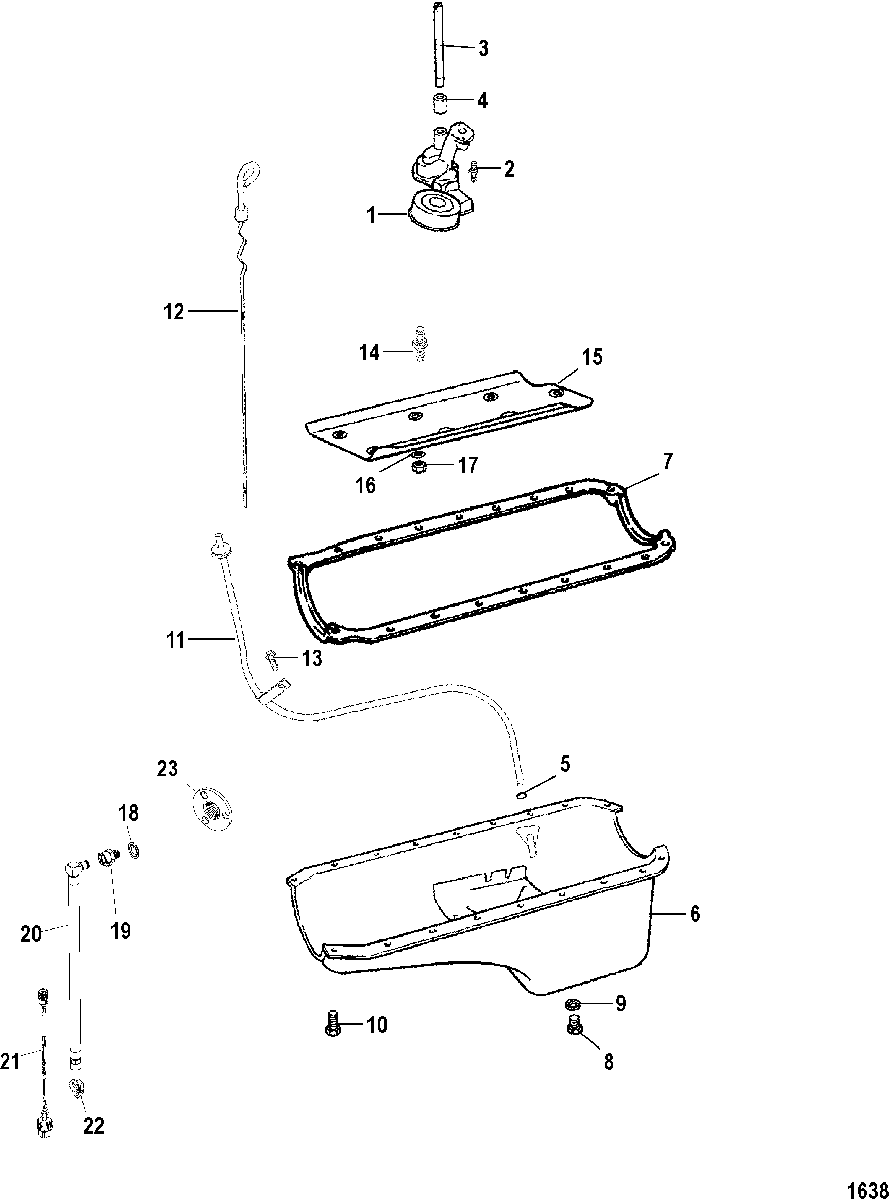

OIL PAN AND OIL PUMP для Mercruiser - 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 1998-2000 0L010003 THRU 0M024330

  • №
    Артикул
    Название
  • 1
    827643 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    16-845599 STUD
    STUD
  • 3
    8M0046892 SHAFT AND RETAINER
    SHAFT AND RETAINER
  • 4
    23-36183 RETAINER
    RETAINER
  • 5
    25-62704 O-RING, (.362 x .103)
    O-RING, (.362 x .103)
  • 6
    845668T PAN ASSEMBLY, Oil
    PAN ASSEMBLY, Oil
  • 7
    27-845628 GASKET
    GASKET
  • 8
    10-809911001 SCREW, Oil Drain (M12 x 1.75)
    SCREW, Oil Drain (M12 x 1.75)
  • 9
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 10
    10-841389 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 11
    818631A6 TUBE ASSEMBLY, Dipstick
    (Use W/Mando Alternator)
    TUBE ASSEMBLY, Dipstick
    (Use W/Mando Alternator)
  • 11
    818631A11 TUBE ASSEMBLY, Dipstick
    TUBE ASSEMBLY, Dipstick
  • 12
    861942T9 DIPSTICK, Oil Level
    DIPSTICK, Oil Level
  • 13
    10-8M0040582 SCREW
    SCREW
  • 14
    16-843375 STUD, (.375-16/.500-12 x 5.500)
    STUD, (.375-16/.500-12 x 5.500)
  • 15
    843945T BAFFLE
    BAFFLE
  • 16
    12-49112 WASHER
    WASHER
  • 17
    11-845602 NUT, (.375-16)
    NUT, (.375-16)
  • 18
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 19
    22-862811 FITTING, Quick Connect (Female)
    FITTING, Quick Connect (Female)
  • 20
    32-805505A4 HOSE, Oil Drain
    HOSE, Oil Drain
  • 21
    862827 TETHER ASSEMBLY
    TETHER ASSEMBLY
  • 22
    54-805524 CLIP
    CLIP
  • 23
    862777 FLANGE, Drain
    FLANGE, Drain
  • -
    27-802567A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
