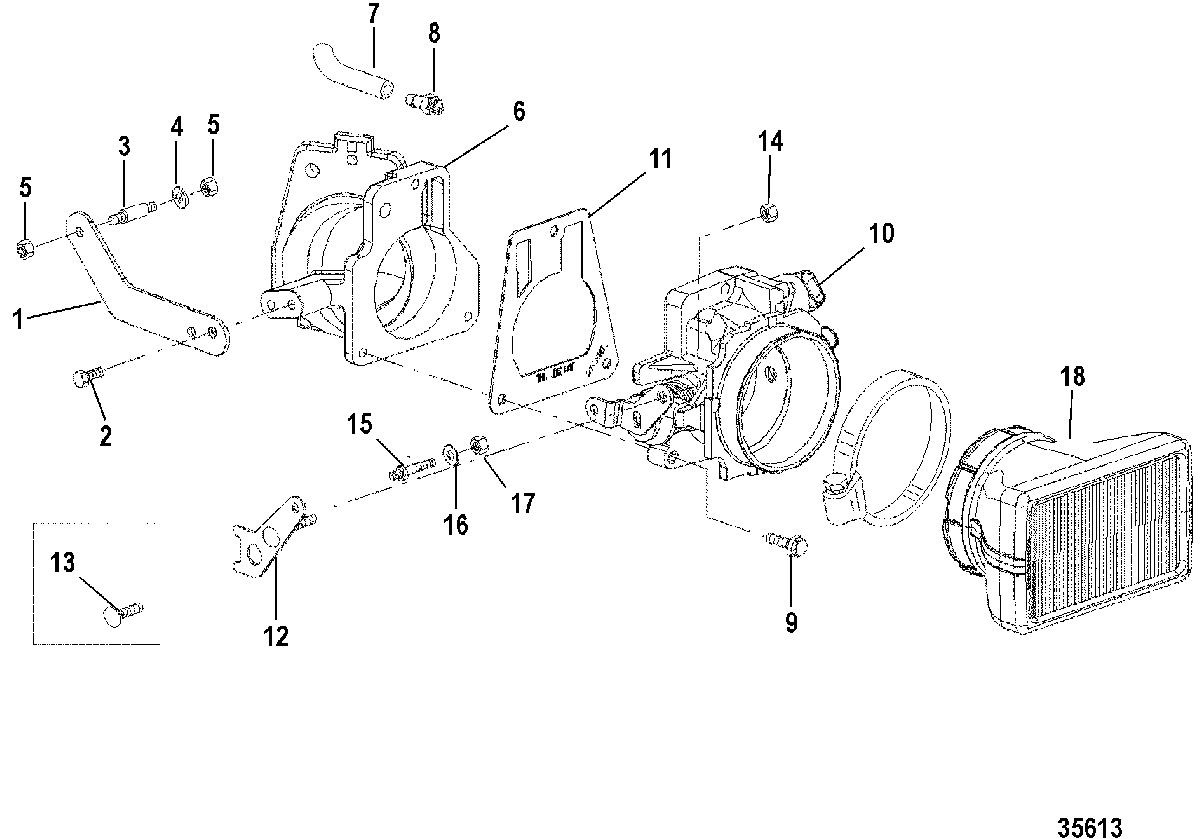

THROTTLE BODY AND LINKAGE для Mercruiser - 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 1998-2000 0L010003 THRU 0M024330

  • №
    Артикул
    Название
  • 1
    861121 BRACKET, Throttle Cable
    BRACKET, Throttle Cable
  • 2
    10-4000175 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 3
    16-38525 STUD
    STUD
  • 4
    12-20533 WASHER
    WASHER
  • 5
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 6
    860325A1 TUBE ASSEMBLY, Throttle Body Relocator
    TUBE ASSEMBLY, Throttle Body Relocator
  • 7
    32-8M0062321 HOSE, (33.00 Inches Bulk) (5 1/4 IN.)
    HOSE, (33.00 Inches Bulk) (5 1/4 IN.)
  • 8
    22-807942 FITTING
    FITTING
  • 9
    10-40062129 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 10
    802622A1 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • NS
    8M0097035 SENSOR, TPS
    SENSOR, TPS
  • NS
    803149 VALVE, Intake Air Control
    VALVE, Intake Air Control
  • NS
    25-802625 O-RING
    O-RING
  • NS
    10-853680 SCREW KIT
    SCREW KIT
  • 11
    27-8615181 GASKET, Throttle Body
    GASKET, Throttle Body
  • 12
    861120 LINKAGE, Throttle
    LINKAGE, Throttle
  • 13
    10-861465 SCREW (1/4-20 X 5/8 IN.)
    SCREW (1/4-20 X 5/8 IN.)
  • 14
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 15
    16-805526 STUD, (.250-28 x 1.540)
    STUD, (.250-28 x 1.540)
  • 16
    12-20533 WASHER
    WASHER
  • 17
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 18
    861062 FLAME ARRESTOR
    FLAME ARRESTOR
  • 19
    54-815504256 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • -
    27-802567A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
