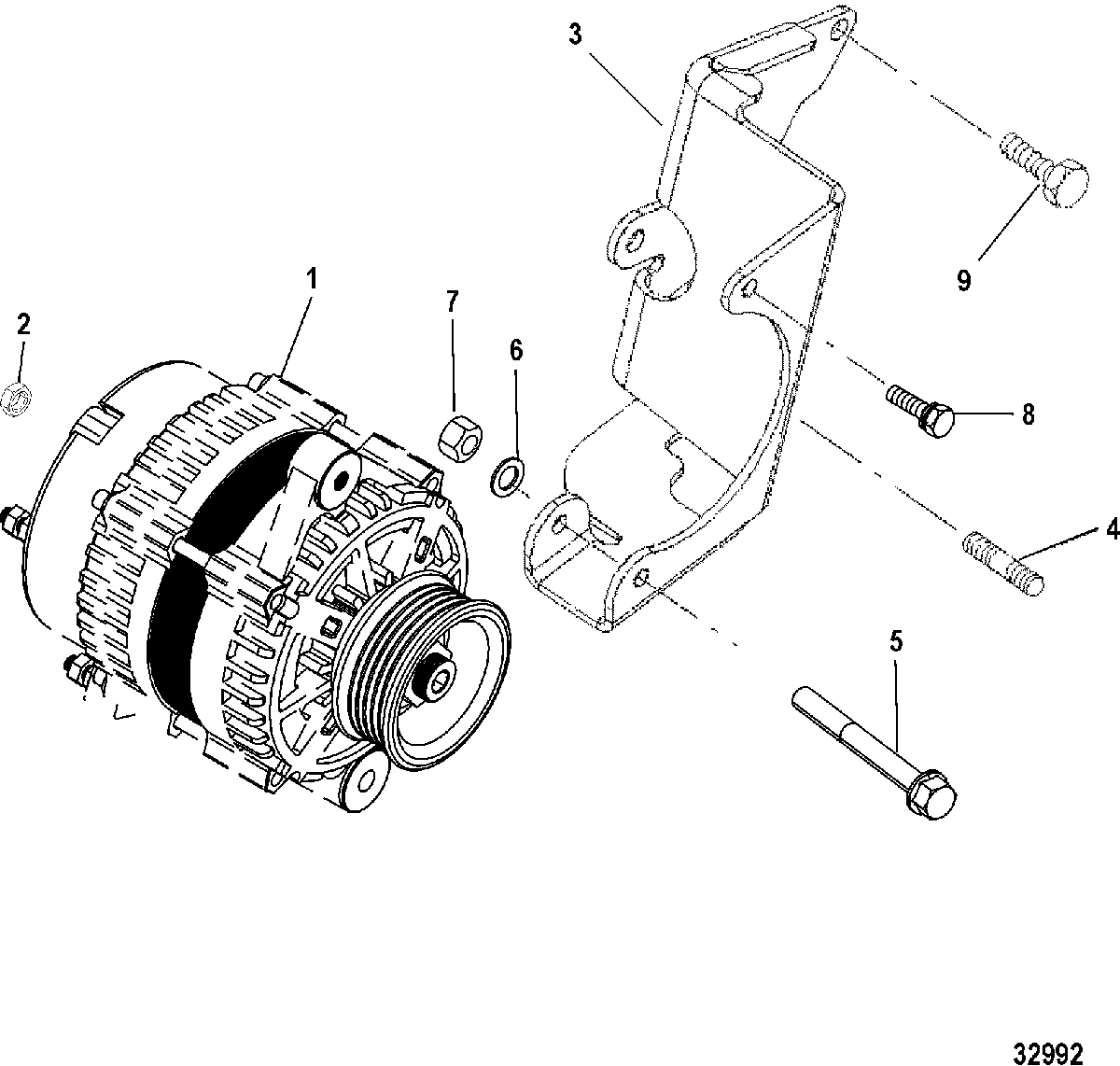

ALTERNATOR AND BRACKET(DELCO) для Mercruiser - 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 1998-2000 0L010003 THRU 0M024330

  • №
    Артикул
    Название
  • 1
    862031T1 ALTERNATOR ASSEMBLY (65 Amp)
    (Non Serviceable - Replace Complete Assembly)
    ALTERNATOR ASSEMBLY (65 Amp)
    (Non Serviceable - Replace Complete Assembly)
  • 2
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 3
    862050T BRACKET, Alternator
    BRACKET, Alternator
  • 4
    16-806591 STUD, (7/16-14), Alternator & Seawater Pump Bracket
    STUD, (7/16-14), Alternator & Seawater Pump Bracket
  • 5
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 6
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 7
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 8
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 9
    10-17965 SCREW, (.437-14 x .70)
    SCREW, (.437-14 x .70)
  • NS
    84-862078T1 HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
