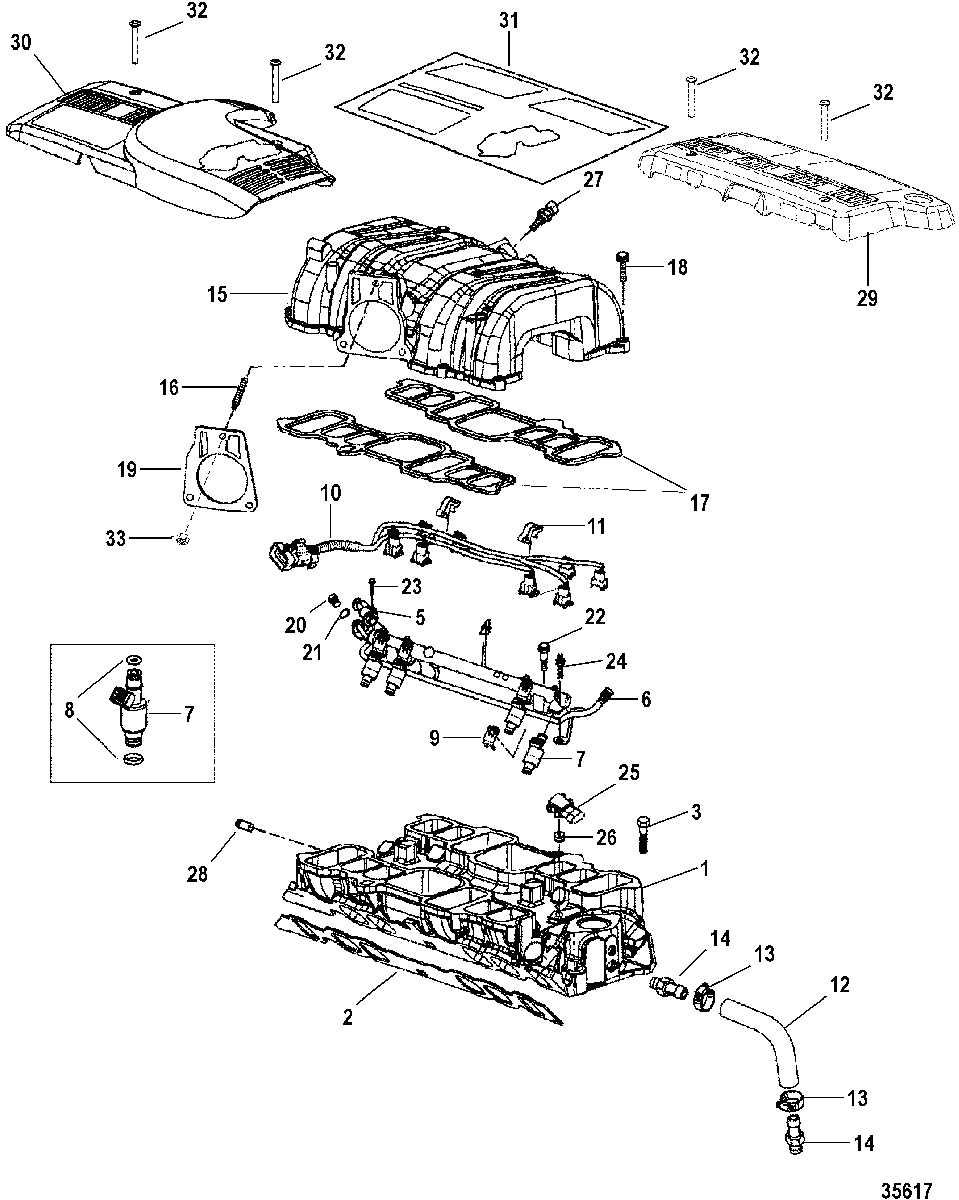

INTAKE MANIFOLD AND INTAKE PLENUM для Mercruiser - 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 1998-2000 0L010003 THRU 0M024330

  • №
    Артикул
    Название
  • 1
    802552T MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 2
    27-803184 GASKET SET
    GASKET SET
  • 3
    10-802655 SCREW
    SCREW
  • 4
    802629 FUEL RAIL ASSEMBLY
    FUEL RAIL ASSEMBLY
  • 5
    8M0069803 REGULATOR, Fuel Pressure
    REGULATOR, Fuel Pressure
  • N.S.
    25-802636 SEAL KIT, Pressure Regulator
    SEAL KIT, Pressure Regulator
  • 6
    22-802631 VALVE AND CAP KIT
    VALVE AND CAP KIT
  • 7
    802632T INJECTOR, Fuel
    INJECTOR, Fuel
  • 8
    25-8M0064191 O-RING KIT
    O-RING KIT
  • 9
    54-802634 CLIP KIT, Injector
    CLIP KIT, Injector
  • 10
    84-802635 HARNESS ASSEMBLY, Fuel Injector
    HARNESS ASSEMBLY, Fuel Injector
  • 11
    54-802637 CLIP
    CLIP
  • 12
    32-8059871 HOSE, Water Pump To Intake Manifold
    HOSE, Water Pump To Intake Manifold
  • 13
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 14
    22-806242 CONNECTOR
    CONNECTOR
  • 15
    802551 PLENUM, Intake
    PLENUM, Intake
  • 16
    16-8M0077391 STUD
    STUD
  • 17
    27-802657 GASKET SET
    GASKET SET
  • 18
    10-802656 SCREW
    SCREW
  • 19
    27-807672 GASKET, TBU Relocator Tube
    GASKET, TBU Relocator Tube
  • 20
    22-861041 PLUG, Fuel Rail
    PLUG, Fuel Rail
  • 21
    25-861397 O-RING
    O-RING
  • 22
    10-802659 SCREW
    SCREW
  • 23
    10-14070 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 24
    16-802658 STUD
    STUD
  • 25
    8M0054726 SENSOR ASSEMBLY, Manifold Air Pressure
    SENSOR ASSEMBLY, Manifold Air Pressure
  • 26
    26-805412 SEAL
    SEAL
  • 27
    805223T SENSOR
    SENSOR
  • 28
    NSS NOT SOLD SEPARATE, FITTING, BARBED (TO FUEL PRESSURE REGULATORS)
    NOT SOLD SEPARATE, FITTING, BARBED (TO FUEL PRESSURE REGULATORS)
  • 29
    861122 COVER, Port
    COVER, Port
  • 30
    861123 COVER ASSEMBLY, Starboard
    COVER ASSEMBLY, Starboard
  • 31
    37-879150A81 DECAL SET
    DECAL SET
  • 32
    10-805390 SCREW, (.312-18 x 2.250)
    SCREW, (.312-18 x 2.250)
  • 33
    11-802751 NUT
    NUT
  • -
    27-802567A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
