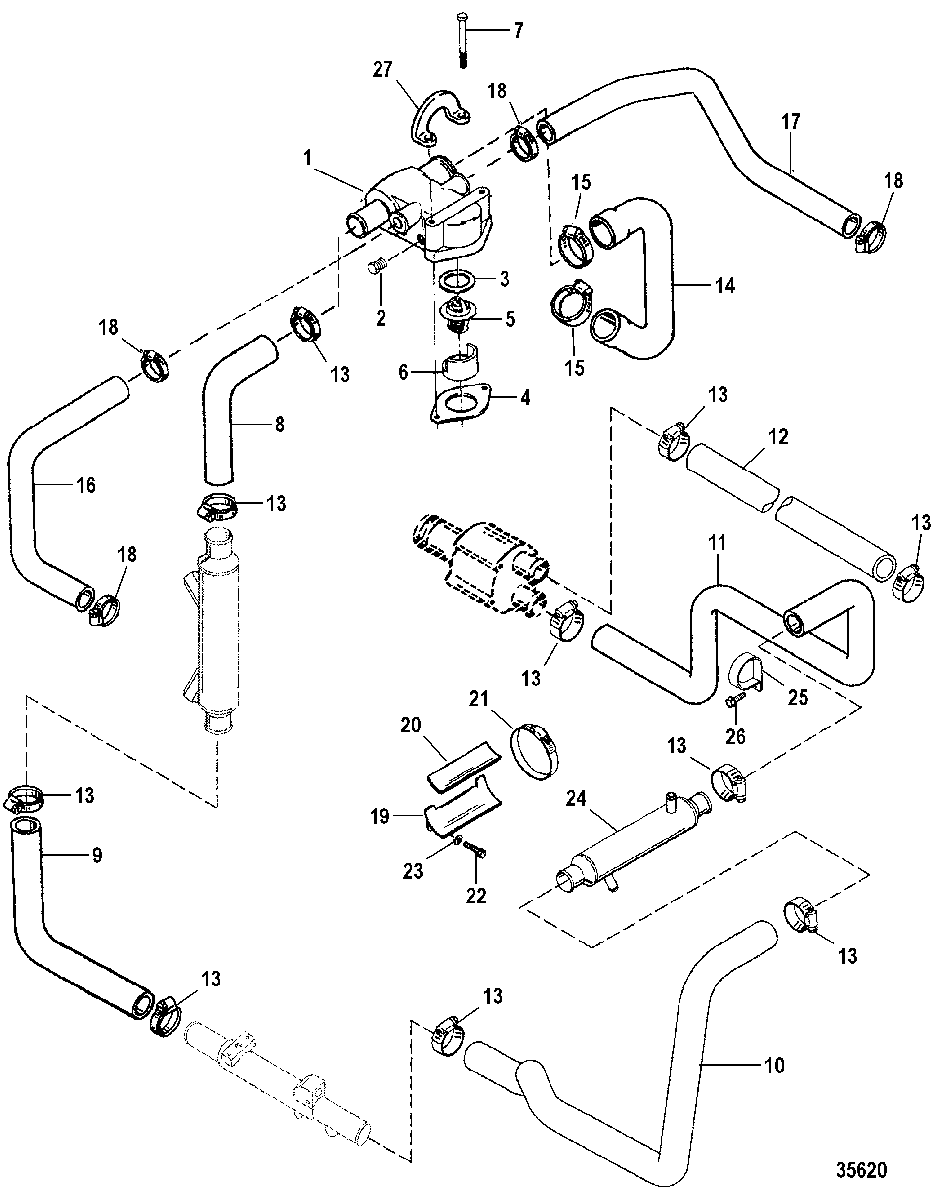

STANDARD COOLING SYSTEM для Mercruiser - 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 1998-2000 0L010003 THRU 0M024330

  • №
    Артикул
    Название
  • 1
    8M0061381 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET
    GASKET
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71DegreeC (160 Degree F)
    THERMOSTAT, 71DegreeC (160 Degree F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-35787 SCREW, (.375-16 x 2.250)
    SCREW, (.375-16 x 2.250)
  • 8
    32-8074073 HOSE
    HOSE
  • 9
    32-71613 HOSE
    HOSE
  • 10
    32-808045 HOSE, Fuel Cooler to Transmission Oil Cooler
    HOSE, Fuel Cooler to Transmission Oil Cooler
  • 11
    32-808044 HOSE, Molded
    HOSE, Molded
  • 12
    32-8M0062666 HOSE, (96.00 Inches Bulk) (38 IN.)
    HOSE, (96.00 Inches Bulk) (38 IN.)
  • 13
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 14
    32-861183 HOSE
    HOSE
  • 15
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 16
    32-897491 HOSE
    HOSE
  • 17
    32-861318 HOSE
    HOSE
  • 18
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 19
    805546A2 BRACKET, Oil Cooler
    BRACKET, Oil Cooler
  • 20
    772233 PAD
    PAD
  • 21
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 22
    10-816585 SCREW, (.375-18 x .875)
    Metal Cooler
    SCREW, (.375-18 x .875)
    Metal Cooler
  • 22
    10-8M2016106 SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
    SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
  • 23
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 24
    8M0125855 COOLER
    COOLER
  • 25
    54-47715 CLIP
    CLIP
  • 26
    10-35765A1 SCREW AND LOCKWASHER, (.312-18 x .625)
    SCREW AND LOCKWASHER, (.312-18 x .625)
  • 27
    12552 LIFTING EYE
    LIFTING EYE
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • -
    27-802567A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
