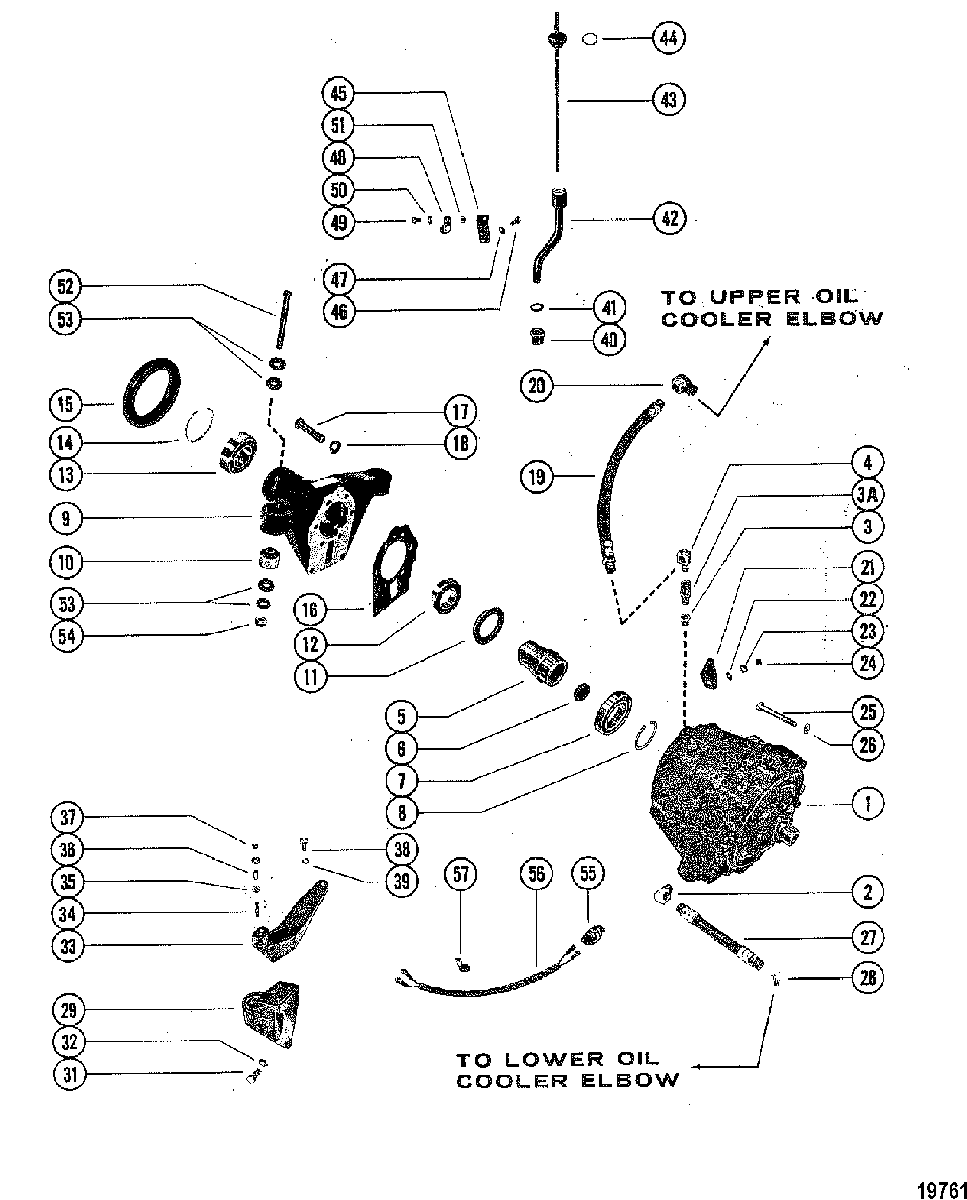

Transmission Assembly(S/N-5670316 & Below) для Mercruiser - 460 TRS GM 482 V-8 1983-1986 4179554 THRU 6181046
-
№АртикулНазвание
-
147754A9 TRANSMISSION ASSEMBLYTRANSMISSION ASSEMBLY
-
222-47629 ELBOW, 90 Degree, TRANSMISSION TO OIL HOSEELBOW, 90 Degree, TRANSMISSION TO OIL HOSE
-
323-36159 BUSHING, REDUCER - TRANSMISSION ELBOWBUSHING, REDUCER - TRANSMISSION ELBOW
-
322-88517A1 FITTING, EXTENSIONFITTING, EXTENSION
-
422-47631 ELBOW, TRANSMISSION TO OIL BASEELBOW, TRANSMISSION TO OIL BASE
-
557758A2 COUPLING ASSEMBLY, TRANSMISSIONCOUPLING ASSEMBLY, TRANSMISSION
-
619-47463 EXPANSION PLUG, EXPANSION - ENGINE COUPLINGEXPANSION PLUG, EXPANSION - ENGINE COUPLING
-
730-47470 BEARING, Ball, ENGINE COUPLINGBEARING, Ball, ENGINE COUPLING
-
853-47469 RING, SNAP - BALL BEARING TO ENGINE COUPLINGRING, SNAP - BALL BEARING TO ENGINE COUPLING
-
998322A2 TAILSTOCK ASSEMBLY, BEARING SUPPORTTAILSTOCK ASSEMBLY, BEARING SUPPORT
-
1035852 MOUNT, RUBBER - TAILSTOCKMOUNT, RUBBER - TAILSTOCK
-
1126-47465 SEAL, Oil, TAILSTOCKSEAL, Oil, TAILSTOCK
-
1230-57762T BEARING, Ball (3.156), TAILSTOCK (3-5/32" O.D.)BEARING, Ball (3.156), TAILSTOCK (3-5/32" O.D.)
-
1330-32537T BEARING, Ball (2.843), TAILSTOCK (2-27/32" O.D.)BEARING, Ball (2.843), TAILSTOCK (2-27/32" O.D.)
-
1453-54481 RING, SNAP - BALL BEARING TO TAILSTOCKRING, SNAP - BALL BEARING TO TAILSTOCK
-
1525-54067 SEAL, TAILSTOCKSEAL, TAILSTOCK
-
1627-47903 GASKET, TAILSTOCKGASKET, TAILSTOCK
-
1710-29081 SCREW, (.437-14 x 1.250), TAILSTOCK TO TRANSMISSIONSCREW, (.437-14 x 1.250), TAILSTOCK TO TRANSMISSION
-
1710-54847 SCRW, TAILSTOCK TO TRANSMISSION (2")SCRW, TAILSTOCK TO TRANSMISSION (2")
-
1710-47462 SCREW, (.437-14 x 1.250), TAILSTOCK TO TRANSMISSIONSCREW, (.437-14 x 1.250), TAILSTOCK TO TRANSMISSION
-
1813-30381 LOCKWASHER, Hi Collar (.437), TAILSTOCK SCREWLOCKWASHER, Hi Collar (.437), TAILSTOCK SCREW
-
1813-32993 LOCKWASHER, (.437), TAILSTOCK SCREWLOCKWASHER, (.437), TAILSTOCK SCREW
-
1932-4751612 HOSE, TRANSMISSION TO OIL COOLER (15")HOSE, TRANSMISSION TO OIL COOLER (15")
-
2022-47630 ELBOW, 90 Degree, TRANSMISSION HOSEELBOW, 90 Degree, TRANSMISSION HOSE
-
2112128 LEVER, SHIFT - TRANSMISSIONLEVER, SHIFT - TRANSMISSION
-
2212-20722 WASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSIONWASHER, (.328 x .625 x .060), SHIFT LEVER TO TRANSMISSION
-
2313-26993 LOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSIONLOCKWASHER, (.312), SHIFT LEVER TO TRANSMISSION
-
2411-22053 NUT, (5/16-24), SHIFT LEVER TO TRANSMISSIONNUT, (5/16-24), SHIFT LEVER TO TRANSMISSION
-
2510-60179 SCREW, (.437-14 x 3.500), TRANSMISSION TO ENGINESCREW, (.437-14 x 3.500), TRANSMISSION TO ENGINE
-
2613-32993 LOCKWASHER, (.437), TRANSMISSION SCREWLOCKWASHER, (.437), TRANSMISSION SCREW
-
2732-475163 HOSE, TRANSMISSION TO OIL COOLER (7-7/8")HOSE, TRANSMISSION TO OIL COOLER (7-7/8")
-
2822-47630 ELBOW, 90 Degree, HOSE TO OIL COOLERELBOW, 90 Degree, HOSE TO OIL COOLER
-
2993662 BRACKET ASSEMBLY, TRANSMISSION MOUNT
(STARBOARD)BRACKET ASSEMBLY, TRANSMISSION MOUNT
(STARBOARD) -
2993664 BRACKET ASSEMBLY, TRANSMISSION MOUNT
(PORT)BRACKET ASSEMBLY, TRANSMISSION MOUNT
(PORT) -
3110-47462 SCREW, (.437-14 x 1.250), MOUNT BRACKET TO TRANSMISSIONSCREW, (.437-14 x 1.250), MOUNT BRACKET TO TRANSMISSION
-
3213-32993 LOCKWASHER, (.437), MOUNT BRACKET SCREWLOCKWASHER, (.437), MOUNT BRACKET SCREW
-
3347335A1 BRACKET ASSEMBLY, SHIFT SUPPORTBRACKET ASSEMBLY, SHIFT SUPPORT
-
3416-728091 STUD, (.250-20/.250-28 x 1.620)STUD, (.250-20/.250-28 x 1.620)
-
3512-69056 WASHER, (.255 x .625 x .0312), SHIFT SUPPORT BRACKET STUDWASHER, (.255 x .625 x .0312), SHIFT SUPPORT BRACKET STUD
-
3623-31866 SPACER, (.256 x .313 x .625), SHIFT SUPPORT BRACKET STUDSPACER, (.256 x .313 x .625), SHIFT SUPPORT BRACKET STUD
-
3711-826709109 NUT, (.250-28), SHIFT SUPPORT BRACKET STUDNUT, (.250-28), SHIFT SUPPORT BRACKET STUD
-
3810-35386 SCREW, (.312-18 x 1.00), SHIFT SUPPORT BRACKETSCREW, (.312-18 x 1.00), SHIFT SUPPORT BRACKET
-
3913-26993 LOCKWASHER, (.312), SHIFT SUPPORT BRACKET SCREWLOCKWASHER, (.312), SHIFT SUPPORT BRACKET SCREW
-
4048461 ADAPTOR, OIL LEVEL GAUGE TUBE TO TRANSMISSIONADAPTOR, OIL LEVEL GAUGE TUBE TO TRANSMISSION
-
4125-48462 O-RING, (.614 x .070), OIL LEVEL TUBE ADAPTORO-RING, (.614 x .070), OIL LEVEL TUBE ADAPTOR
-
4248463 TUBE, DipstickTUBE, Dipstick
-
4348464 DIPSTICK, OIL LEVELDIPSTICK, OIL LEVEL
-
4425-35276 O-RING, (.734 x .139), OIL LEVEL GAUGEO-RING, (.734 x .139), OIL LEVEL GAUGE
-
4610-32417 SCREW, (.250-28 x .625), MOUNT, BRACKETSCREW, (.250-28 x .625), MOUNT, BRACKET
-
4713-26992 LOCKWASHER, (.250) Stainless Steel, OIL LEVEL GAUGE TUBE CLAMPLOCKWASHER, (.250) Stainless Steel, OIL LEVEL GAUGE TUBE CLAMP
-
4854-859172 CLAMP, OIL LEVEL GAUGE TUBE TO MOUNTING BRACKETCLAMP, OIL LEVEL GAUGE TUBE TO MOUNTING BRACKET
-
4910-69028 SCREW, (.250-28 x .750) Stainless Steel, OIL LEVEL GAUGE TUBE CLAMPSCREW, (.250-28 x .750) Stainless Steel, OIL LEVEL GAUGE TUBE CLAMP
-
5012-29245 WASHER, (.281 x .500 x .060) Stainless Steel, OIL LEVEL GAUGE TUBE CLAMP SCREWWASHER, (.281 x .500 x .060) Stainless Steel, OIL LEVEL GAUGE TUBE CLAMP SCREW
-
5111-8267089 NUT, (.250-28), OIL LEVEL GAUGE TUBE CLAMP SCREWNUT, (.250-28), OIL LEVEL GAUGE TUBE CLAMP SCREW
-
5210-47467 SCREW, (.625-18 x 5.500), TAILSTOCK TO INNER TRANSOM PLATESCREW, (.625-18 x 5.500), TAILSTOCK TO INNER TRANSOM PLATE
-
5312-47475 WASHER, (1.120 x 2.250 x .19)WASHER, (1.120 x 2.250 x .19)
-
5312-47466 WASHER, (1.125 x 1.750 x .16)
(NEOPRENE)WASHER, (1.125 x 1.750 x .16)
(NEOPRENE) -
5312-33171 WASHER, (.6406 x 1.750 x .125)WASHER, (.6406 x 1.750 x .125)
-
5313-34846 LOCKWASHER, Thackeray Spring (.636)LOCKWASHER, Thackeray Spring (.636)
-
5411-22339 NUT, (.625-18)NUT, (.625-18)
-
5547613 SWITCH, NEUTRAL SAFETYSWITCH, NEUTRAL SAFETY
-
5684-73125A1 WIRE ASSEMBLY, NEUTRAL SAFETYWIRE ASSEMBLY, NEUTRAL SAFETY
-
5754-47483 J CLIP, NEUTRAL SAFETY HARNESSJ CLIP, NEUTRAL SAFETY HARNESS
