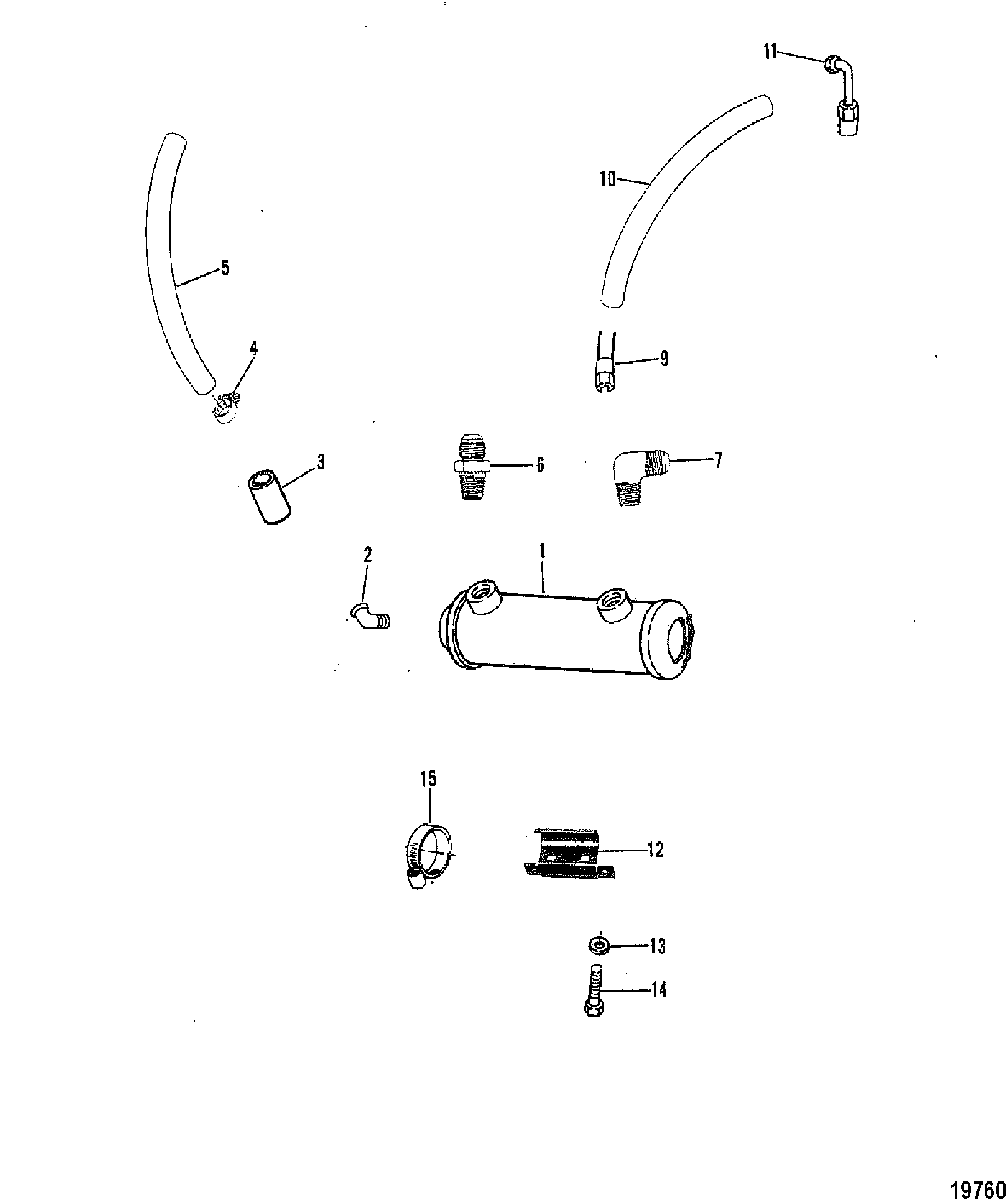

Remote Engine Oil Cooler(Use With Single Oil Cooler) для Mercruiser - 460 TRS GM 482 V-8 1983-1986 4179554 THRU 6181046

  • №
    Артикул
    Название
  • 1
    70886T2 COOLER, Oil
    COOLER, Oil
  • 2
    22-61168 ELBOW (1") - 90 DEGREES
    ELBOW (1") - 90 DEGREES
  • 3
    22-61169 CONNECTOR (1")
    CONNECTOR (1")
  • 4
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 5
    32-612268 HOSE, WATER
    HOSE, WATER
  • 6
    22-71924 CONNECTOR, STRAIGHT
    CONNECTOR, STRAIGHT
  • 7
    22-48871 CONNECTOR, 90 DEGREES
    CONNECTOR, 90 DEGREES
  • 9
    22-49821 FITTING, OIL HOSE - STRAIGHT
    FITTING, OIL HOSE - STRAIGHT
  • 10
    32-49820 HSOE, OIL
    HSOE, OIL
  • 11
    22-61212 FITTING, OIL HOSE - 90 DEGREES
    FITTING, OIL HOSE - 90 DEGREES
  • 12
    49748A1 BRACKET, OIL COOLER
    BRACKET, OIL COOLER
  • 13
    13-35048 LOCKWASHER, (.375), COOLER BRACKET SCREW
    LOCKWASHER, (.375), COOLER BRACKET SCREW
  • 14
    10-58841 LAG SCREW, (.375-7 x 2.00), OIL COOLER BRACKET
    LAG SCREW, (.375-7 x 2.00), OIL COOLER BRACKET
  • 15
    54-815504228 CLAMP, OIL COOLER TO BRACKET
    CLAMP, OIL COOLER TO BRACKET
