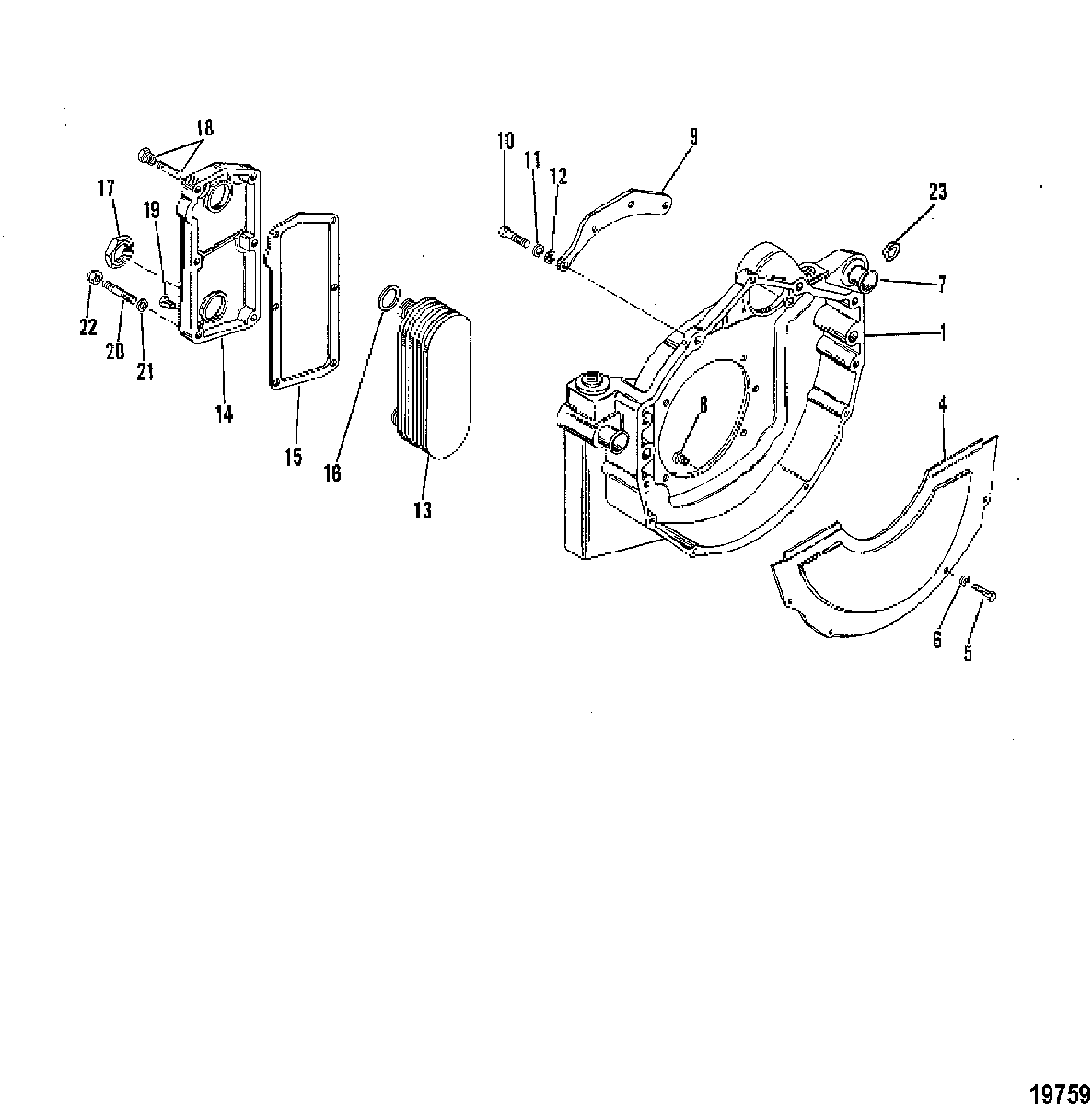

Flywheel Housing(Dual Cooler) для Mercruiser - 460 TRS GM 482 V-8 1983-1986 4179554 THRU 6181046

  • №
    Артикул
    Название
  • 1
    95165 HOUSING, Flywheel (W/O REAR PLATE MOUNT)
    HOUSING, Flywheel (W/O REAR PLATE MOUNT)
  • 1
    98096T HOUSING, Flywheel (W/REAR PLATE MOUNT)
    HOUSING, Flywheel (W/REAR PLATE MOUNT)
  • 4
    47542 COVER, FLYWHEEL HOUSING
    (Not used on Staggered Installation)
    COVER, FLYWHEEL HOUSING
    (Not used on Staggered Installation)
  • 5
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, COVER TO HOUSING
    (Not used on Staggered Installation)
    SCREW, (.250-20 x .620) Stainless Steel, COVER TO HOUSING
    (Not used on Staggered Installation)
  • 5
    10-85486 SCREW, (.250-20 x .380) Stainless Steel (1/4' -20 X 3/8") (#10-85486)
    (Not used on Staggered Installation)
    SCREW, (.250-20 x .380) Stainless Steel (1/4' -20 X 3/8") (#10-85486)
    (Not used on Staggered Installation)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel, COVER SCREW
    (Not used on Staggered Installation)
    LOCKWASHER, (.250) Stainless Steel, COVER SCREW
    (Not used on Staggered Installation)
  • 7
    23-47511 SLEEVE
    (440/460-Quantity is 1)
    SLEEVE
    (440/460-Quantity is 1)
  • 8
    22-328022 PLUG, Pipe (.125-27), DRAIN - FLYWHEEL HOUSING
    PLUG, Pipe (.125-27), DRAIN - FLYWHEEL HOUSING
  • 9
    97165 BRACKET, ELECTRICAL MOUNTING
    BRACKET, ELECTRICAL MOUNTING
  • 10
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 10
    10-98261 SCREW, (.375-16 x .75)
    SCREW, (.375-16 x .75)
  • 10
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 10
    10-63826 SCREW, (.375-16 x 2.50)
    SCREW, (.375-16 x 2.50)
  • 11
    13-35048 LOCKWASHER, (.375), HOUSING SCREW
    LOCKWASHER, (.375), HOUSING SCREW
  • 11
    12-20553 WASHER, (.406 x .734 x .063), HOUSING SCREW
    WASHER, (.406 x .734 x .063), HOUSING SCREW
  • 12
    12-33181 WASHER, (.375 x .812 x .062) Copper, SEALING - HOUSING SCREW
    WASHER, (.375 x .812 x .062) Copper, SEALING - HOUSING SCREW
  • 13
    47610A15 COOLER, OIL
    COOLER, OIL
  • 14
    94911A2 COVER ASSEMBLY, OIL COOLER
    (Right Side)
    COVER ASSEMBLY, OIL COOLER
    (Right Side)
  • 14
    94910 COVER, OIL COOLER
    (Left Side)
    COVER, OIL COOLER
    (Left Side)
  • 15
    27-47495 GASKET, OIL COOLER COVER
    (Right Side)
    GASKET, OIL COOLER COVER
    (Right Side)
  • 15
    27-821602 GASKET, OIL COOLER COVER
    (Left Side)
    GASKET, OIL COOLER COVER
    (Left Side)
  • 16
    25-864701 O-RING, (1.112 x .103), SEAL - OIL COOLER
    O-RING, (1.112 x .103), SEAL - OIL COOLER
  • 17
    11-47521 NUT, (1.125-12), JAM - OIL COOLER
    NUT, (1.125-12), JAM - OIL COOLER
  • 18
    97-806000 PLUG, Zinc Electrode, OIL COOLER
    PLUG, Zinc Electrode, OIL COOLER
  • 19
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 20
    16-46857 STUD, (5/16 x 1-7/8), COOLER COVER
    STUD, (5/16 x 1-7/8), COOLER COVER
  • 21
    12-36533 WASHER, (.328 x .562 x .0312) Copper, SEALING
    WASHER, (.328 x .562 x .0312) Copper, SEALING
  • 21
    12-22753 WASHER, COOLER COVER NUT
    WASHER, COOLER COVER NUT
  • 22
    11-82670911 NUT, (.312-24) Stainless Steel, COOLER COVER
    NUT, (.312-24) Stainless Steel, COOLER COVER
  • 23
    19-70517 PLUG, EXPANSION
    (440/460)
    PLUG, EXPANSION
    (440/460)
  • -
    27-47410A1 GASKET SET
    (370/400)
    GASKET SET
    (370/400)
  • -
    27-99386A2 GASKET SET
    (440/460)
    GASKET SET
    (440/460)
