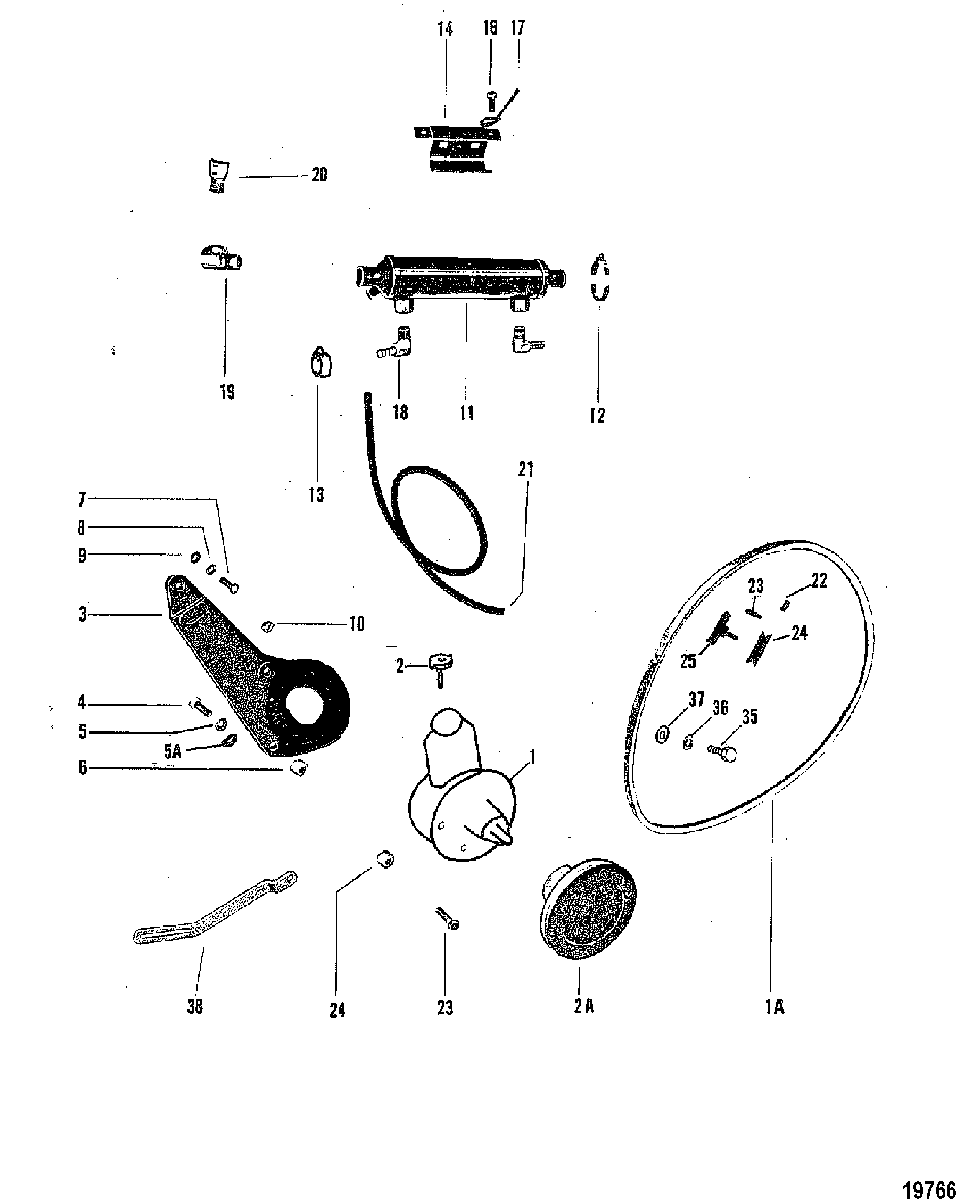

Power Steering Components для Mercruiser - 460 TRS GM 482 V-8 1983-1986 4179554 THRU 6181046

  • №
    Артикул
    Название
  • 1
    90507A5 PUMP ASSEMBLY, Power-Assisted Steering
    PUMP ASSEMBLY, Power-Assisted Steering
  • 2
    36-95805 CAP, FILLER-PUMP
    CAP, FILLER-PUMP
  • 1
    57-42516Q V BELT, POWER STEERING PUMP
    (370/400/440)
    V BELT, POWER STEERING PUMP
    (370/400/440)
  • 1
    57-77379 V BELT, POWER STEERING PUMP
    (460)
    V BELT, POWER STEERING PUMP
    (460)
  • 2
    896441 PULLEY, STEERING PUMP
    PULLEY, STEERING PUMP
  • 3
    57436T1 BRACKET, PUMP MOUNTING
    BRACKET, PUMP MOUNTING
  • 4
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 4
    10-98261 SCREW, (.375-16 x .75)
    SCREW, (.375-16 x .75)
  • 4
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 5
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 5
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 5
    12-26168 WASHER (5/16")
    WASHER (5/16")
  • 6
    23-90523 SPACER, (.420 x .750 x .440) Cad Plate
    SPACER, (.420 x .750 x .440) Cad Plate
  • 7
    10-37269 SCREW, (.437-14 x 2.00), BRACKET TO BLOCK
    SCREW, (.437-14 x 2.00), BRACKET TO BLOCK
  • 7
    10-358701 SCREW, (.375-16 x 2) (3/8" x 2")
    SCREW, (.375-16 x 2) (3/8" x 2")
  • 8
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    12-74758 WASHER (7/16")
    WASHER (7/16")
  • 9
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 10
    11-82671112 NUT, PUMP STUD TO B RACKET
    NUT, PUMP STUD TO B RACKET
  • 11
    92374 COOLER, Oil
    COOLER, Oil
  • 12
    54-815504228 CLAMP, COOLER TO BRACKET
    CLAMP, COOLER TO BRACKET
  • 13
    54-815504104 CLAMP, RETURN HOSE TO FITTING
    CLAMP, RETURN HOSE TO FITTING
  • 14
    49748A1 BRACKET
    BRACKET
  • 16
    10-58841 LAG SCREW, (.375-7 x 2.00)
    LAG SCREW, (.375-7 x 2.00)
  • 17
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 18
    22-70681 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 18
    22-70682 BAYONET FITTING
    BAYONET FITTING
  • 19
    22-61168 ELBOW
    ELBOW
  • 20
    22-61169 CONNECTOR
    CONNECTOR
  • 21
    32-688941 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 22
    10-41355 SET SCREW, (#10-32 x .25)
    SET SCREW, (#10-32 x .25)
  • 23
    28-79780 KEY
    KEY
  • 24
    69400 PULLEY, POWER STEERING
    PULLEY, POWER STEERING
  • 25
    77682 ADAPTOR, POWER STEERING
    ADAPTOR, POWER STEERING
  • 35
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 36
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 38
    58333 BRACE, BELT ADJUSTING
    BRACE, BELT ADJUSTING
